High Power C-Band Satellite Terminal External Connections
Rev. 0 2–7
2.1.2 C-Band SSPA External Connections
WARNING
Always terminate the output waveguide of the amplifier with an RF load
capable of dissipating full CW RF power. Do not look into the output port of
the powered RF amplifier. Severe bodily harm can be the result.
Connections between the C-Band SSPA and other equipment are made through five
connectors. These connectors are listed in Table 2-3, and their locations are shown in
Figure 2-3. The use of each connector is described in the following paragraphs.

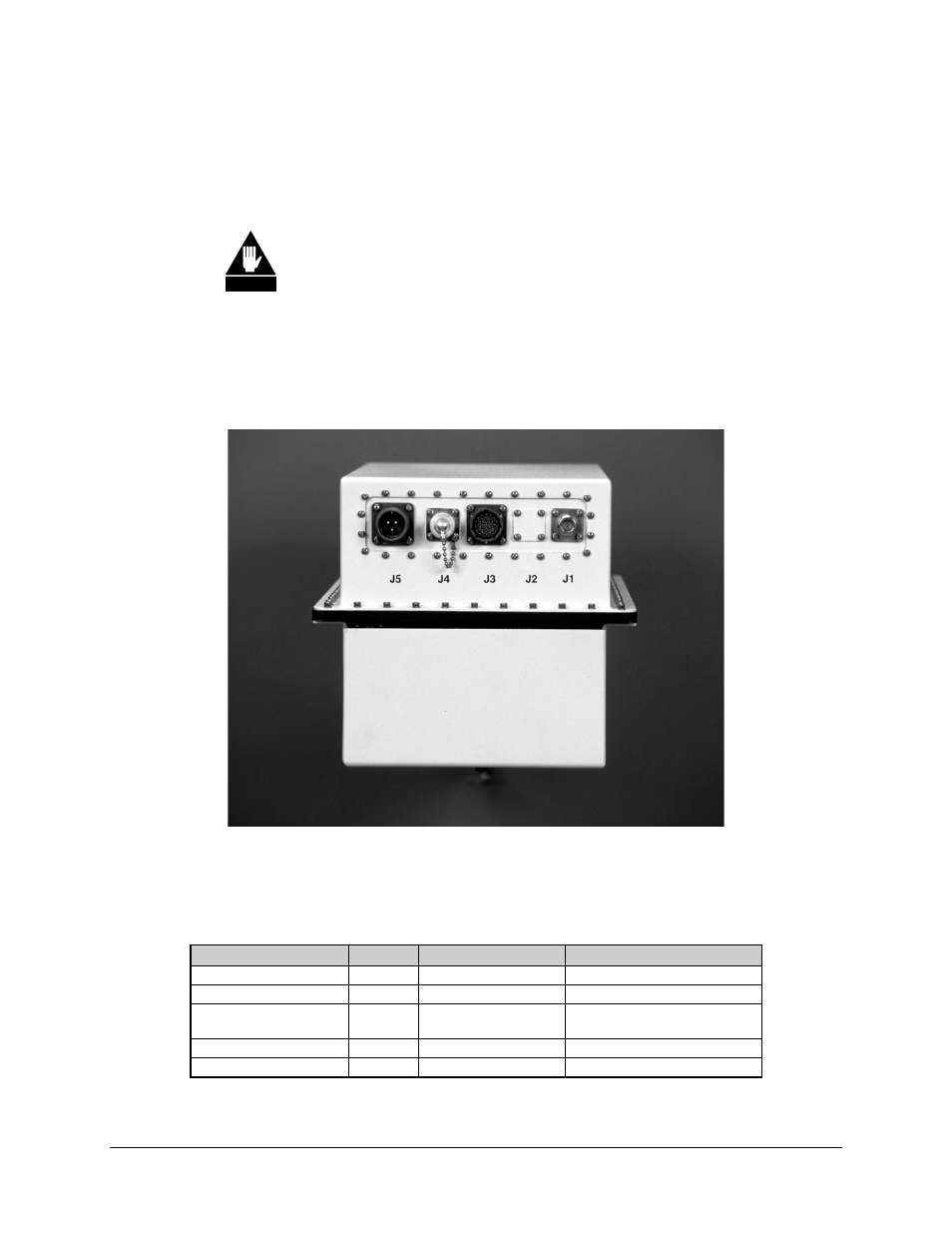

Figure 2-3. C-Band SSPA External Connections
Table 2-3. C-Band SSPA External Connections
Name Ref Des Connector Type Function
RF Input J1 N-Type, female RF Input
Discrete Interface J3 MS3112E16-26P (M) M&C port for RFT500
RF Output Monitor Port J4 N-Type, female Independent M&C of output
power levels (-40 dB coupled)
AC Line J5 MS3102R16-10P (M) Prime Power Supply
RF Output J7 CPR-137G (Grooved) W/G connection
