Operation High-Power C-Band Satellite Terminal
5–2 Rev. 0
5.3 Front Panel Display/Keypad
The optional front panel (Figure 5-1) provides the local user interface, which can be used
to configure and monitor the status of the terminal.

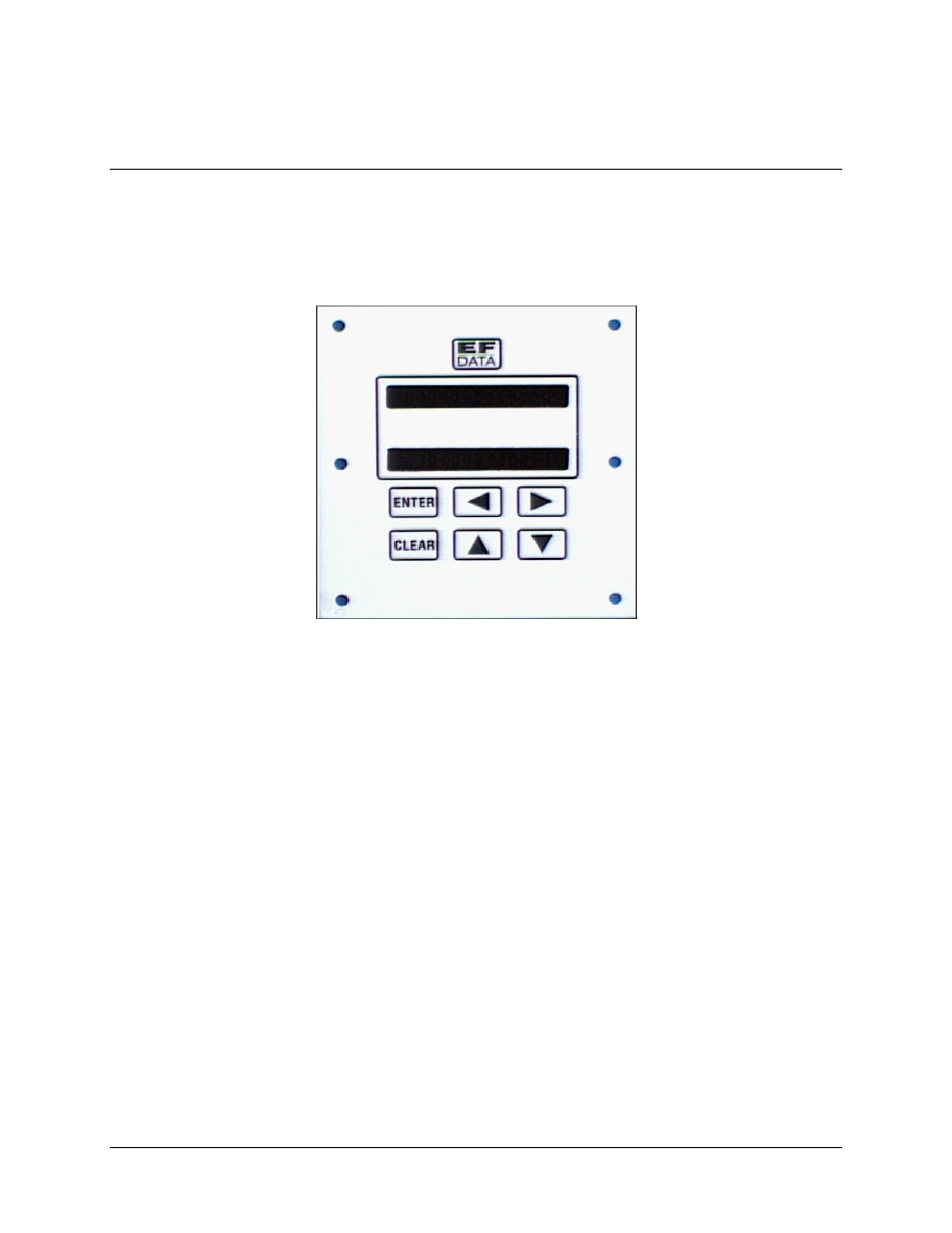

Figure 5-1. Optional RFT-500 Terminal Keypad
The front panel features a 16-character, 2-line LED display and a 6-key keypad. All
functions are accessible at the front panel by entering one of three predefined “SELECT”
categories or levels:
!
Configuration (CONFIG)
!
Monitor
!
Faults
