High-Power C-Band Satellite Terminal Single Thread System Installation
Rev. 0 3–17
5. Position the LNA in place on the antenna, and install the 1/4-20 x 1” bolts,
washers, and nuts as shown in Figure 3-3. Do not tighten at this time.
CAUTION
Install the hardware exactly as shown. Failure to do so may cause
damage to the LNA and/or waveguide.
6. After all the bolts, washers, and nuts have been installed, tighten them according
to the following illustrated sequence.
1
2
3
4
5
6
7
8 9
10

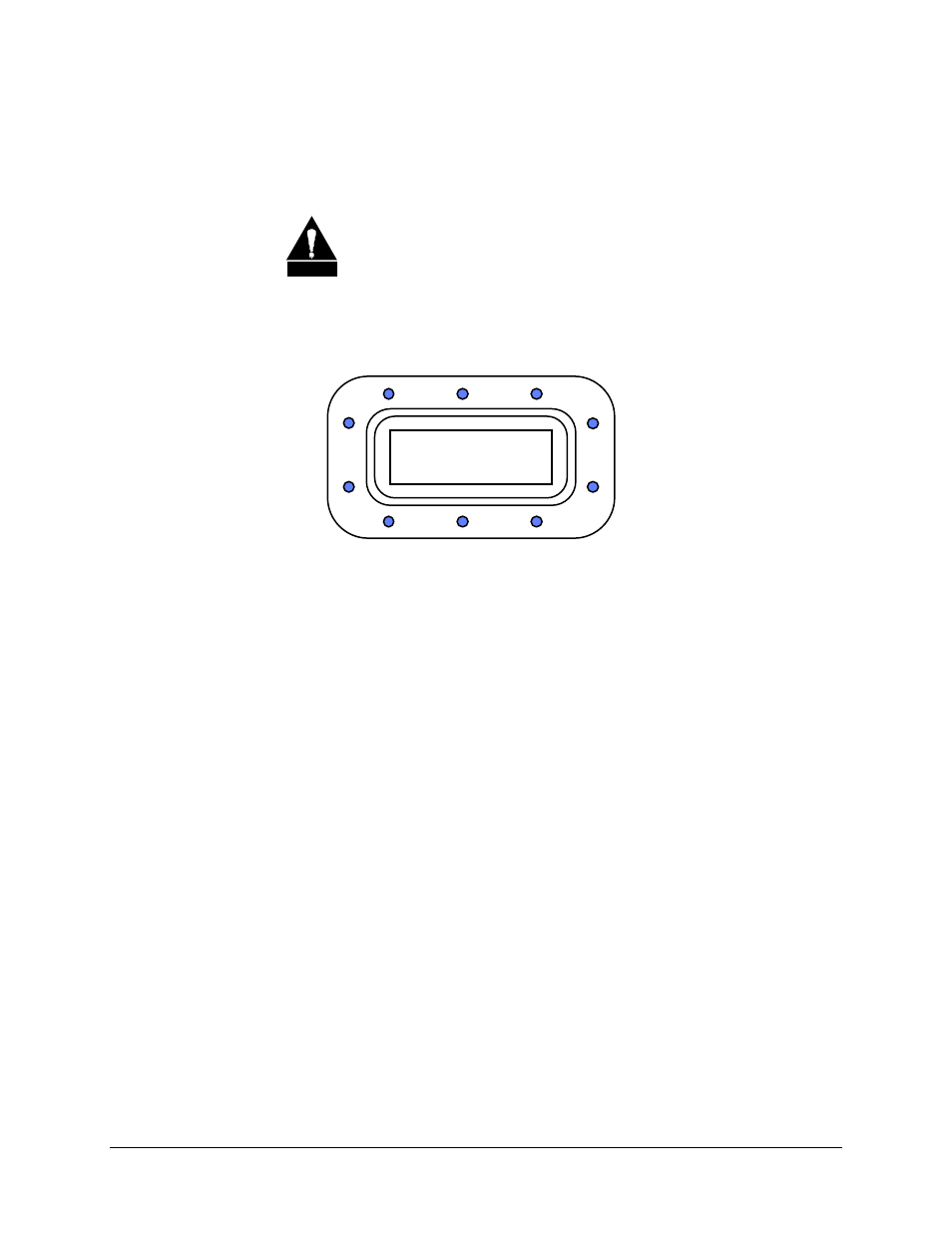

Figure 3-3. Procedures for Tightening the Waveguide Bolts
