Redundant System Installation High-Power C-Band Satellite Terminal
4–14 Rev. 0

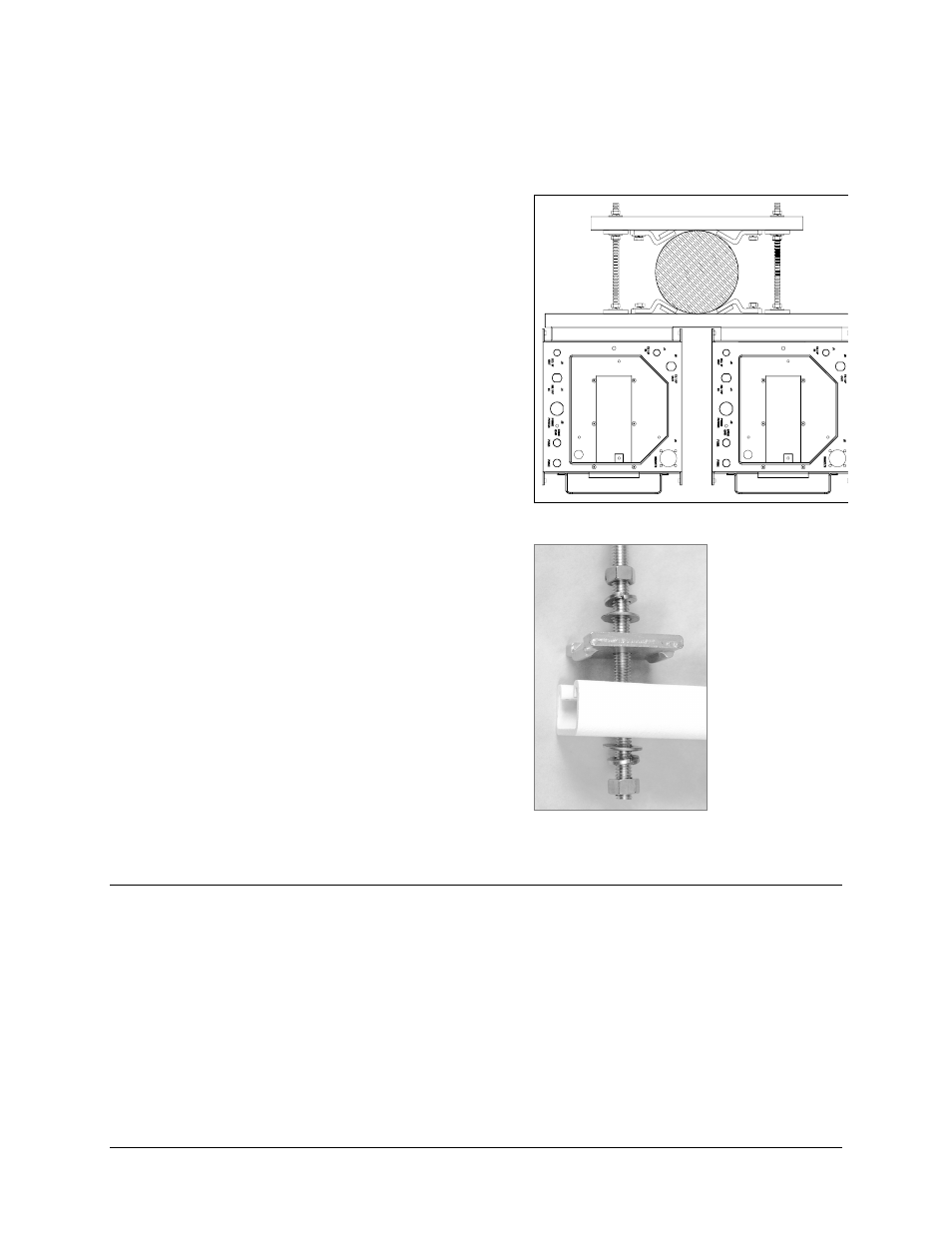

6. Mount the RFTs as follows:
a. Lift the RFT into position on
the vertical pole.
b. Slip a 14” unistrut over each
of pair of threaded rods
(upper and lower).
Note: Install the 14” unistruts
with the open face toward the
pole, as illustrated.
c. Install a 5/16” flat washer,
5/16” split lockwasher, and
5/16-18 nut on each threaded
rod.
d. Position the RFT, as desired,
and tighten the 5/16-18 nuts
installed in Step 6.c.
e. Slide the pipe blocks in until
they contact the vertical pole.
f. Then, firmly tighten the nuts.
4.3.2.2 Square Pole
For square, vertical pole installation, follow the steps in Section 3.3.2.1, with the
following exceptions:
! Do not perform Step 4.
! Do not perform Step 6.e.
