High Power C-Band Satellite Terminal Equipment List
Rev. 0 8–3
8.2 Detail Equipment List
8.2.1 LNA Connector Kit
LNA
ANTENNA
2
5 6
4
7
6
5

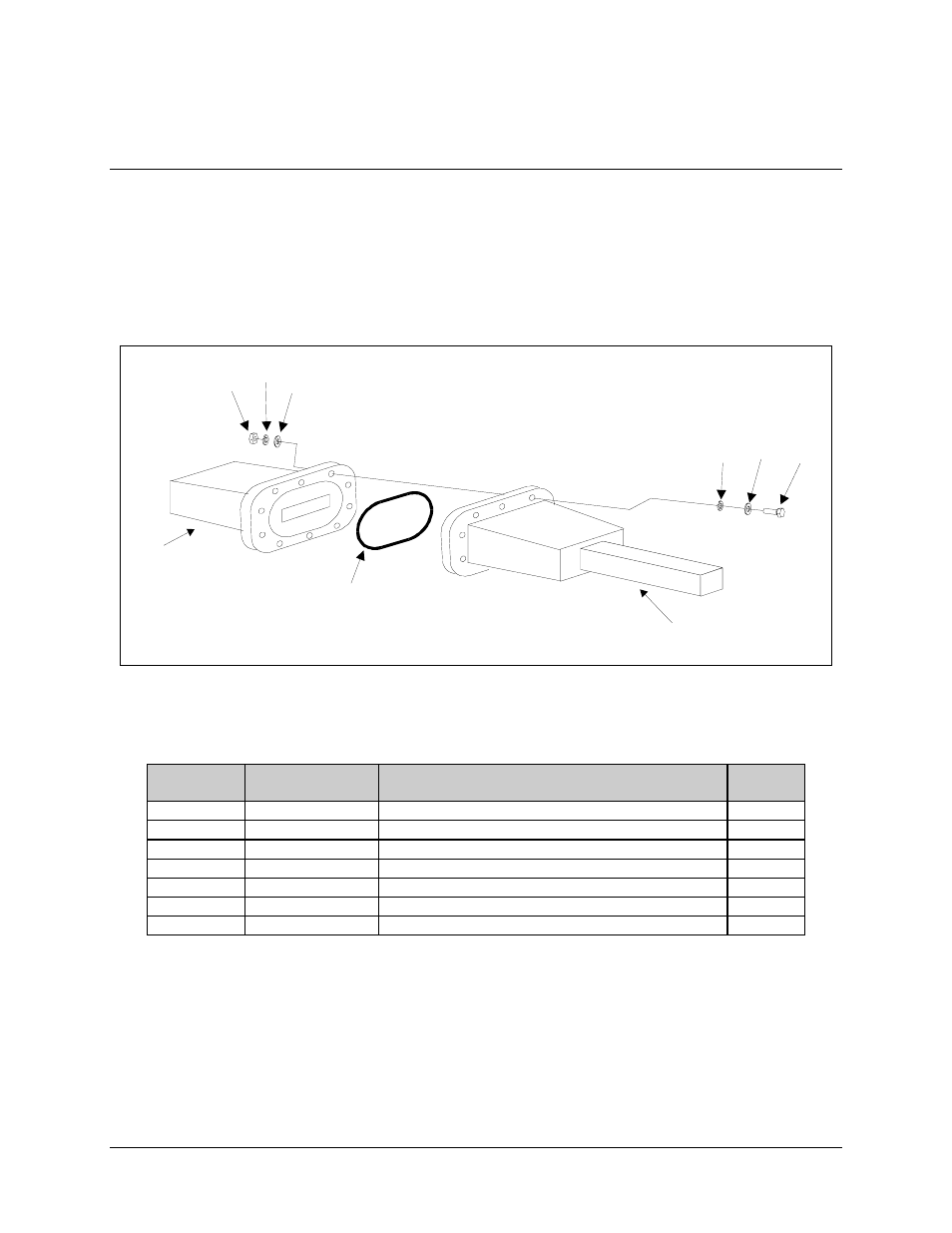

Figure 8-1. Exploded View of a Typical LNA Connector Kit
Fig. &
Item No.
Part No. 1234567 Nomenclature Qty
8-1 -1 KT/2721 Kit, LNA Connector Ref
2 32P1040 . Gasket, Thick (Select at installation) 1
-3 32D1002 . Gasket, Thin (Select at installation) 1
4 03P1079 . Bolt, 1/4-20 x 1” 10
5 04P1022 . Washer, Flat 20
6 HW/1/4-SPLIT . Washer, Spit Lock 20
7 HW/1/4HEXNUT . Nut, 1/4-20 10
-Item Not Illustrated
