Redundant System Installation High-Power C-Band Satellite Terminal
4–8 Rev. 0
4.3.2 Vertical Pole Installation
Refer to Section 8, Equipment List, Figure 8-5, for assistance in the installation of the
RFT. Refer to Figure 8-2 for the cabling configuration.
4.3.2.1 Round Pole
Note: The following process is a typical installation.
Install the RFTs to a round vertical pole as follows:
1. Set the units on their sides, with the mounting holes facing up.
2. Install the 8” unistruts as follows:

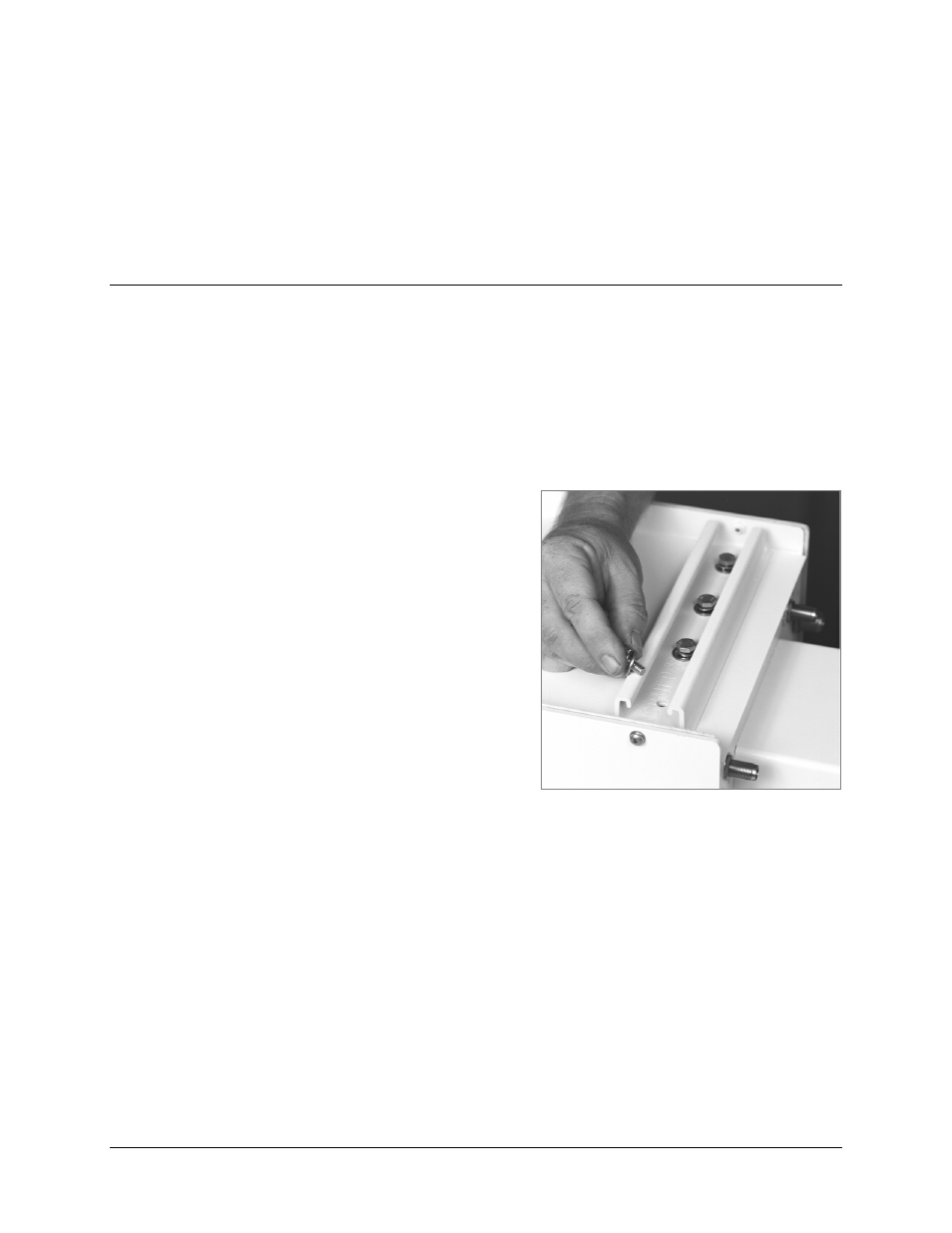

a. Position an 8” unistrut (with
the open side facing up) over
one set of the mounting holes
on the RFT.
b. Using four 1/4-20 x 1” bolts,
1/4” split lockwashers, and
1/4” flat washers, attach an 8”
unistrut to the RFT.
Note: Tighten the bolts firmly.
c. Repeat Steps 2.a. and 2.b. for
each of the remaining 8”
unistruts (four required).
