Single Thread System Installation High-Power C-Band Satellite Terminal
3–18 Rev. 0
3.5 C-Band SSPA Installation
Refer to Section 8, Equipment List, Figure 8-4, for assistance in the installation of the
C-Band SSPA using the Universal Mounting Kit P/N KT/6699. Refer to Figure 8-2
Cabling Configuration for cables necessary to connect the single thread configuration.
3.5.1 C-Band SSPA Installation
At the customer’s discretion, the C-Band SSPA can be installed anywhere on or near the
antenna. The supplied hardware allows the installer a wide range of installation
alternatives, including:
! Vertical pole (e.g., mast) (either square or round). This is the most typical
installation.
! Within the hub of a large antenna.
! Spar (i.e., square bar) on the antenna structure.

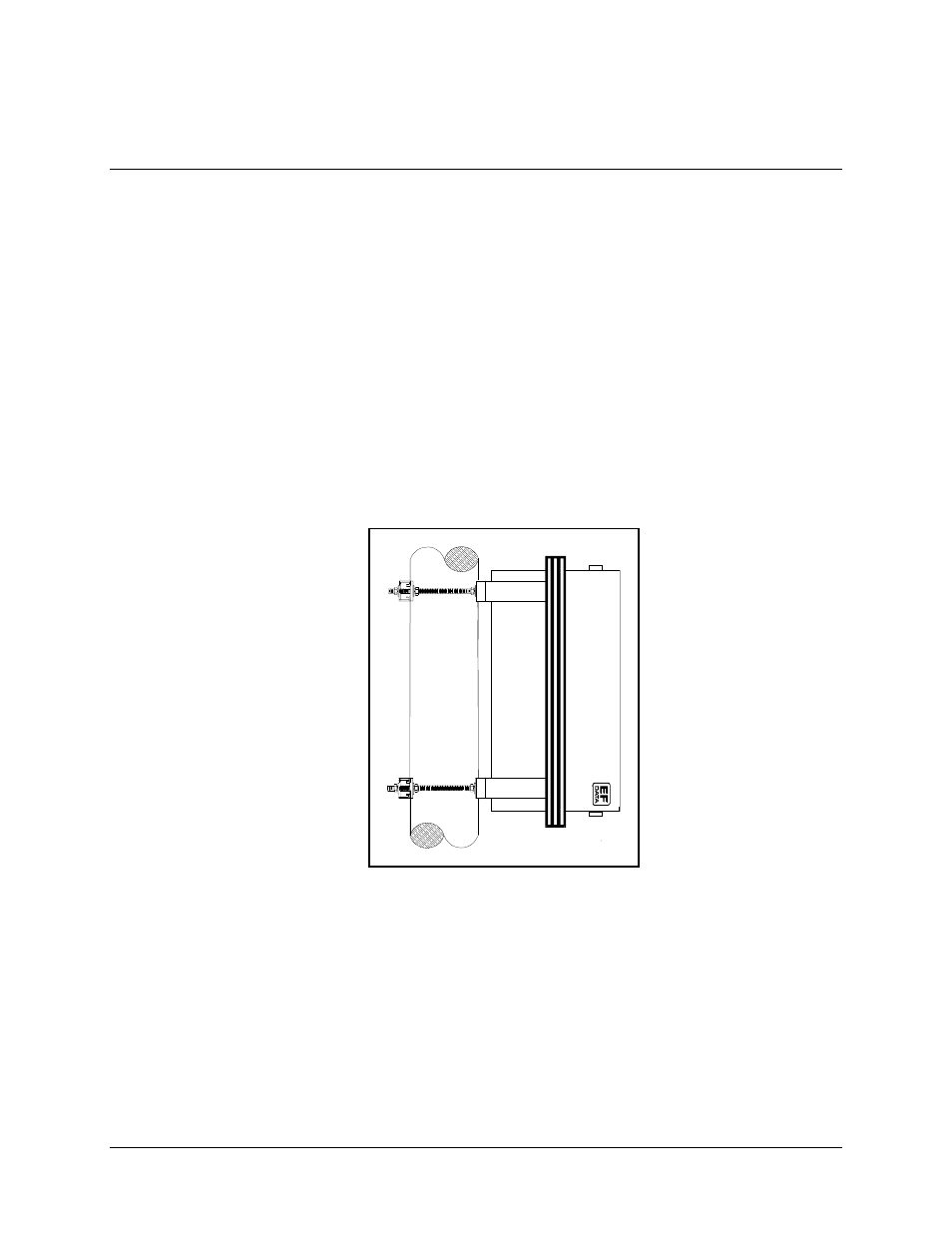

Note: EFData recommends that the C-Band SSPA be mounted either vertically,
as shown, or with the fan assembly facing the ground.
