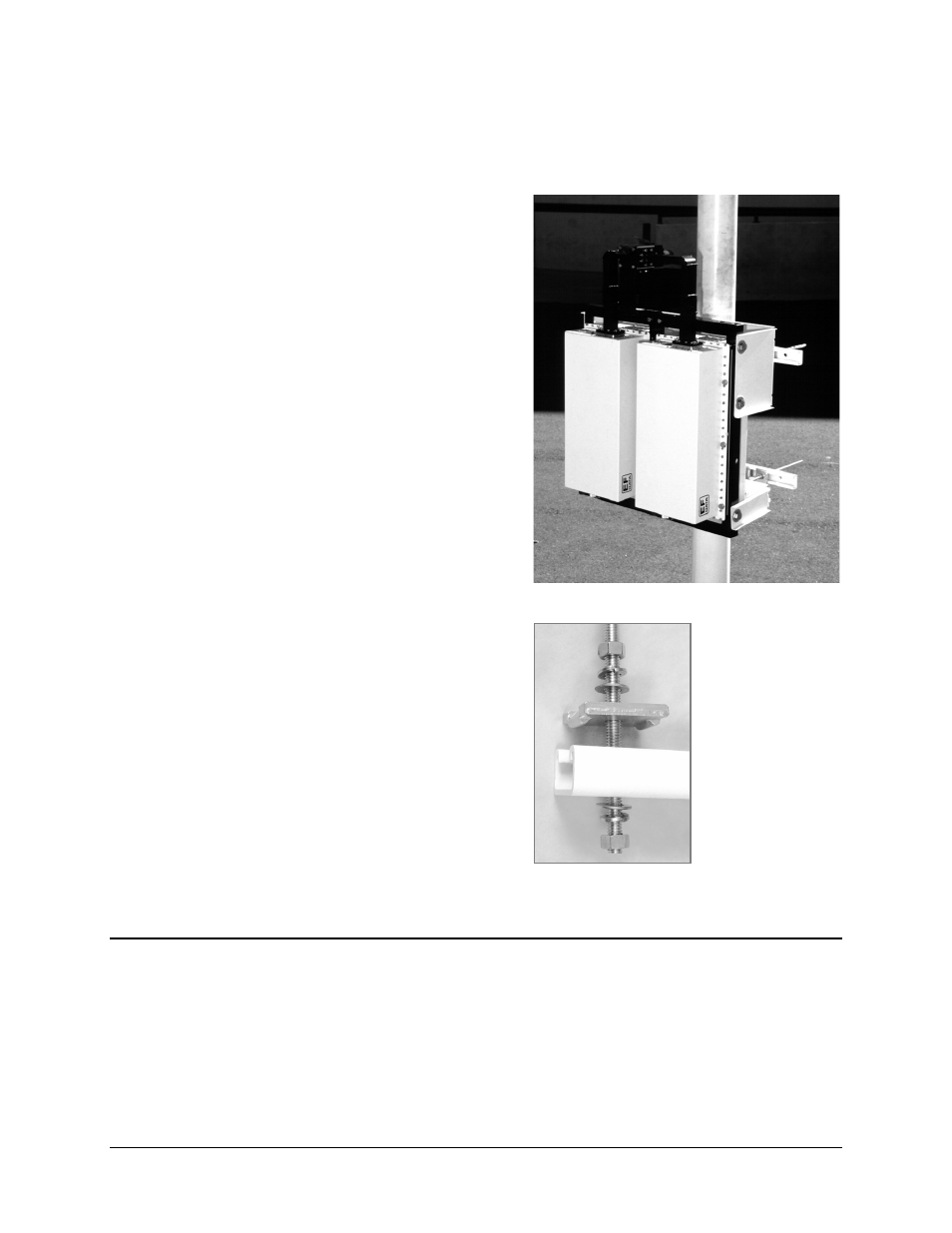

6. Mount the C-Band SSPAs as follows:
a. Lift the configuration into
position on the vertical pole.
b. Slip a 14” unistrut over each
of pair of threaded rods
(upper and lower).
Note: Install the 14” unistruts
with the open face toward the
pole, as illustrated.
c. Install a 5/16” flat washer,
5/16” split lockwasher, and
5/16-18 nut on each threaded
rod.
d. Position the configuration, as
desired, and tighten the
5/16-18 nuts installed in
Step 6.c.
e. Slide the pipe blocks in until
they contact the vertical pole.
f. Tighten the 5/16-18 bolts.
4.3.5.2 Square Pole
For square, vertical pole installation, follow the steps in Section 4.3.2.1, with the
following exceptions:
! Do not perform Step 4.
! Do not perform Step 6.e.
