Configurations High-Power C-Band Satellite Terminal
A–2 Rev. 0
A.1.1.1 Specifications
Refer to Table A-1 for specifications.

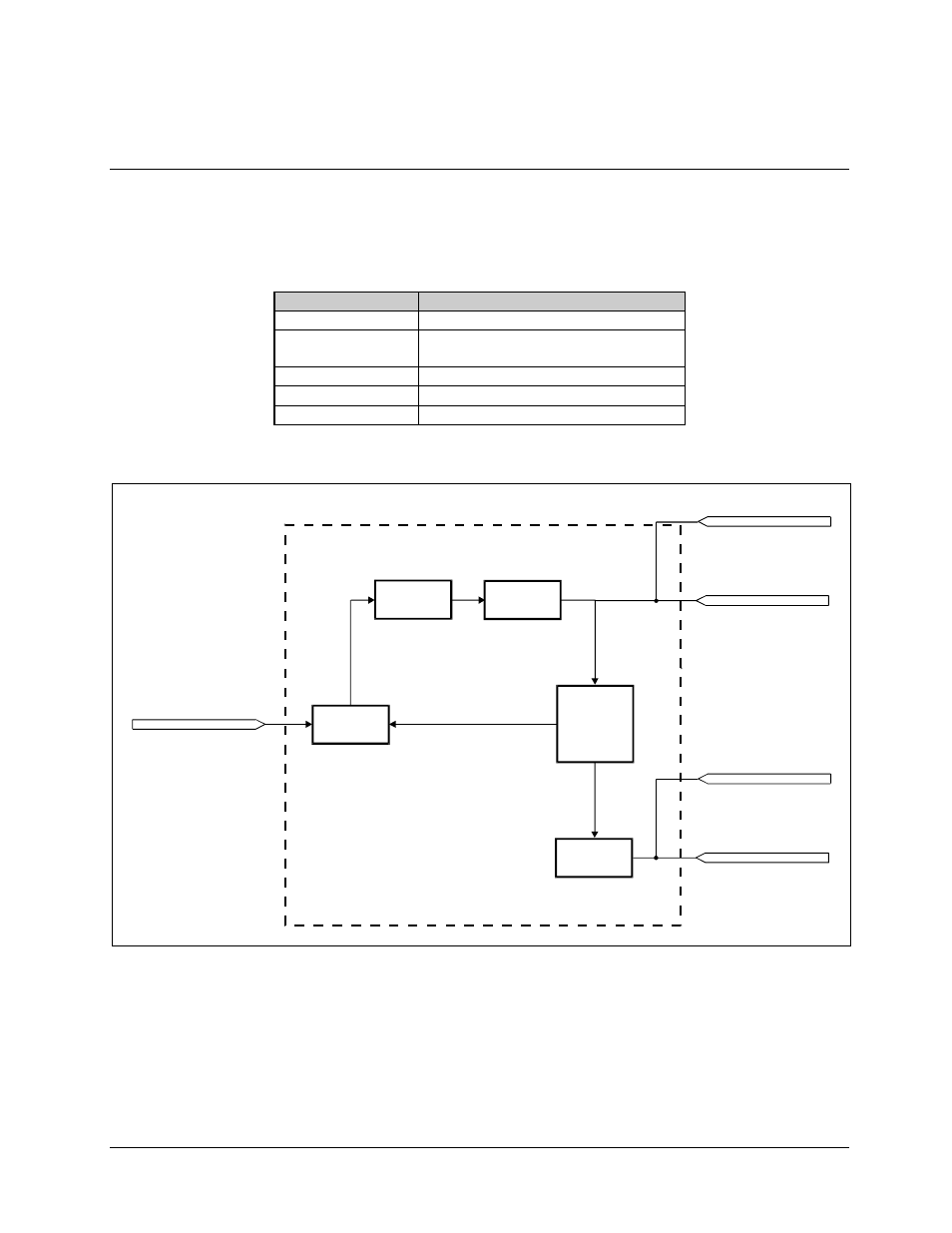

Table A-1. IF 1112.5 MHz Local Oscillator Specifications
Parameter Specifications
Input 10.0 MHz Square Wave, CMOS levels
Output 1112.5 MHz (2 each)
2225.0 MHz (2 each)
Connectors SMA, female
Output Impedance 50
#
Output Level +7.0 dBm
IF LOCAL 1112.5 MHz OSCILLATOR
PHASE
DETECT
FILTER
LOOP
FILTER
VCO
DIVIDE
DOWN
CHAIN
10 MHz REFERENCE
SMA FEMALE
CMOS LEVELS
SQUARE WAVE
D/C IF LO
U/C IF LO
1112.5 MHz
SMA FEMALE
+7 dBm
1112.5 MHz
SMA FEMALE
+7 dBm
U/C SYNTHESIZER
D/C SYNTHESIZER
2225 MHz
SMA FEMALE
+7 dBm
2225 MHz
SMA FEMALE
+7 dBm
Figure A-1. IF Local Oscillator Block Diagram
