High-Power C-Band Satellite Terminal Single Thread System Installation
Rev. 0 3–7
3.3.2 Vertical Pole Installation
Refer to Section 8, Equipment List, Figure 8-4 for assistance in the installation of the
RFT using Mounting Kit P/N KT/3576. Refer to Figure 8-2, Cabling Configuration, for
cables necessary to connect the single thread configuration.
3.3.2.1 Round Pole
Note: The following process is for a typical installation.
Install the RFT to a round vertical pole as follows:
1. Set the unit on its side, with the mounting holes facing up.
2. Install the 8” unistruts as follows:

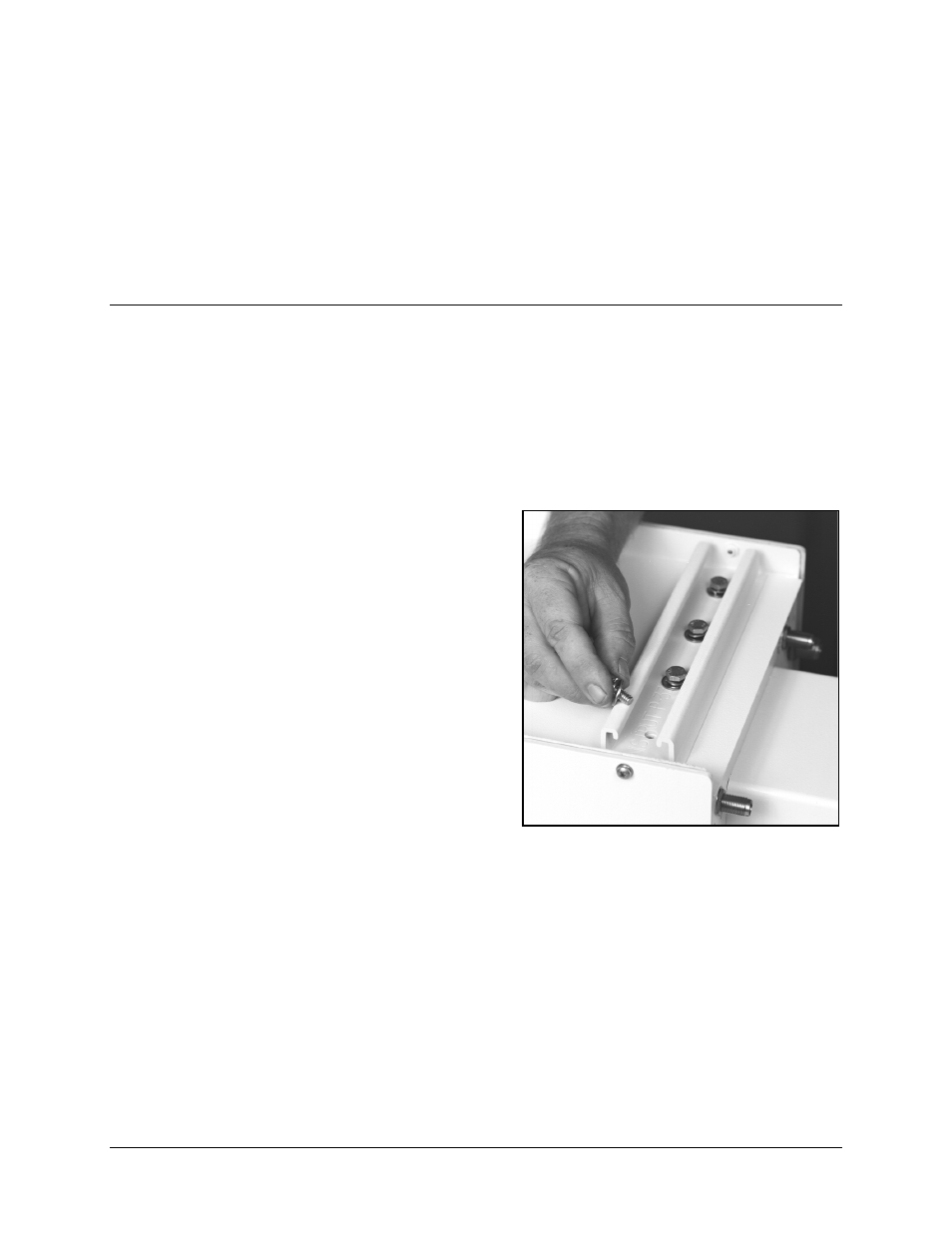

a. Position an 8” unistrut (with
the open side facing up)
over one set of the mounting
holes on the RFT.
b. Using four 1/4-20 x 5/8”
bolts, 1/4” split
lockwashers, and 1/4” flat
washers, attach an 8”
unistrut to the RFT.
c. Tighten the bolts firmly.
d. Repeat Steps 2.a. and 2.b. for the second 8” unistrut.
