Single Thread System Installation High-Power C-Band Satellite Terminal
3–26 Rev. 0
3.5.3 Spar Installation
Note: Refer to Section 8, Equipment List, Figure 8-3 for assistance in the installation.
Install the C-Band SSPA to a spar as follows:

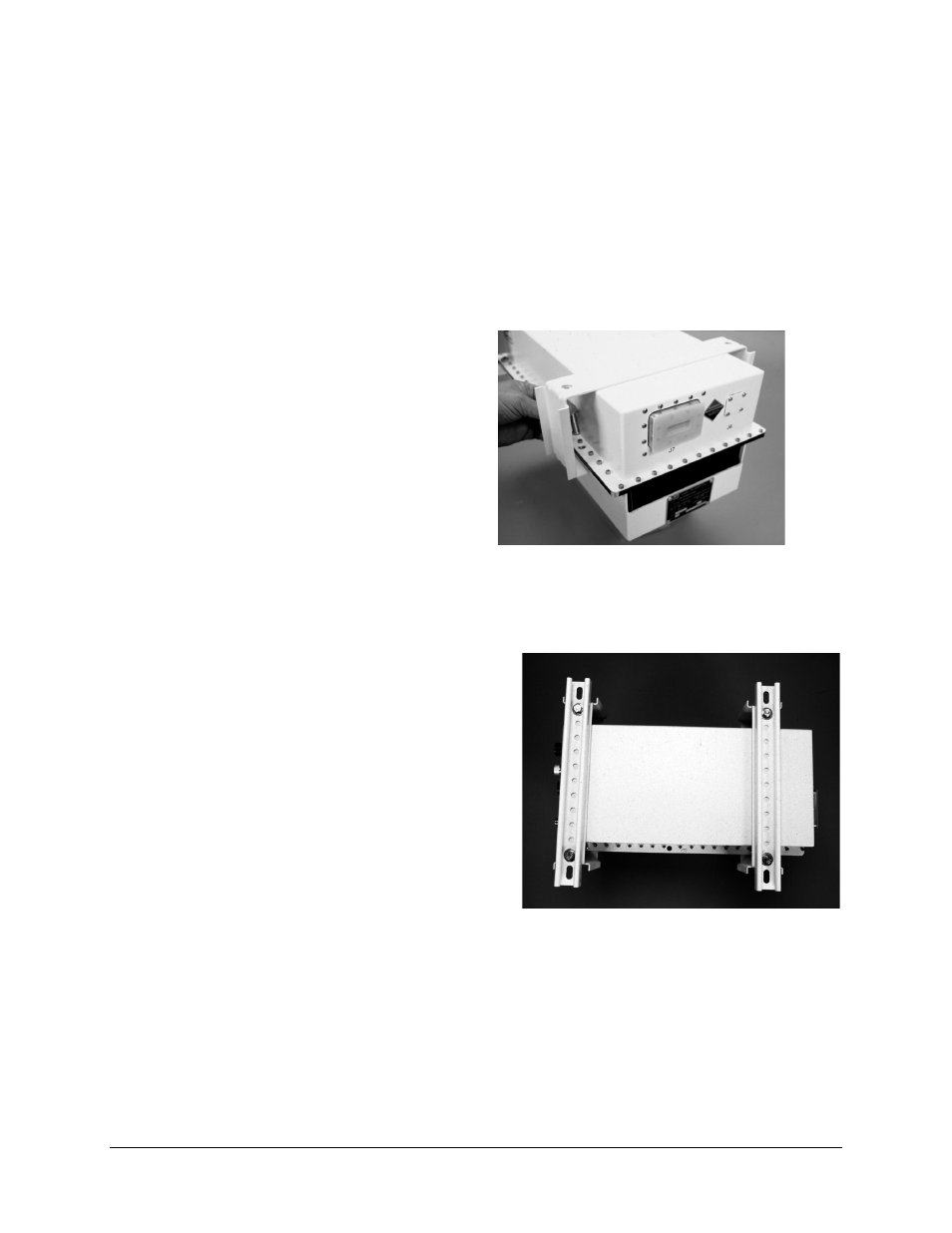

1. Install mounting bracket as follows:
a. Position two mounting
brackets onto the
C-Band SSPA.
b. Secure the mounting
brackets to the unit
with four 3/8 x 1 1/4”
bolts, 3/8” split
lockwashers, 3/8 flat
washers, and 3/8 hex
nuts.
2. Install the 14” unistruts as follows:
a. Position an 14” unistrut
(with the open side facing
up) over the mounting holes
of the mounting bracket.
b. Using four 3/8 x 1” bolts,
3/8” split lockwashers, and
3/8” flat washers, attach an
8” unistrut to the C-Band
SSPA mount bracket.
Tighten the bolts firmly.
c. Repeat Steps 3.a. and 2.b.
for the second 14” unistrut.
