High-Power C-Band Satellite Terminal Single Thread System Installation
Rev. 0 3–5
3.3 RFT Installation
At the customer’s discretion, the RFT can be installed anywhere on or near the antenna.
The supplied hardware allows the installer a wide range of installation alternatives,
including:

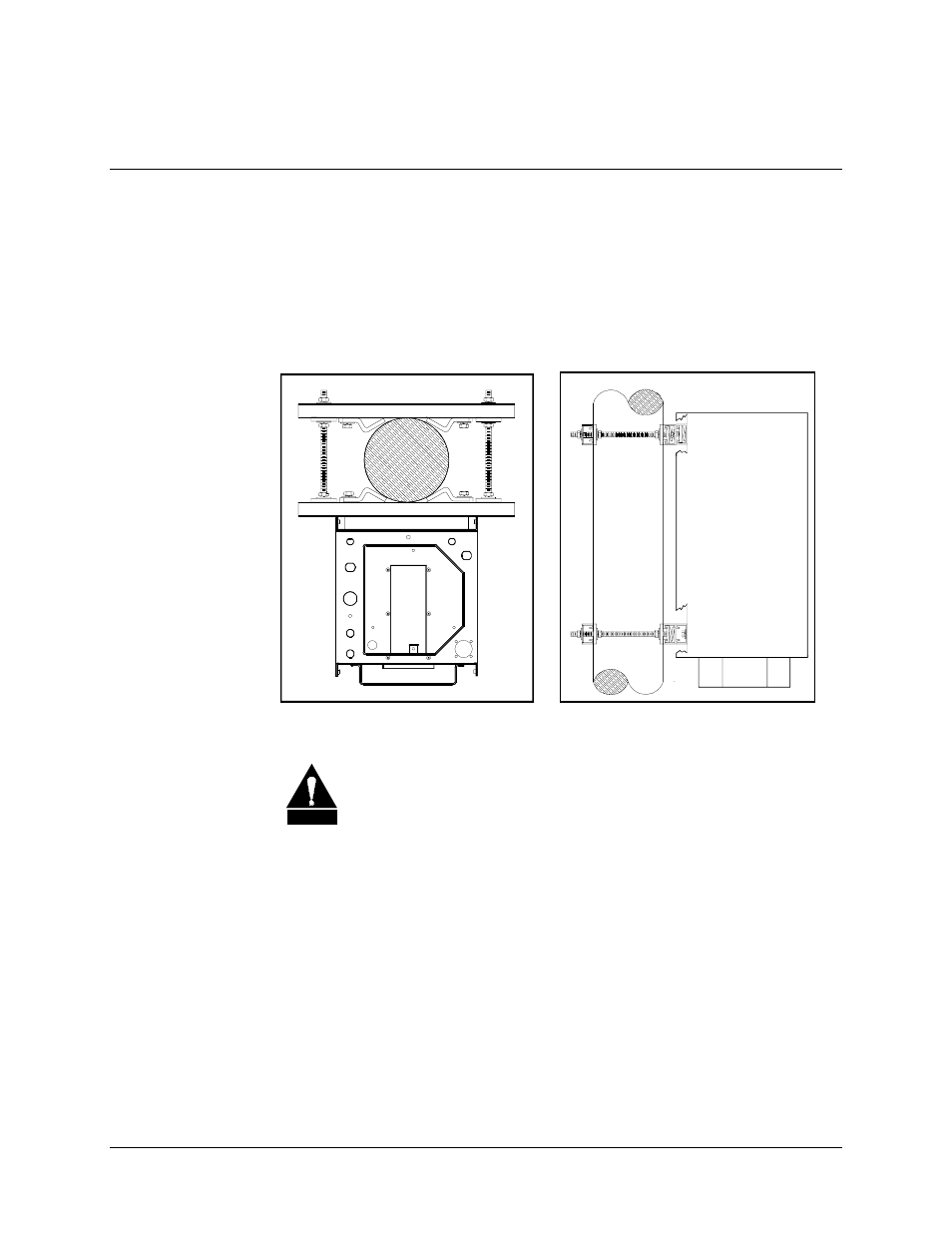

! Vertical pole (e.g., mast) (either square or round). This is the most typical
installation.
CAUTION
Ensure that all air inlets, exhausts, and fan guards are free of dirt,
dust, and debris. Make certain that these areas are inspected on a
regular basis. Damage to the equipment can be the result.
! Within the hub of a large antenna.
! Spar (i.e., square bar) on the antenna structure.
Note: EFData recommends that the RFT be mounted vertically, with the air inlet
facing the ground.
