CRS-500 1:N Redundancy System Revision 2
Introduction MN-CRS500
1–12

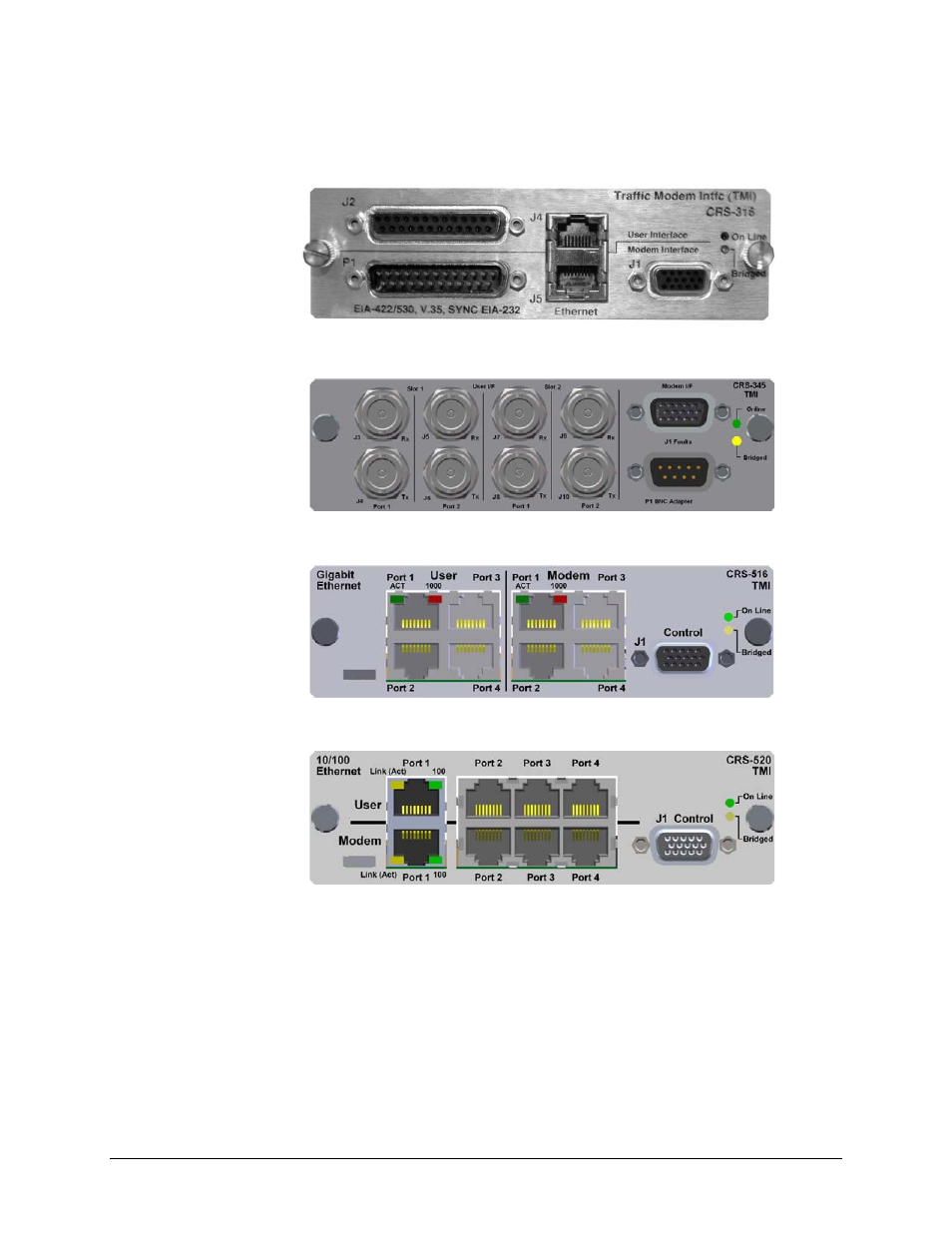

1.3.2.3.2 TMI Modules
Figure 1-15.
CRS-316 TMI
EIA-422
(PL/12498-1)
DB-25F RJ-45F
DB-25M RJ-45F HD-15F
Figure 1-16.
CRS-345 TMI
G.703/E 3/T3/S TS -1
(PL/11495-1)
(4X) BNC-F HD-15F
DB-9M
Figure 1-17.
CRS-516 TMI
10/100/1000
Gigabit Ethernet
(PL-0000628)
(8X) RJ-45F
HD-15F
Figure 1-18.
CRS-520 TMI
10/100 Ethernet
(PL-0000589)
(8X) RJ-45F
HD-15F
