1.3.2.3 Modem/DSU Interface Modules
The following tables indicate which TMI (Traffic Modem Interface) and RMI (Redundant Modem
Interface) should be used with each modem and data interface type:
CDM-625 Advanced Satellite Modem
Data Type TMI Type RMI Type
EIA-422/530, V.35, Sync EIA-232 CRS-316
CRS-510 10/100 Ethernet (Single-port Router Mode)
CRS-520
10/100 Ethernet (Managed Switch Mode)
CDM-750 Advanced High-Speed Trunking Modem
Data Type TMI Type RMI Type
G.703 E3, T3, STS-1 CRS-345
CRS-505
10/100/1000 Ethernet (Single-port Router Mode) CRS-516

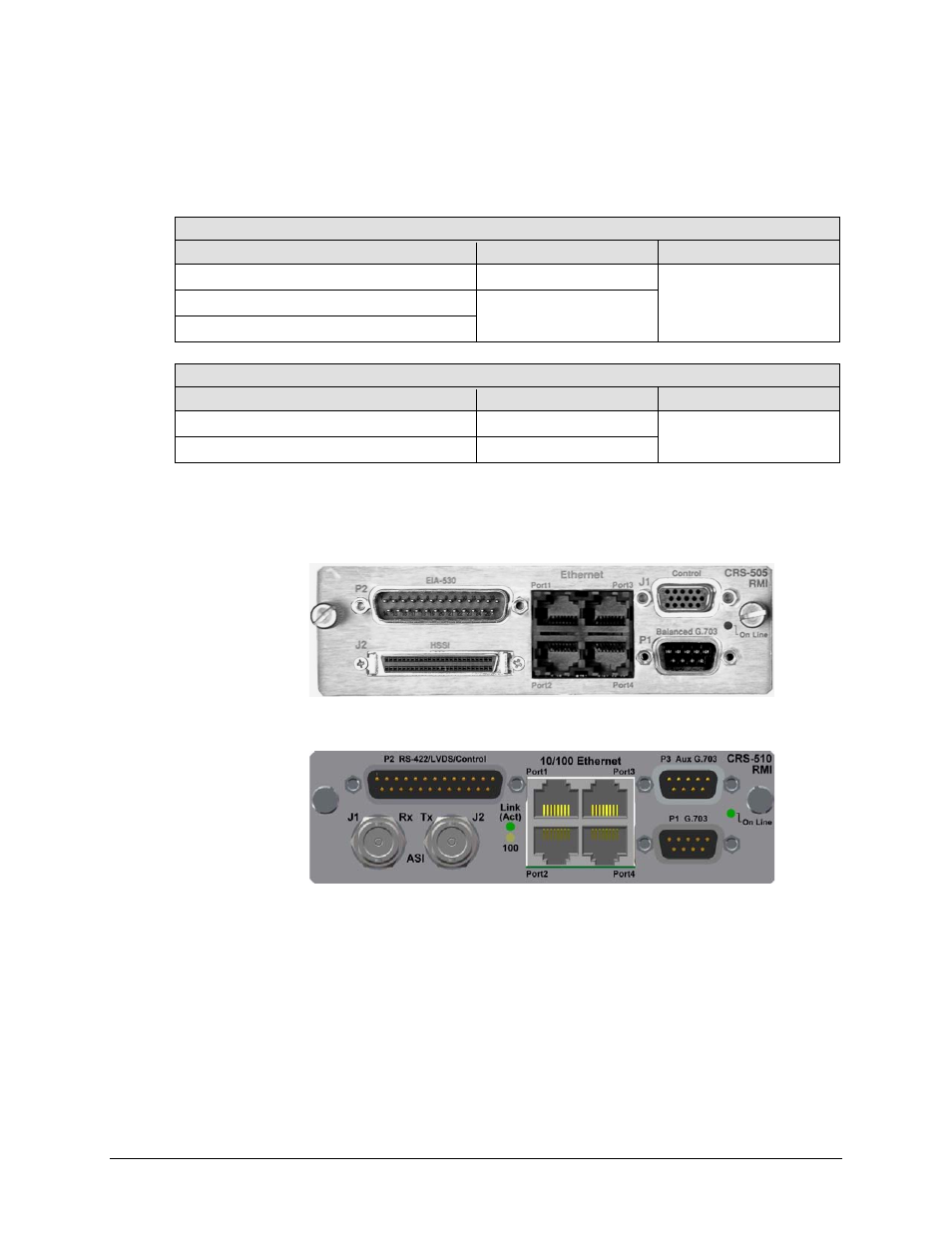

1.3.2.3.1 RMI Modules
Figure 1-13.
CRS-505 RMI
(PL-0000293)
DB-25M (4X) RJ-45F HD-15F
HD-50F DB-9M
Figure 1-14.
CRS-510 RMI
(PL-0000642)
DB-25M (4X) RJ-45F DB-9M
(2X) BNC-M DB-9M
