INSTALLATION

Installing the trays

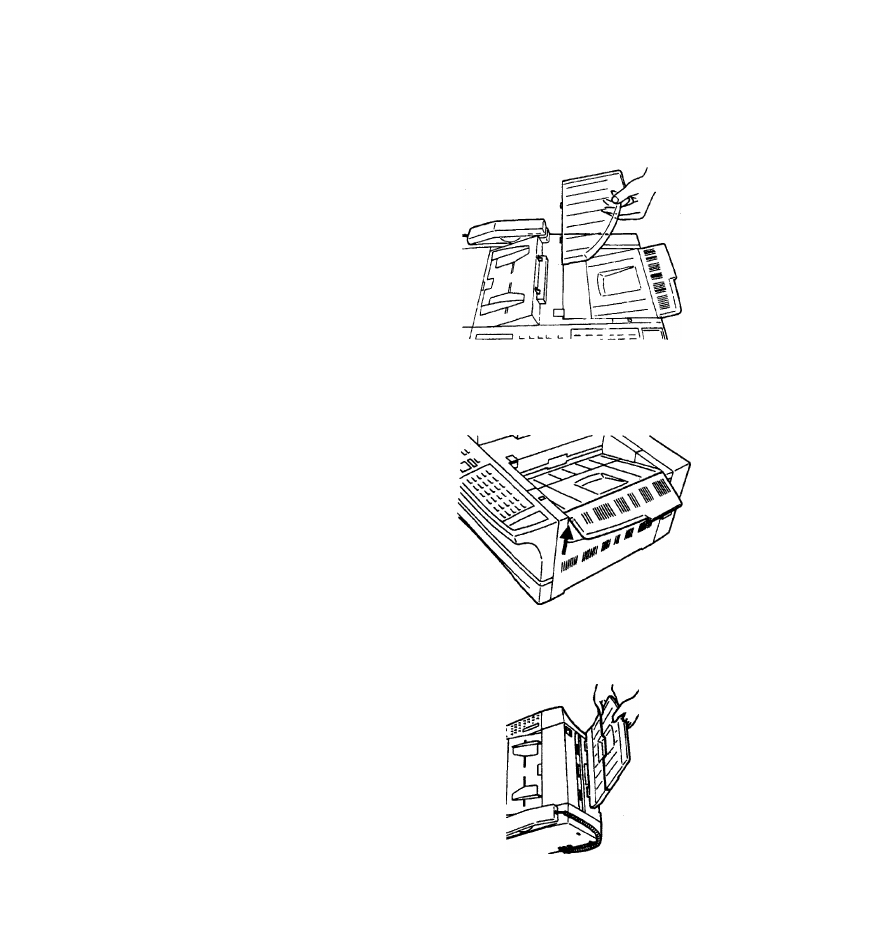

1. Document input tray - Position the tabs on the tray over the

slots located on top of the terminal. Press the tray down
firmly to secure.

2. Output tray extension (attached to the terminal) - Lift the

tray upward until the tray locks into place. To fold the tray

back into the term Inal, lift and lower slowly.

3. Document output tray-Position the tray vertically. Insert the

tabs into the slots and lower the tray into position.
