INSTALLATION

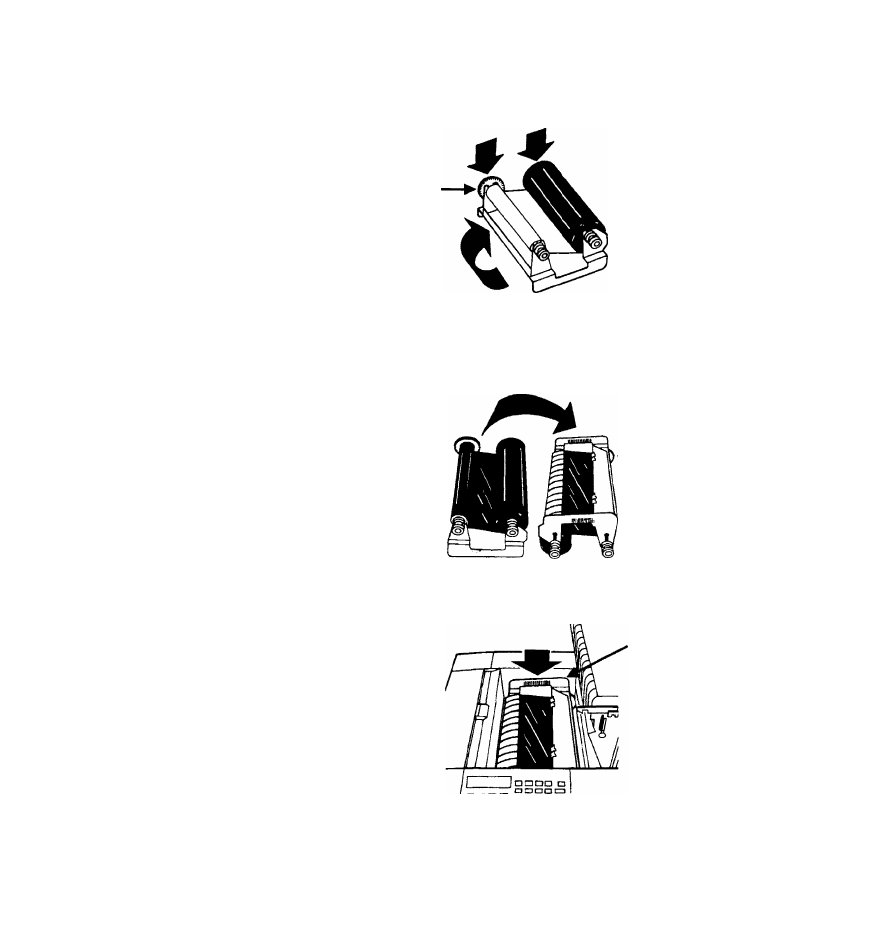

3. Set the cartridge down on a work surface and turn it over.

Make sure the red spindle is on the left rear side. Advance

the blue leader clockwise onto the take-up roll until the

black ink is visible.

Red

Spindle

4. Turn the cartridge over. Make sure the red spindle is on the

right rear smooth side and the blue spindle is on the left rear
ribbed side.

Red

Spindle

5. Grasp the cartridge by its handles and place it into the

terminal. Make sure the red spindle is on the right rear side.

Red

Spindle

6. Close the printer cover and press firmly to close.
