INSTALLATION
1
.
2
.

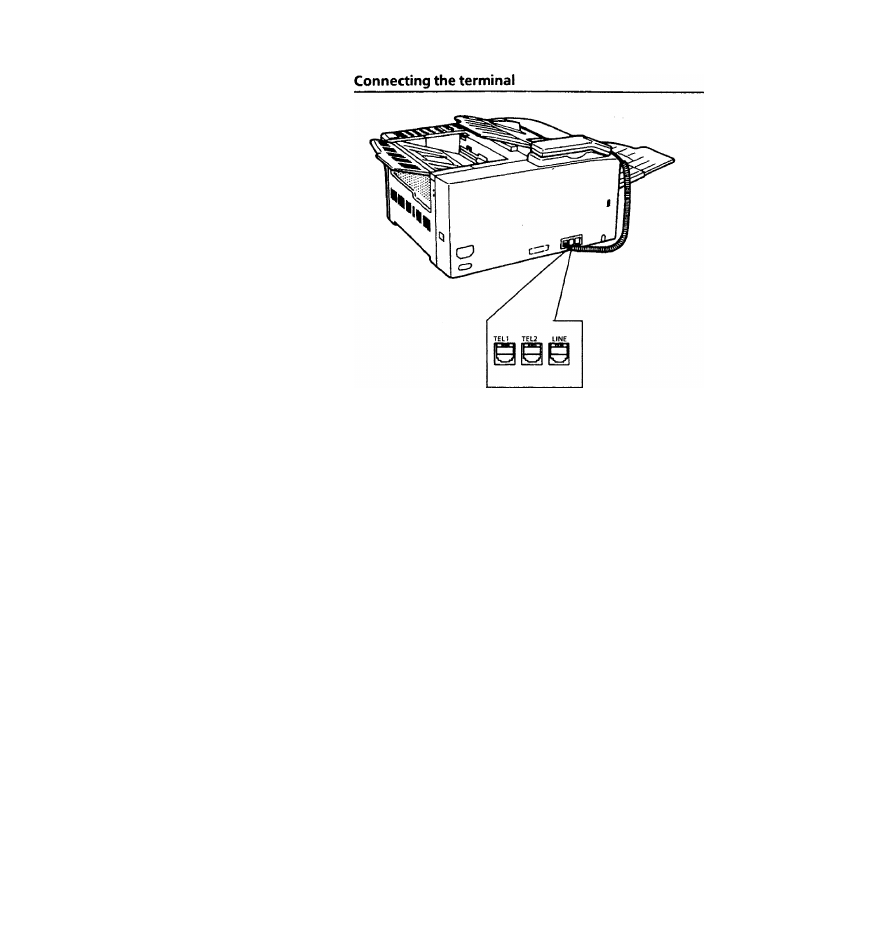

Insert one end of the handset cord into the handset. Insert
the other end of the handset cord into the modular jack
marked TEL1 on the rear of the terminal. Place the handset
on the cradle.
Insert one end of the telephone line cord into the modular
jack marked LINE on the rear of the terminal. Insert the
other end of the telephone line cord into the telephone wall
jack.
3.
If you will be using an answering machine or second
telephone with your fax machine, connect the telephone line
cord from that device to the TEL2 jack. Remove the plastic
cover from the TEL2 jack.
Note: If desired, you may connect the answering machine or
second telephone to TEL1 and the handset to TEL2. See SET
SECOND TELEPHONE and SET ANSWERING MACHINE to select
the appropriate settings.
