PROBLEM SOLVING

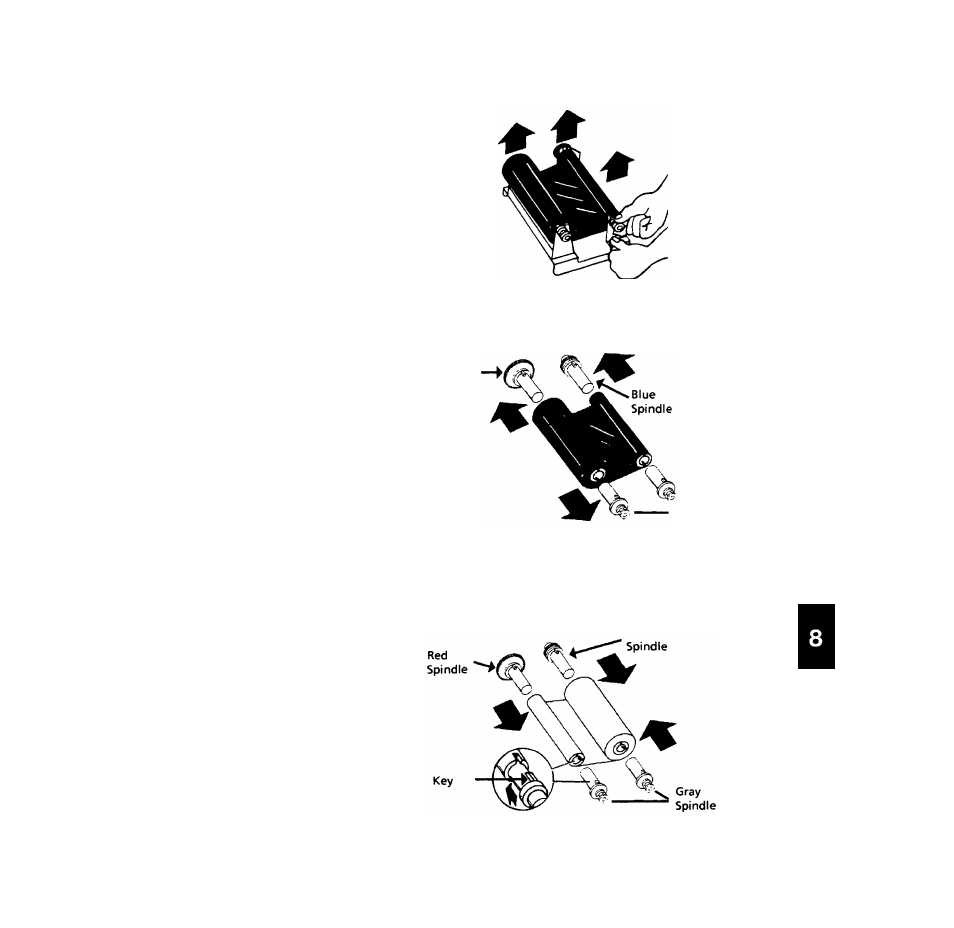

4. While pressing down on the cartridge handle, snap each
spindle out of its slot.
Remove the rolls of film from the cartridge and slide the
spindles out of the rolls.
Red
Spindle
Gray
Spindle
Insert the red spindle in the take-up roll and the blue spindle
in the supply (large) roll. Insert the gray spindles into the
opposite end of the rolls. Make sure that the keys on the
spindles slide all the way into the slots in the ends of the rolls
of film.
Blue
telecopier 7024 USER HANDBOOK 8-9
