High-Speed Microcontroller User’s

Guide: Network Microcontroller

Supplement

181

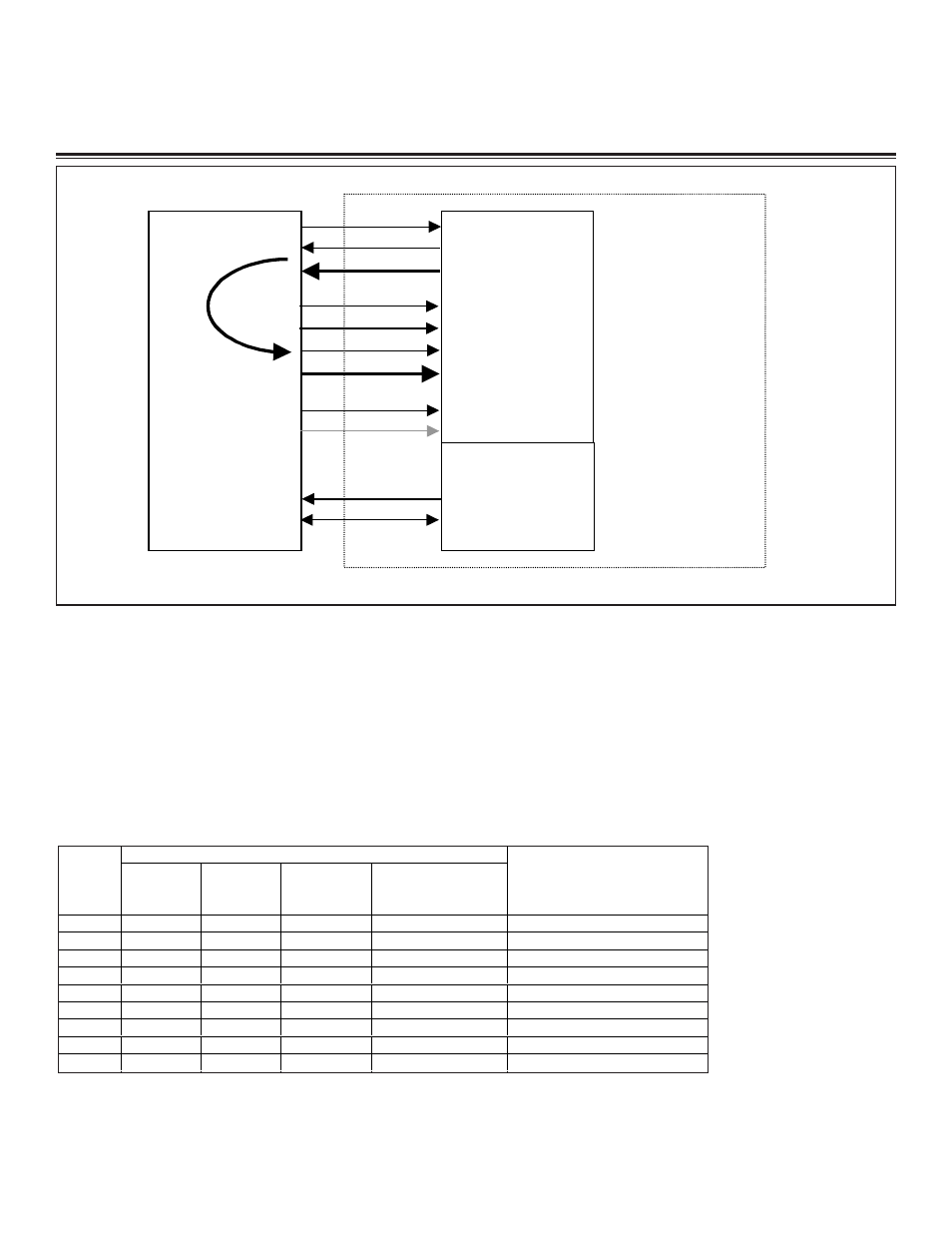

Figure 22-9. External Loopback Mode (MAC Control OM1:0 = 10b)

ADDRESS FILTERING CONTROL

The destination address of each Ethernet packet received by the MAC is examined by the address check block of the Ethernet con-

troller. The address check block and associated MAC control register bits that define the destination address-filtering mode are cov-

ered in the DS80C400 data sheet. The destination address is tested against the currently defined address filter, and the pass/fail sta-

tus is reported (by the BCU) to the filter fail (FF) bit of the receive status word. Additional status bits indicating whether the destination

address is a multicast or broadcast frame are also written by the BCU to the receive status word. Each receive packet, whether it pass-

es or fails the destination address filter, normally is written to the receive data buffer. In the same respect, as the PF bit is normally used

to indicate whether a frame was error-free, the FF bit normally is used to assess whether it passed the address filter, allowing the CPU

to quickly determine whether the packet should be processed or discarded. Table 22-3 summarizes the possible receive frames and

resulting PF, FF bit states reported in the receive status word.

Table 22-3. Packet Filter and Filter Fail Bit Status for Various Received Frames

RECEIVED FRAME

PF, FF

STATUS

BITS

NO ERRORS

WITH

ERRORS

PASSED

ADDRESS

FILTER

FAILED

ADDRESS FILTER

SPECIAL FILTERING CONDITION

ENABLED?

don’t care

Promiscuous mode (PM = 1)

don’t care

Broadcast frame AND DBF = 1

don’t care

Promiscuous mode (PM = 1)

Pass bad frames (PB = 1)

MDC

MII

MANAGEMENT

BLOCK

(Serial interface bus

to PHY)

MDIO

MII I/O BLOCK

(Transmit, receive,

and flow control)

EXTERNAL

PHY

DEVICE

(Configured to

loopback mode)

TX_EN
TXD[3:0]

RXCLK
RX_DV

RX_ER
RXD[3:0]

CRS

COL

TXCLK

DS80C400
