7.2 Main page
The main page is displayed during the ON state:
By pressing the DOWN key, it is possible to select whether to access the State pages of the MCZN
regulator, the Main Menu, the On/Off pages or System Network pages, described below.
By pressing ESC key, the controller will go back to the main display of the MCCT thermal power
plant controller.
7.3 Status
By accessing the “Status” page from the “Main Page” access the two status ages relative to the
dehumidifier/s, the booster/s for integration with cooling/heating and/or management of the fresh
air damper controlled by the MCDE regulator.

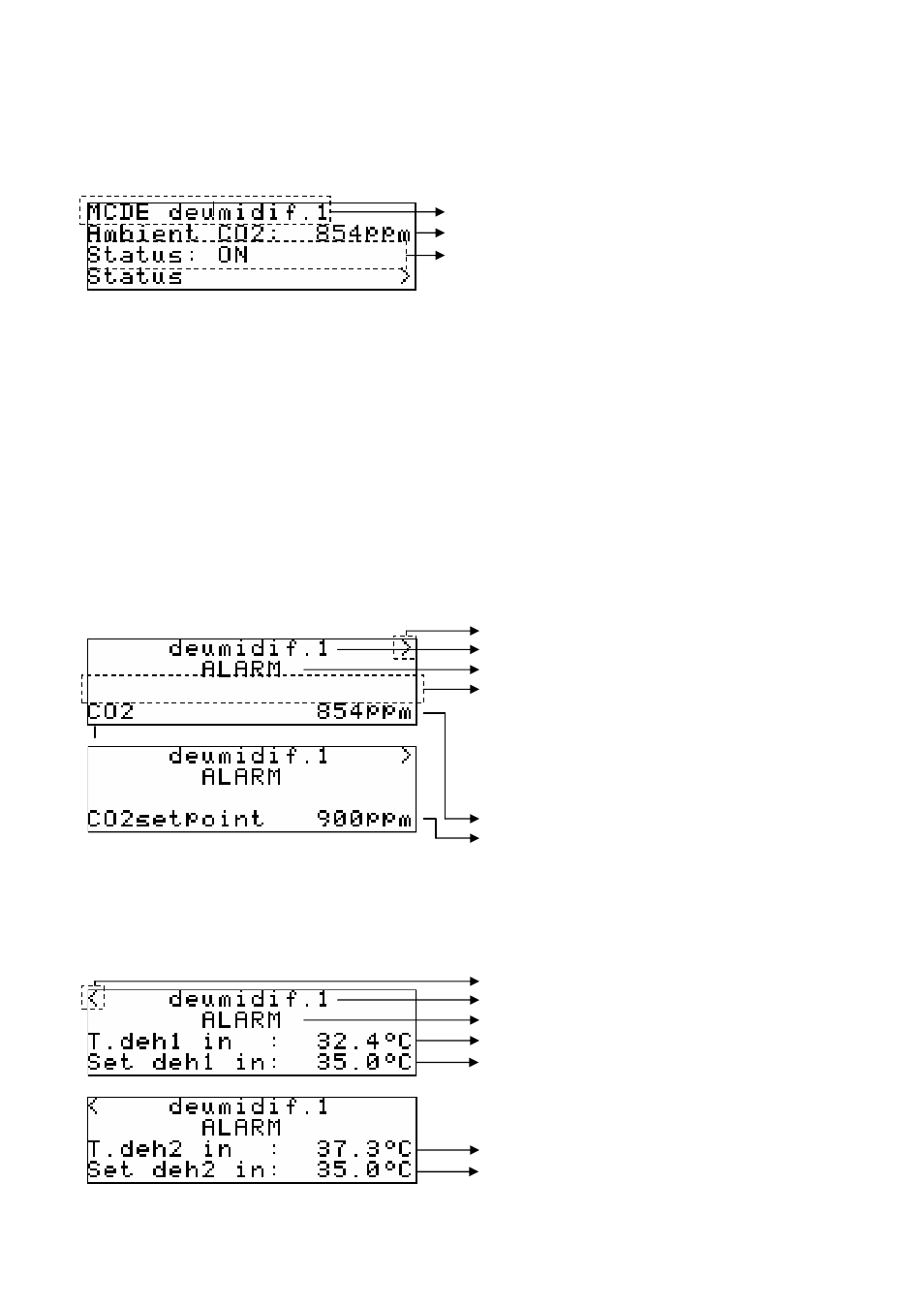

The Status pages will contain the following information:
By positioning the cursor over the “>” symbol and pressing the ENTER key, it is possible to access
the second "Status" page of the MCDE regulator.
The second Status page will contain the following information:
Name of the MCDE regulator to which access has been
Value of CO2 present in the room (if enabled)
MCDE regulator state:
ON = regulation in progress
OFF = regulator OFF
ALARM = MCDE regulator general alarm
ZN ALARM = Associated MCZN regulator alarm off-line
Alarm present (consult alarms menu)
Maximum CO2 level setpoint in the room
Name of the MCDE regulator to which access has been
Line indicating the status of the MCDE controller:
Deh1 = dehumidifier 1 activated
Deh2 = dehumidifier 2 activated
CO2 = Fresh air damper activated
Bc = dehumidifier 1-2 cooling booster activated
Bh1 = dehumidifier 1 heating booster activated
Bh2 = dehumidifier 2 heating booster activated
CO2 level detected in the room
Access to the next MCDE status page
Alarm present (consult alarms menu)
Name of the MCDE regulator to which access has been
Return to the previous MCDE status page
Input temperature dehumidif.1 for booster functioning
Setpoint limit for input temp. dehumidif.1 for booster
functioning
Input temperature dehumidif.2 for booster functioning
Setpoint limit for input temp. dehumidif.1 for booster
functioning
