4 USER INTERFACE
4.1 Display and keyboard
A unique incorporated interface is envisioned for the application (herein called built-in) in the
MCCT controller with 4 x 20 characters alphanumerical display and several dedicated keys and
LEDs.
The built-in display of the MCCT controller is the only user interface available for the installer and
the maintenance technician of the c-pro CLIMA system. All settings and configurations of the
modules connected will be performed via a unique display.
4.1.1 Built-in interface
The built-in interface is integrated directly onto the MCCT.

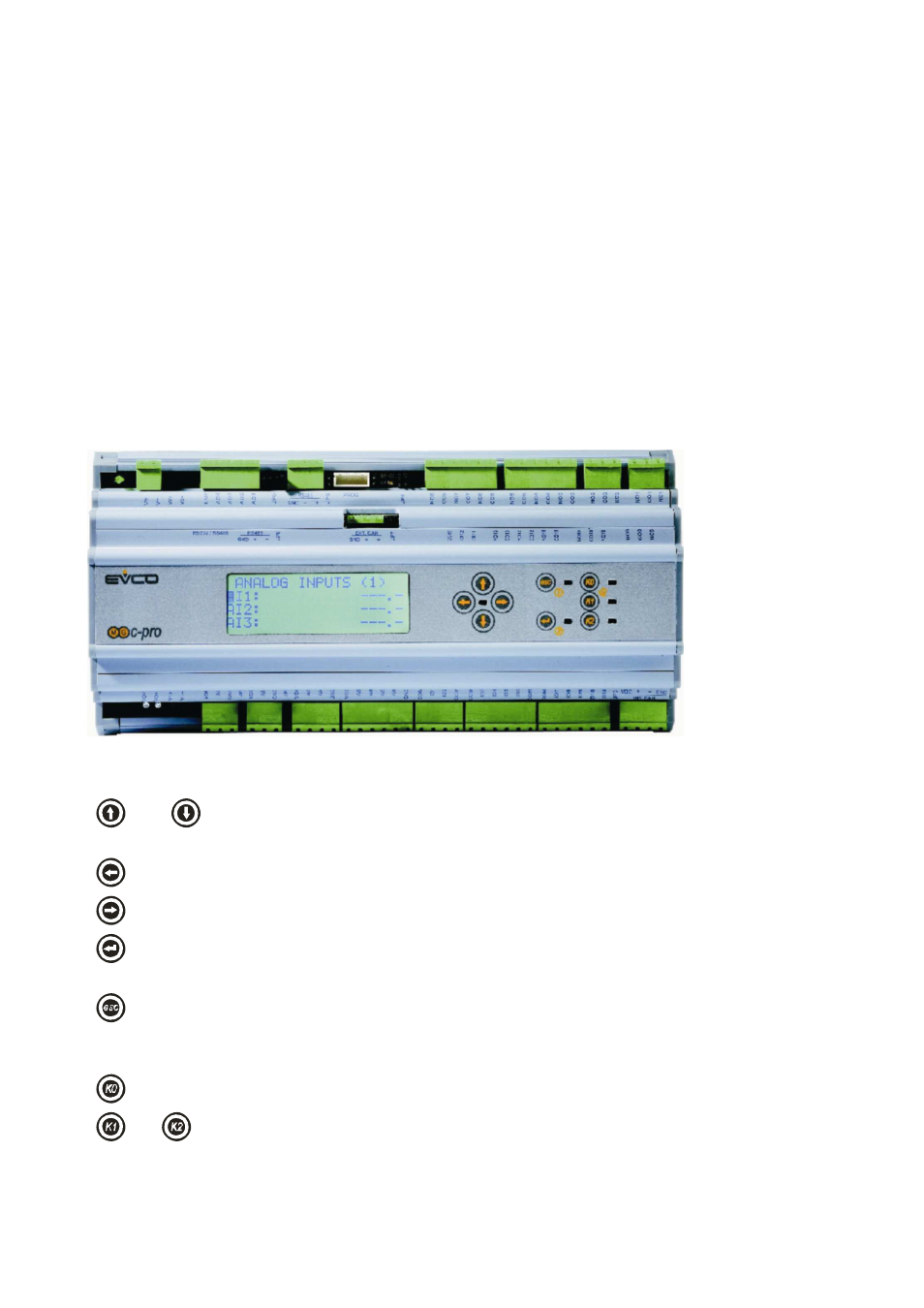

There are 9 navigation and value editing pages present in the keyboard with the following meaning:
- and (UP and DOWN): when editing it modifies the parameters; otherwise moves the
cursor.
- (LEFT): moves the cursor to the left or takes to the previous menu.
- (RIGHT): moves the cursor to the right.
- (ENTER): in editing it confirms the value; otherwise it sends any controls associated to the
text where the cursor is present.
- (ESC): in editing it annuls the value; otherwise request of the default page eventually
associated to the current page. If the ESC key is held for about 2 seconds, the machine can be
switched on/off,
- (K0): used to silence the alarm buzzer.
- and : they are keys not used.
