C-PRO CLIMA SISTEMA INSTALLER MANUAL
Page 22
MCCT thermal power plant controller settings:
Below find the settings to make on the MCCT regulator to make Vgraph a public terminal:
From the Installer
General parameters menu, enable the presence of the public V-graph display
via Enab. V-GRAPH- parameter
MCZN zone controllers settings:
Below find the settings to make on the MCZN regulators to make Vgraph a public terminal:
From the Installer
General parameters menu, enable the presence of the public V-graph display
by setting the V-GRAPH mode parameter in UNIV.

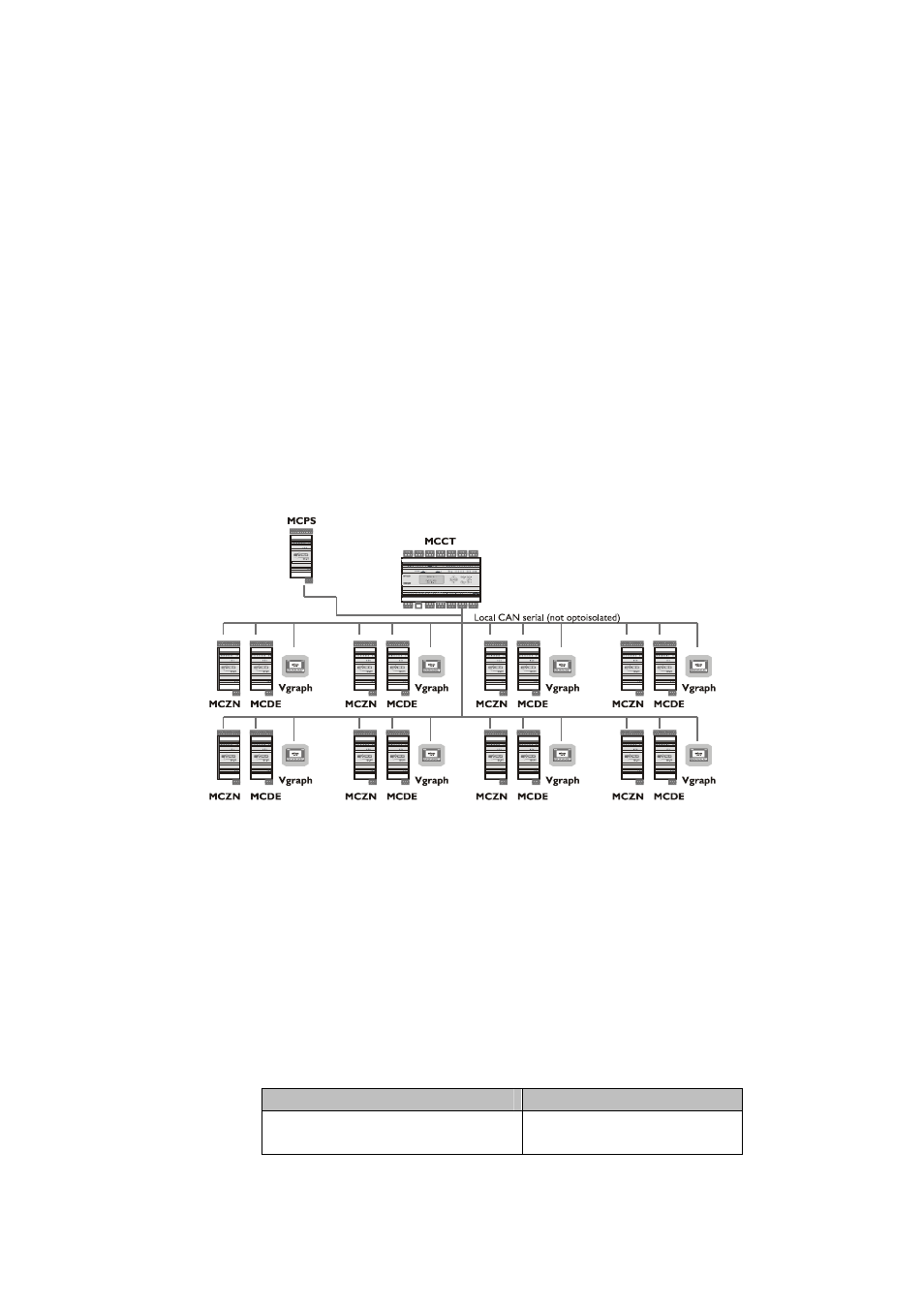

3.5.2 Module private terminal
If the Vgraph display is configured as a private module terminal (AB), every Vgraph display will be
able to only show the preselected MCZN zone regulator, managing both zones (called Zone A,
Zone B) managed by the MCZN controller.
A condominium is given as an example.
A Vgraph display will be installed in every apartment, which will establish temperatures and time
bands for the two Zones present in the apartment, (day zone/night zone or apartment/bathroom),
without the possibility to display or modify the settings of the other apartments present.
Vgraph settings:
Below find the network settings to be made on Vgraph to make it a private module terminal (for the
setting procedures, consult the Vgraph hardware manual):
CANbus address: 100 + address of the MCZN zone regulator to which the connection is to be
made
CANbus map:
Network node Address
1 MCZN associated
controller address
