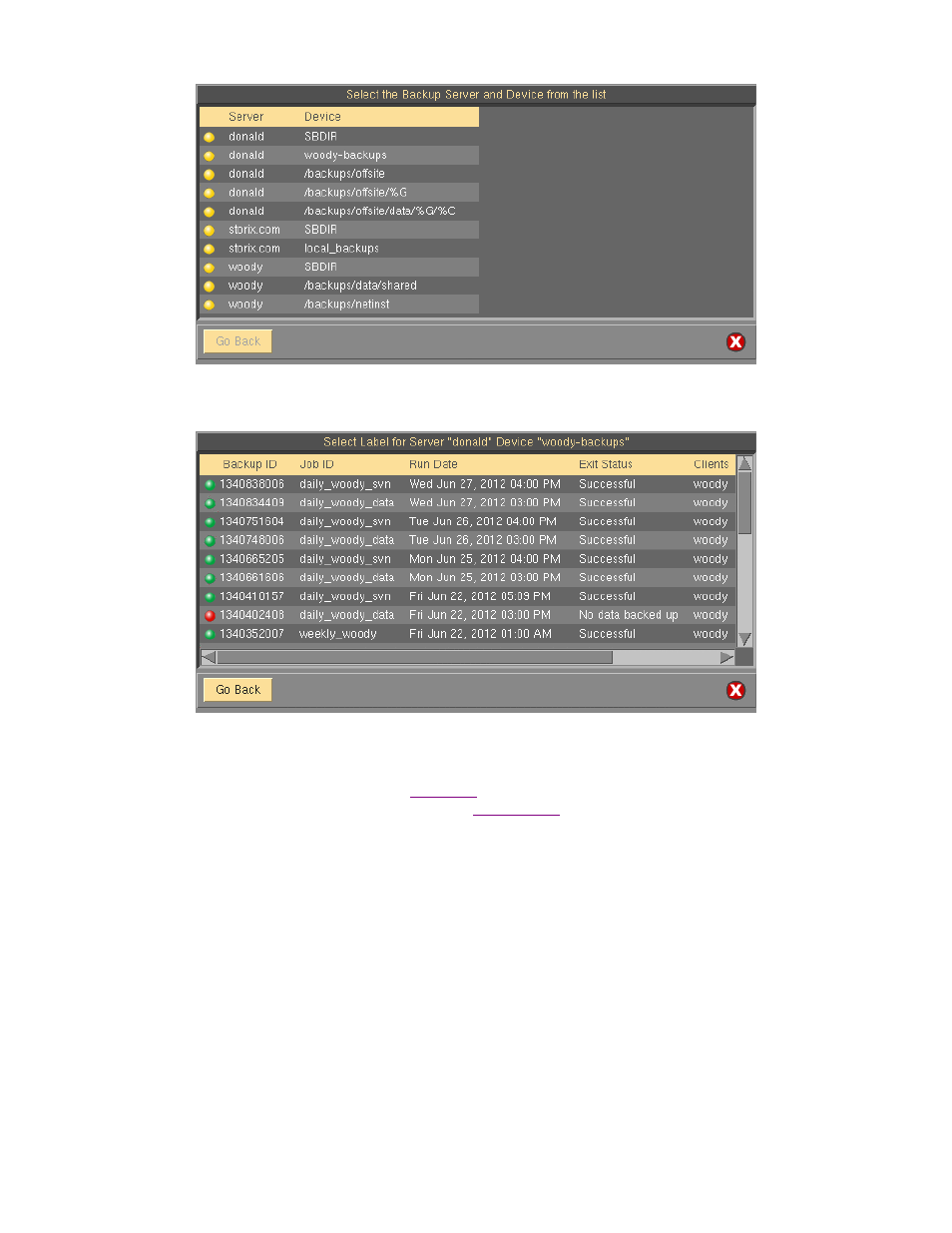

Select the server and device from the list by clicking on the button to the left. Once you do so, a list of backups
for the selected server and device is displayed, as shown below:
Note that the color of the button represents whether the backup was successful (green) or failed (red). A yellow
button indicates that the job completed successfully, but with warning messages. The Job ID, date and time,
and a list of clients on the media are displayed for each label in the list. To display a label, click the button next
to the Backup ID. The label will be displayed (
). If you want to return to the server and device display
screen, press the Go Back button. Otherwise press the
to close this window.
View by Job ID
Select View
!Backup Labels!By Job ID
from the main menu bar if you want to select the label to display
from a list of Job IDs.. The following screen will be displayed:
Storix System Backup Administrator
100
Version 8.2 User Guide
