24 Chapter 2 Acuity System overview Welch Allyn Acuity Central Monitoring System
To open a patient’s Virtual Monitor

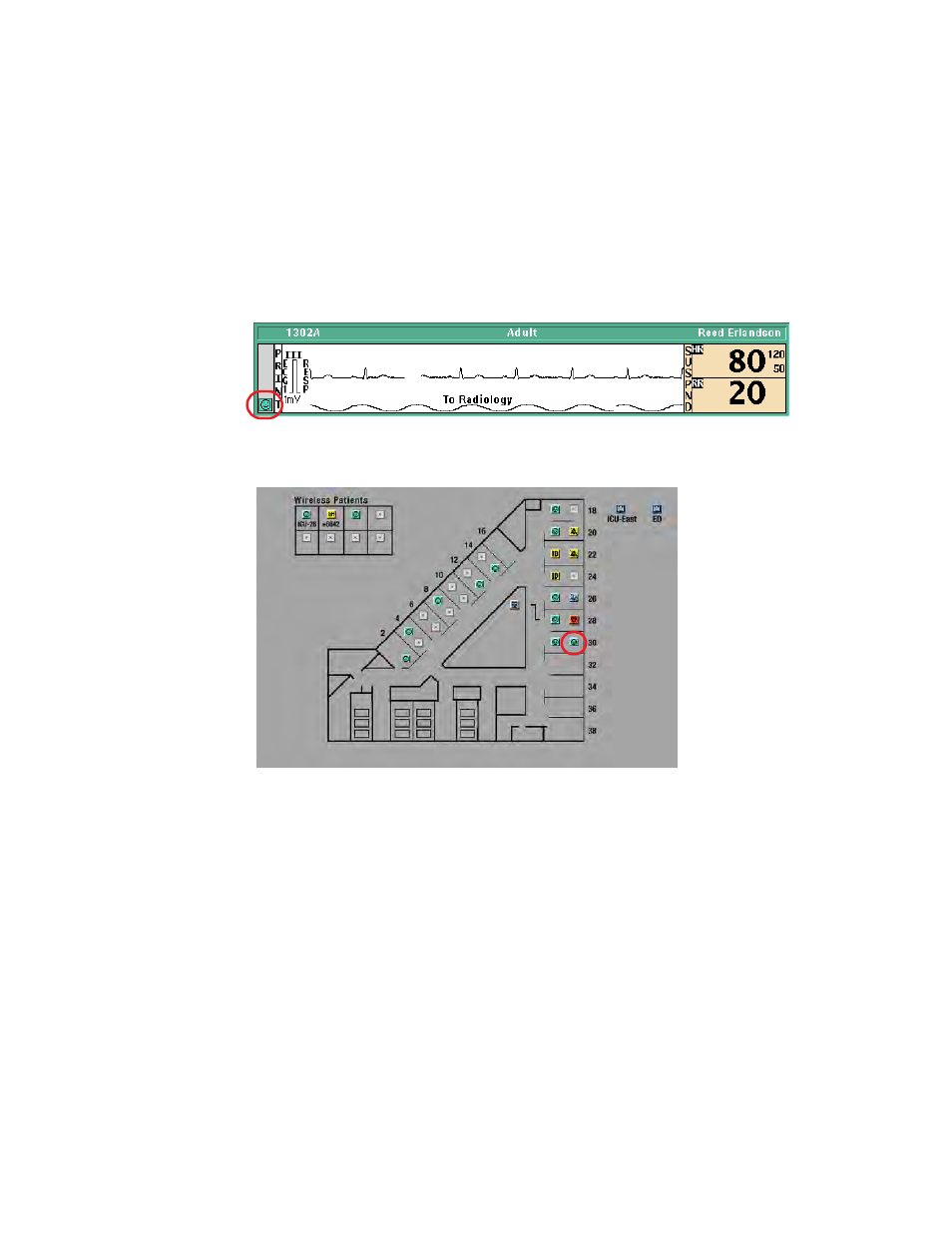

Take one of these steps at the Acuity Central Station screen:
• Click the status icon in the patient’s Waveform Window.
• Click the patient’s map icon.
H. ECG lead The adjacent waveform is derived from this ECG lead. If you want to review
waveforms from all leads, click Review, Waveforms to open the Waveforms
Review window.
I. Color indicates status. Red, patient alarm; Yellow, equipment or patient alert; Green, patient vital signs
within limits and normal equipment operation; Blue, intentional disconnection
