138 Chapter 9 Status icons Welch Allyn Acuity Central Monitoring System
Patient/monitor status icons
Patient/Monitor status icons show status and act as buttons to open patient Virtual
Monitors and Waveform Windows.
Locations of patient/monitor status icons
Patient/monitor status icons appear on the Acuity Central Station screen in these
locations:
• On the map at patient locations
• In the corresponding Waveform Window
• In the corresponding Virtual Monitor
Opening patient windows by clicking patient/monitor status icons
You can open a patient’s Waveform Window or Virtual Monitor by clicking patient/monitor
status icons.
To open a patient’s Waveform Window and Virtual Monitor
1. Click a patient’s map icon to open the patient’s Waveform Window.
2. Click one of these icons to open the patient’s Virtual Monitor:
• The patient/monitor status icon in the patient’s Waveform Window
• The patient’s map icon

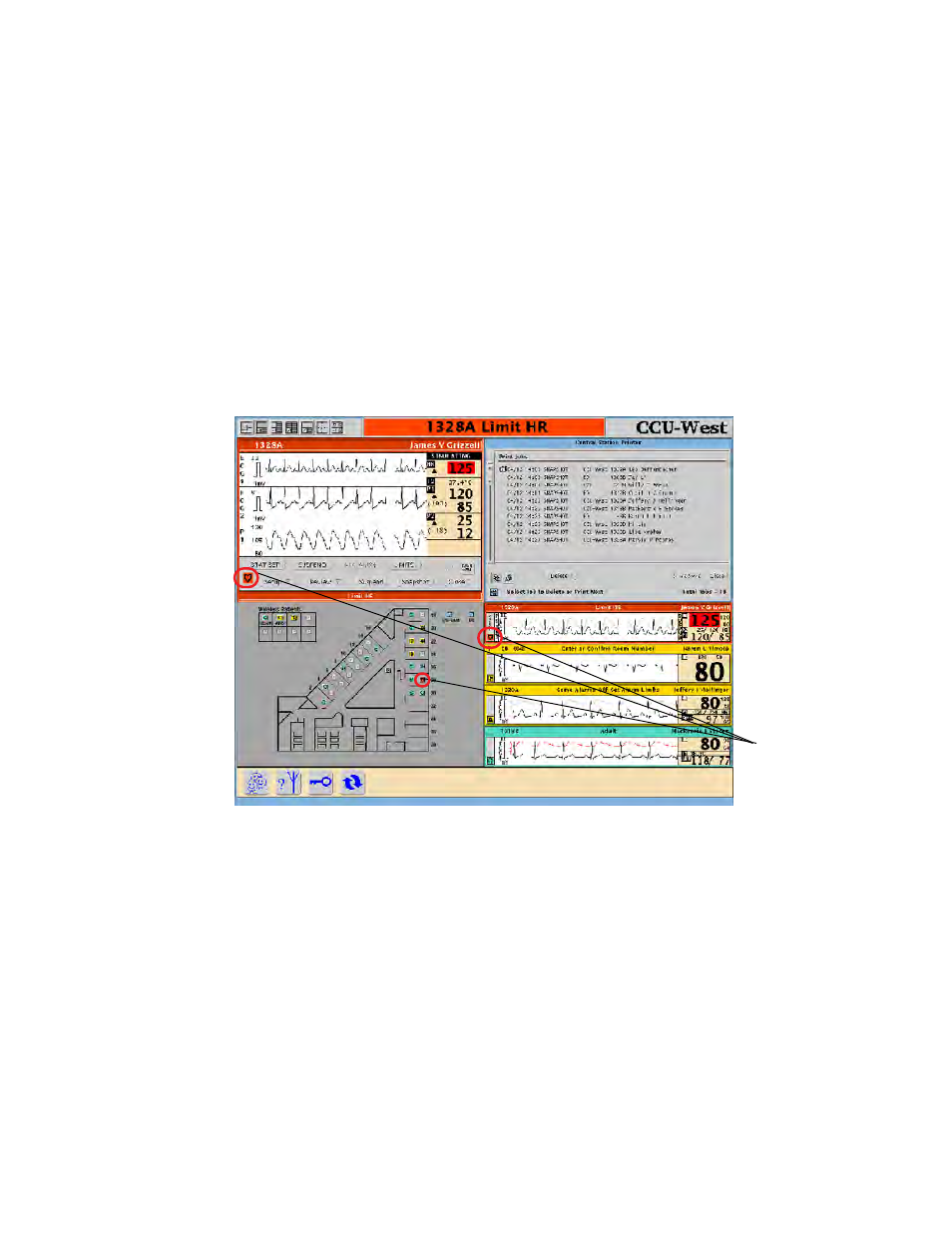

Corresponding
patient/patient
monitor status
icons
Note If you are viewing from a Patient List Review (PLR) station, see “To open a
Waveform Window on a PLR station screen” on page 12 for instructions.
