Adjust the waveform display

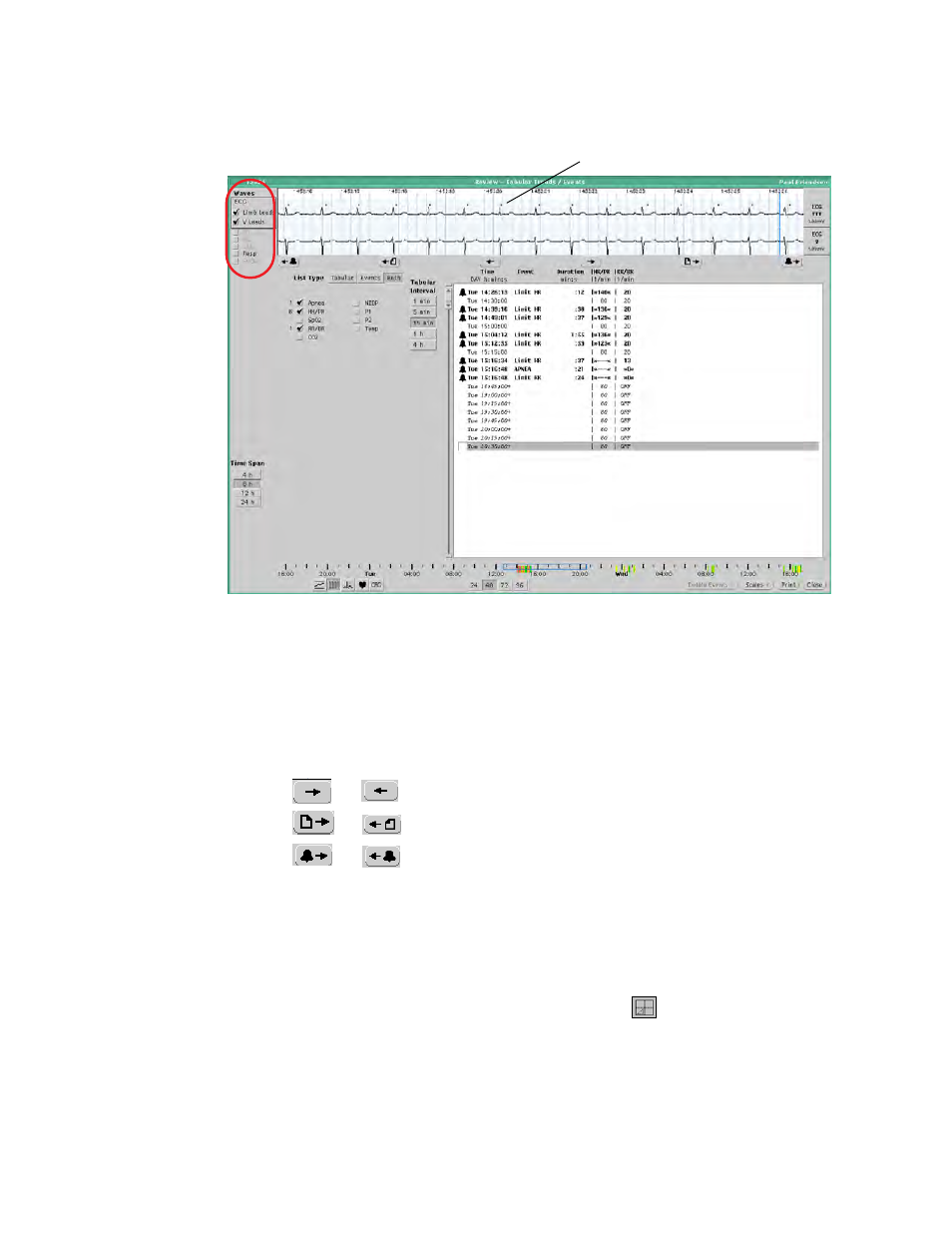

To display waveform(s) that correspond to a trend or event in the tabular list
1. In the list, locate a trend or event in which you are interested.
2. Click the trend or event.
The corresponding waveform(s) appear in the waveform pane.
3. Scroll the waveform.
Click or to scroll forward or backward.
Click or to page forward or backward.
4. Click or to jump to the next or previous alarm.
The associated event is highlighted in the list.
To select and adjust the waveform(s)
1. Check one or two boxes under Waves to view waveforms for corresponding vital
signs or ECG lead sources.
If you see only one waveform and you prefer two, click in the upper left corner of
the Acuity System screen to change to the full-screen view.
2. Click Scales, and then make a selection.
Beat labels: Normal ( • ) and ventricular ( v )
