Locate resistor R3 on the front panel board (mounted on the front panel). If R3 is positioned above the
board on its leads as shown in Figure 55, push it over to one side of the outline as shown. Be sure you don’t
push it so far its leads might touch the solder pads for other components on the board.

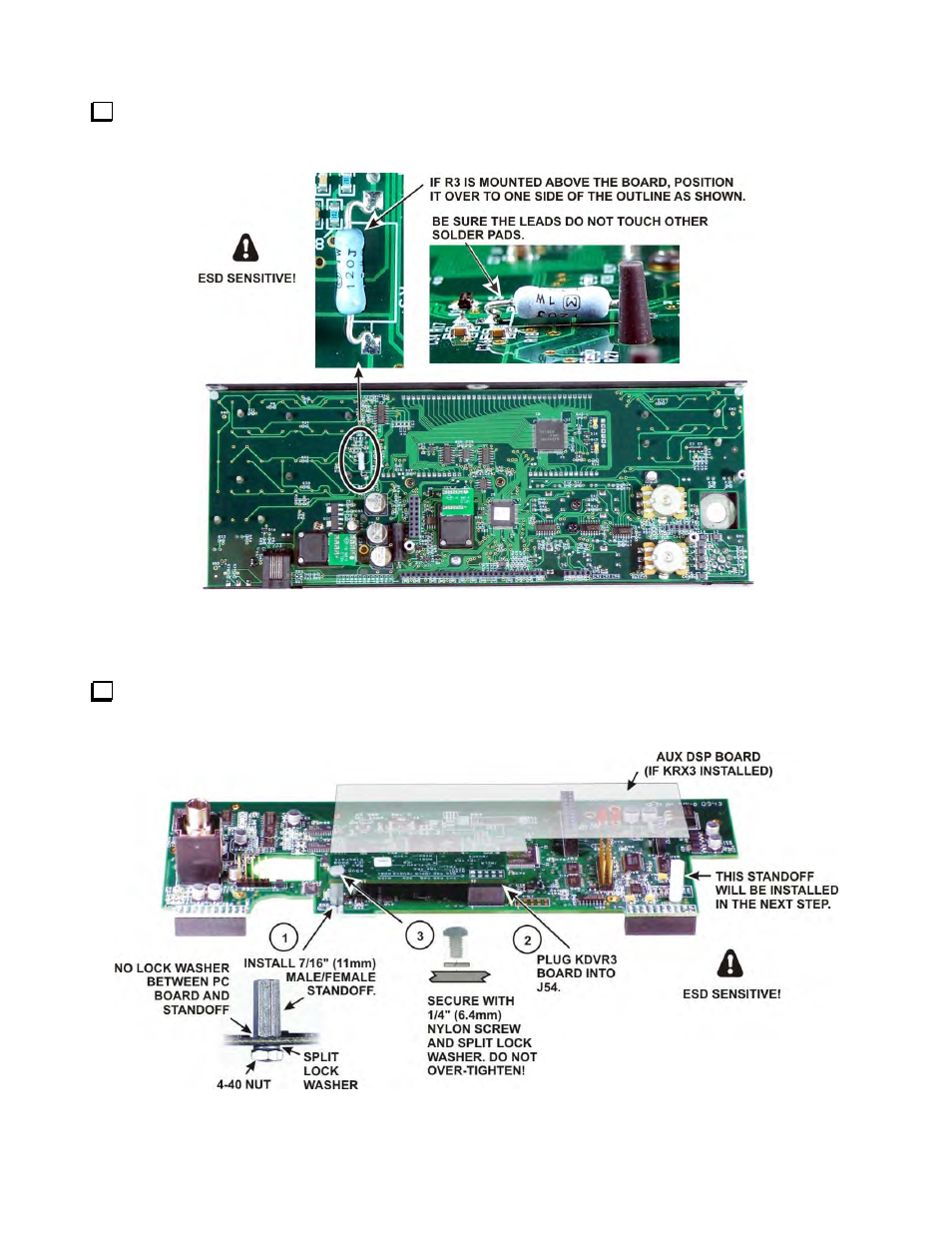

Figure 55. Positioning R3 on the Front Panel Board.
Installing the KDVR3 Digital Voice Recorder Option
If you have the KDVR3, install it on the main DSP board as shown in Figure 56. The required hardware is
included in your KDVR3 kit. If you did not purchase the KDVR3, skip this step and continue with Mounting the
DSP Board Assembly on the Front Panel on 42.
Figure 56. Installing the KDVR3 Board.
