Elecraft K3 Assembly Manual User Manual
Page 18
17
Install the Low Power Amplifier (LPA) board in the cutout on the RF board as shown in Figure 12. The
LPA board is held in place by its connectors until the bottom cover is installed..

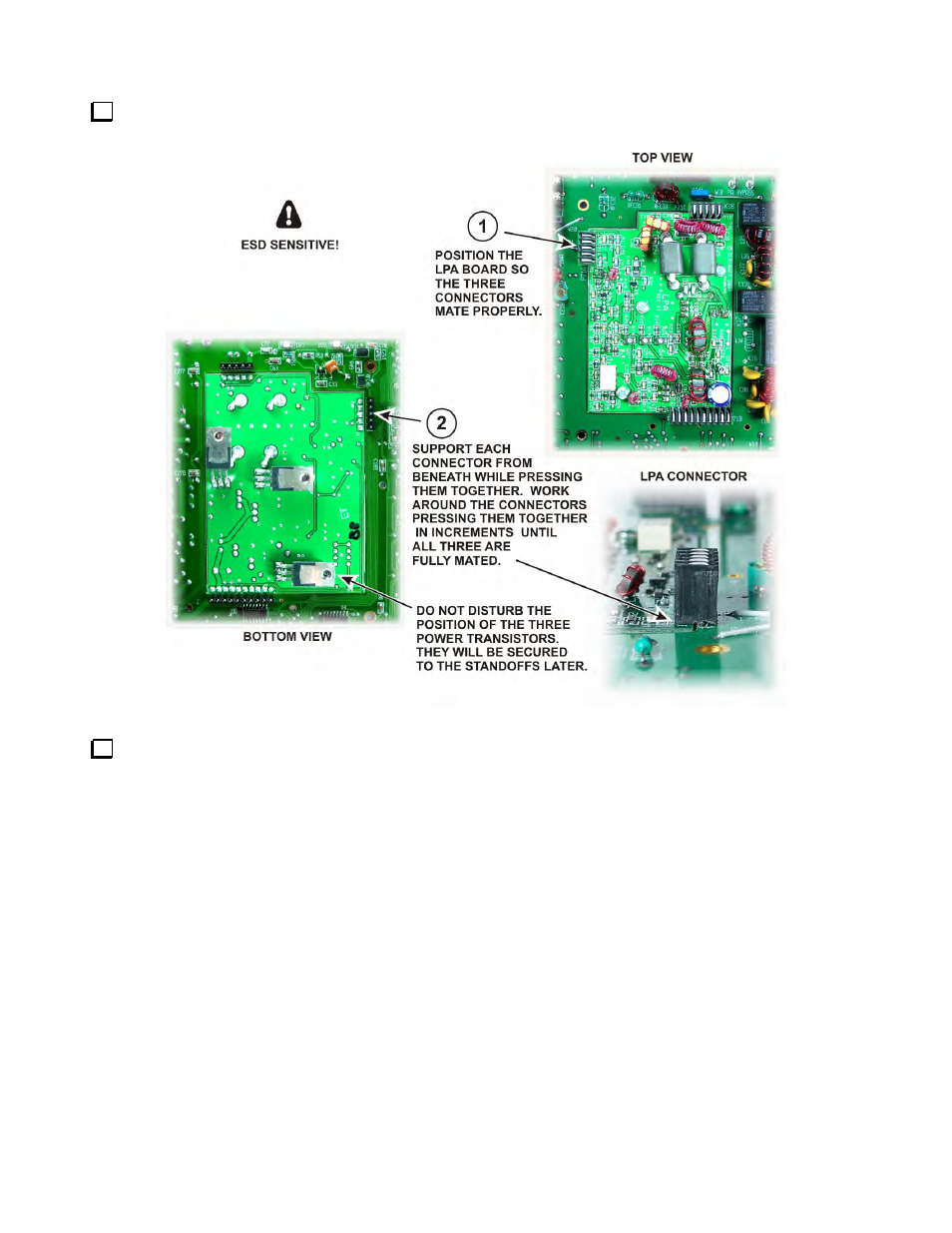

Figure 12. Installing the Low Power Amplifier (LPA).
Check all three LPA connectors shown in Figure 12 to ensure they are fully mated as shown. If they are not
fully mated, the transistors will not rest against the K3 bottom cover as required when it is fitted later.
