Mount a 2D fastener on each ear of the front panel shield, and then mount the shield on the RF board as
shown in Figure 13. Be sure the 2D fasteners are oriented with the widest part between the two holes and the
edge toward the outside as shown.

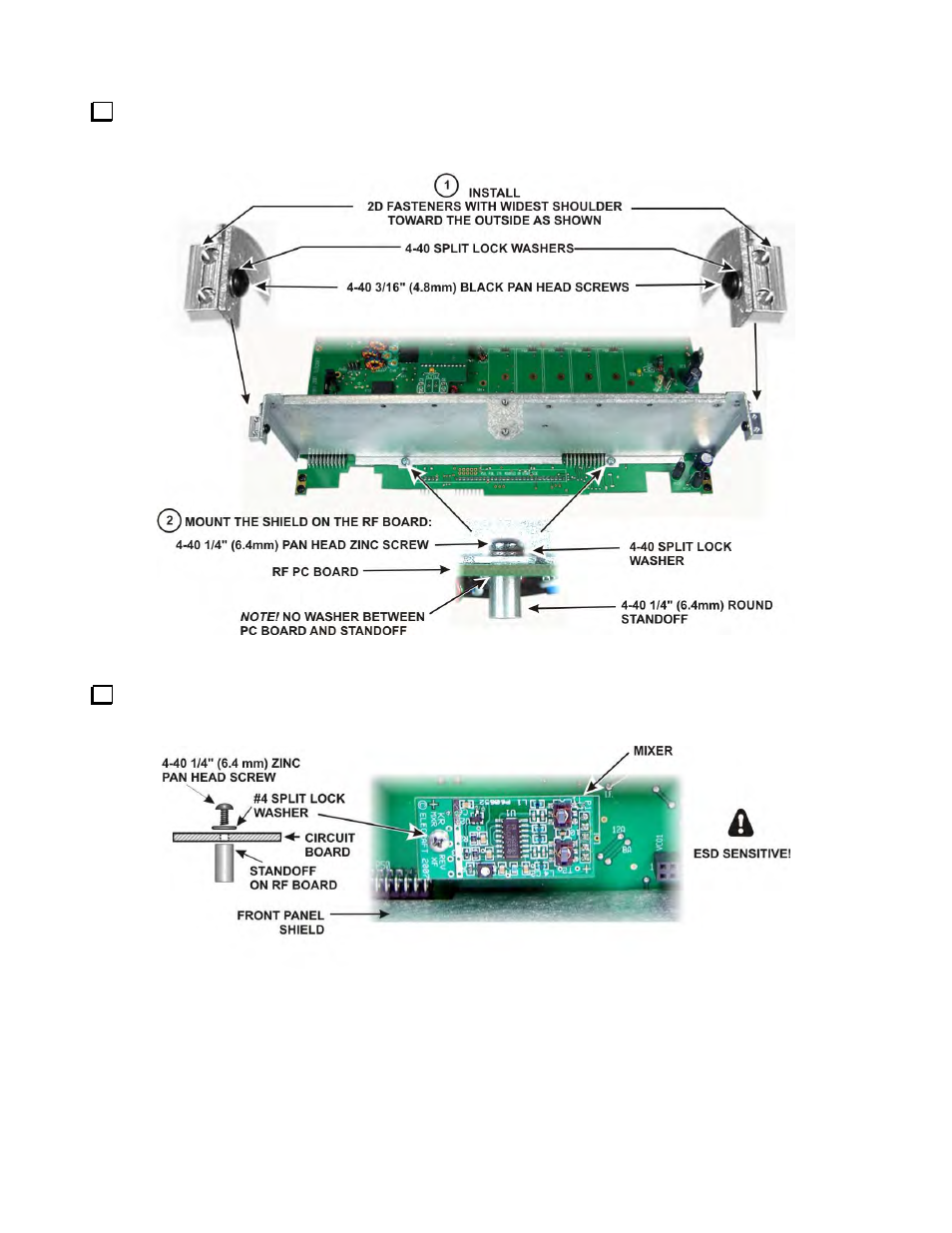

Figure 13. Installing Front Panel Shield.
Mount the K3 mixer board on the RF board as shown in Figure 14. The mixer plugs into Z1 on the RF
board.
Figure 14. Installing Mixer Board.
