Storage Center 5.5 System Manager User Guide

Servers

Viewing Server Connectivity

1 In the system tree, select a server.

2 Click the Connectivity tab. The ports listed in the Server HBA window are displayed.

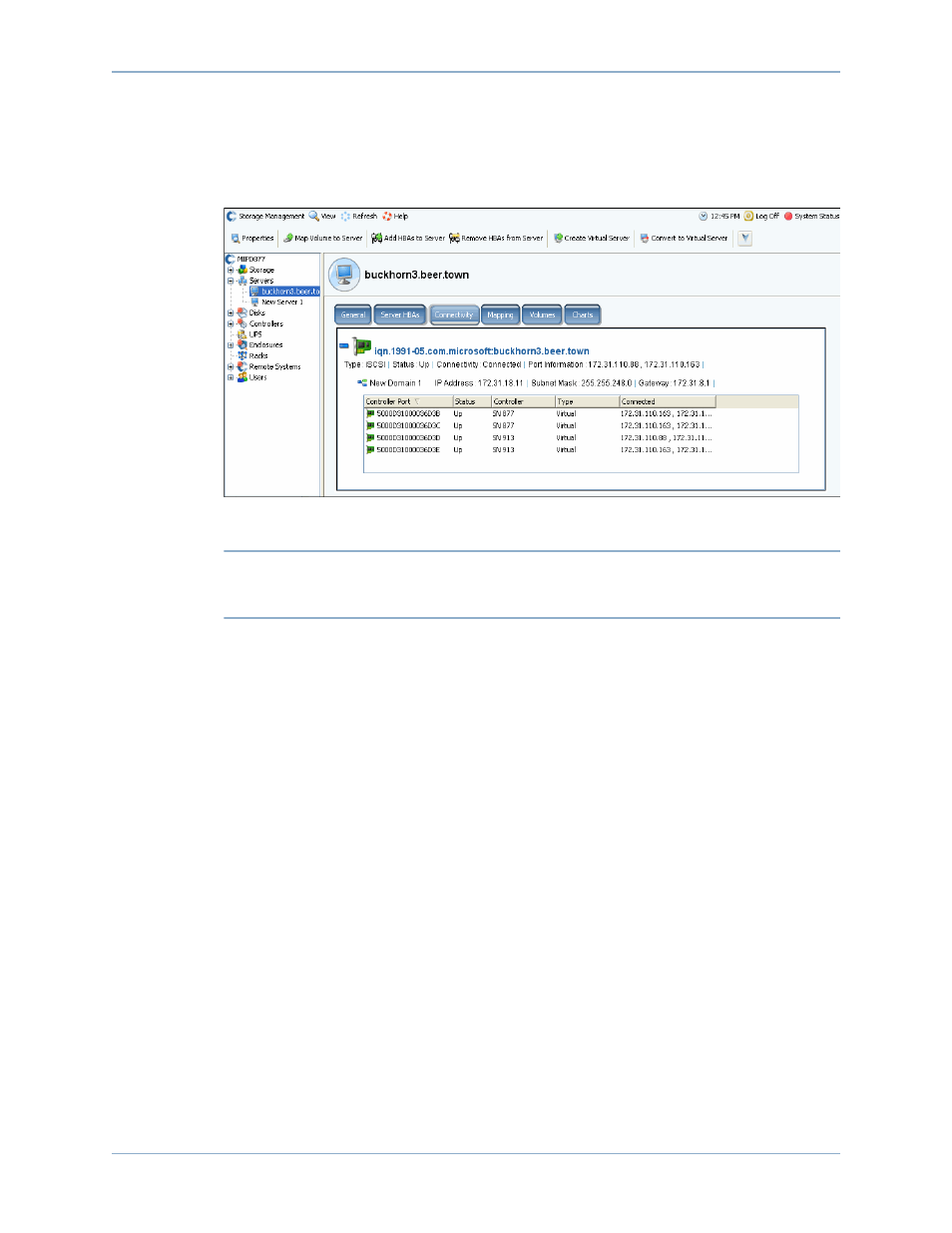

Figure 41. Viewing Server Connectivity

Note

The figure above shows a sample connectivity window for iSCSI. For Fibre Channel,
this window displays the WWN and there is no IP address, Subnet Mask, or
Gateway.

The Connectivity window displays individual HBAs connected to the Storage Center across
controller ports and fault domains.
