Configuring Local Ports

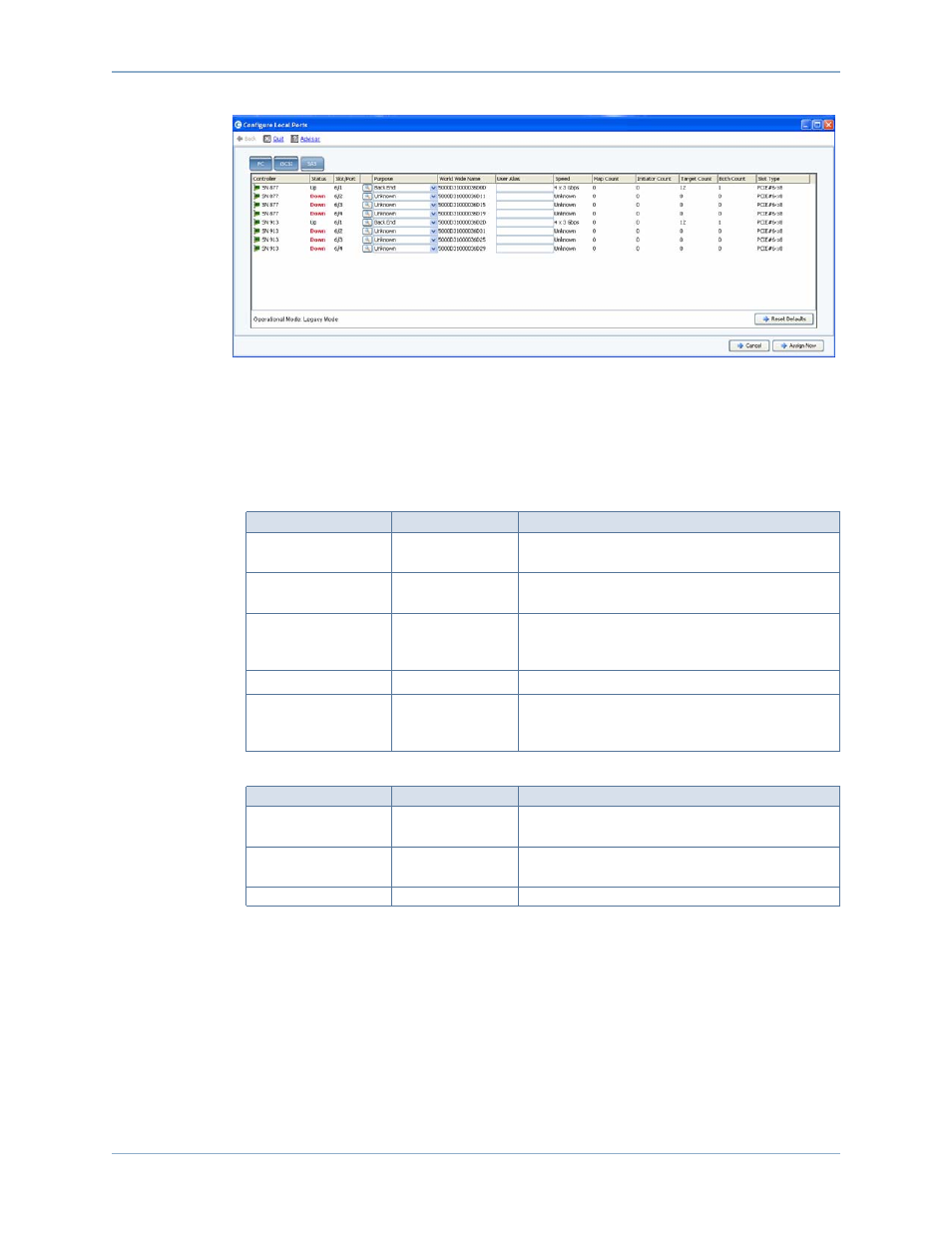

Figure 168. Configure Local Ports – SAS Tab / Legacy Mode
User Configurable Columns
The following columns are user configurable on all tabs:
•
Purpose: Valid values for port purpose vary by transport type and by operational
mode.
•
Fault Domain: Allows you to change the Fault Domain or set to
User Alias: Allows you to enter descriptive, user-friendly names for physical ports.
The defined name will be displayed as the port name in the System Manager
interface.
The following buttons are available and vary by transport type and by operational mode:
•
Edit Fault Domains (FC and iSCSI tabs): See
Editing Fault Domains (FC and iSCSI
Port Purpose
Transport Type Legacy Operational Mode
Unknown
All
Port purpose is not yet defined, or the port is
unused.
Front End Primary
FC and iSCSI
Port is connected to servers and is used for the
server IO path.
Front End Reserved
FC and iSCSI
Port is connected to servers and used as a failover
path. Only used for dual-controller Storage Center
systems.
Back End
FC and SAS
Port is connected to disk enclosures.
Direct Connect
FC and iSCS
Port is directly connected to another Storage
Center controller and is used for inter-controller
communication.
Port Purpose
Transport Type Virtual Port Operational Mode
Unknown
FC and iSCSI
Port purpose is not yet defined, or the port is
unused.
Front End
FC and iSCSI
Port is connected to servers and is used for the
server IO path.
Back End
FC and SAS
Port is connected to disk enclosures.
