Dell Compellent Series 30 User Manual
Page 372
364
Storage Center 5.5 System Manager User Guide
Additional Hardware

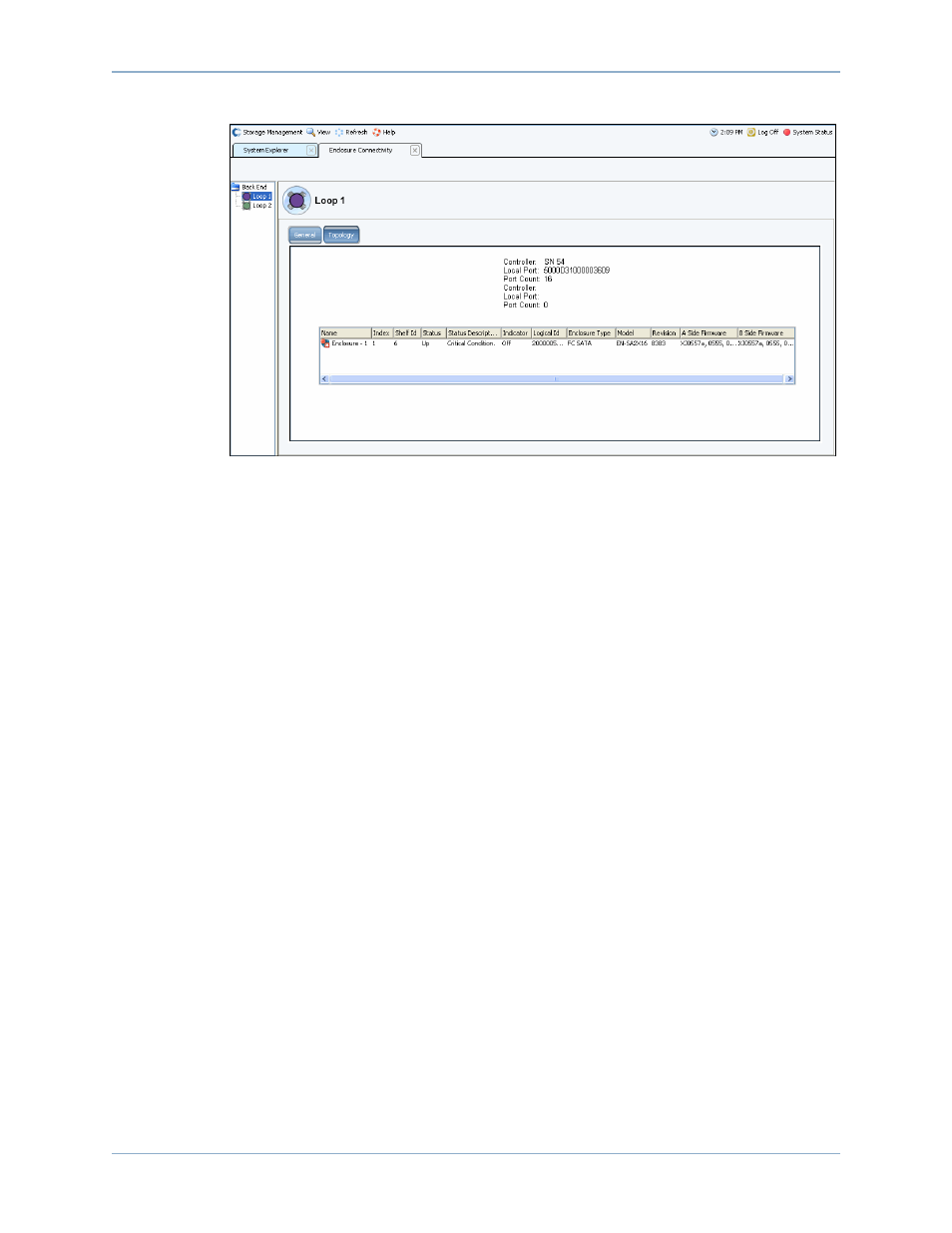

Figure 294. Enclosure Connectivity
For back end loops, the window displays:
•
Enclosure name
•
Index
•
Shelf Id
•
Status
•
Status Description
•
Indicator
•
Logical Id
•
Enclosure type
•
Model
•
Revision
•
A and B Side Firmware
2 Click on the Topology tab to view a map of the system loops.
