150 Storage Center 5.5 System Manager User Guide
Controllers
Viewing FC Folders and Cards
Viewing FC Folders
In the system tree, expand controllers and IO cards to view the FC card folder. The FC
status window appears.

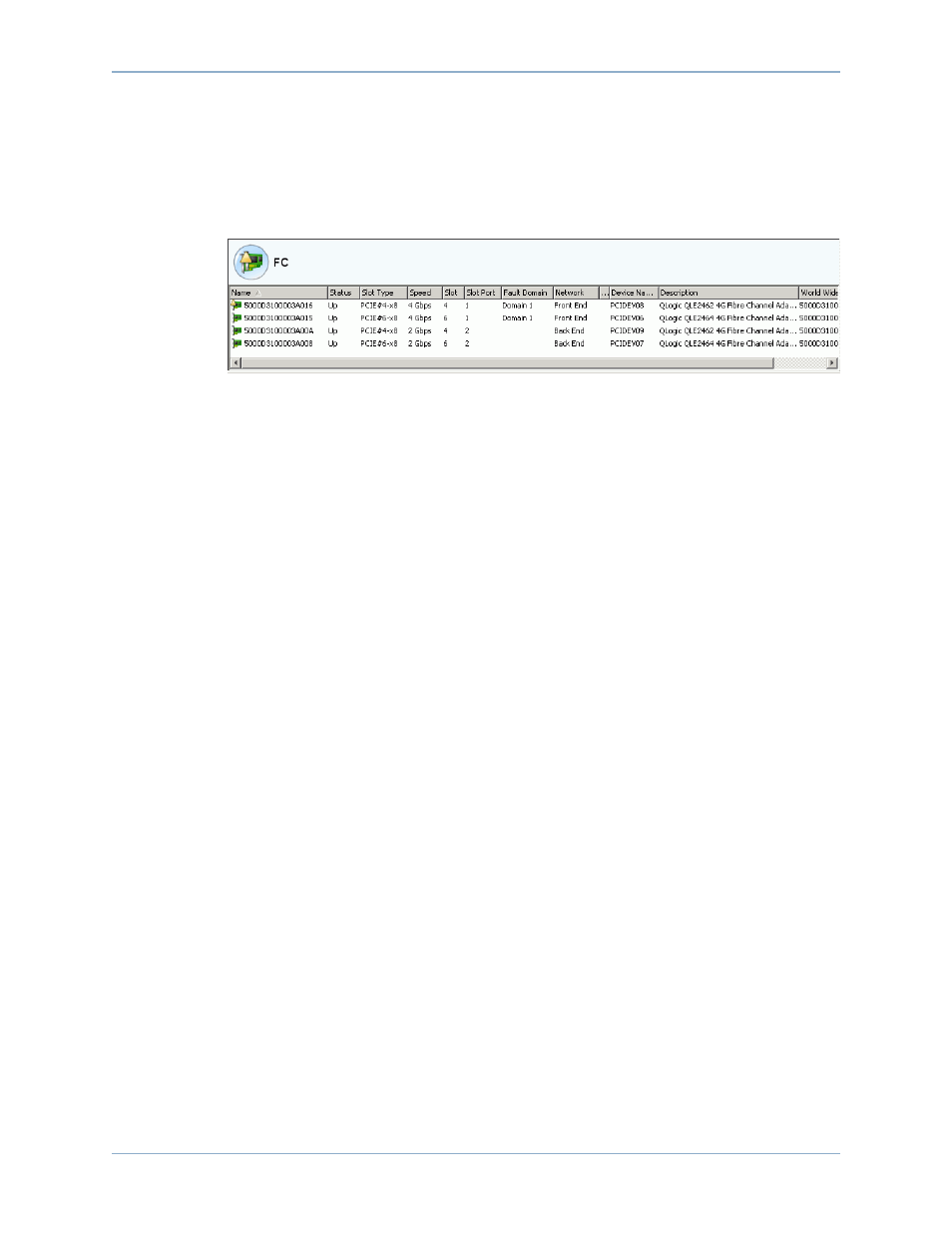

Figure 118. FC IO Card Folder
The folder window displays:
• Name
• Status: Up or Down
• Slot Type: such as PCI
• Speed
• Slot: Number in the controller
• Slot Port: Port number
• Fault Domain
• Network: Whether the card is configured front end, back end, or unknown.
• Device Name: Type of card
• Description: Identification of the card
• Worldwide Name: Unique name for this item
