Viewing FC Folders and Cards
• Description: Identification of the card
• Status: Up or Down
• Speed: IO speed
• Fault Domain: If port is front-end, shows fault domain. If port is back-end, this is blank.
• Network: Whether the card is configured Front End, Back End, or Unknown.
• NPIV Mode: Indicates whether NPIV Mode is turned on to allow FC Virtual Ports. To
convert an FC port to Virtual Mode, NPIV must be enabled on the attached switch.
• Initiator Count: Number of front end devices
• Target Count: Number of disk drives
• Both Count: Total of front-end devices and back-end disk drives
• Map Count: Number of volumes mapped to this system

To view general information for an FC port – virtual ports
1 In a Controller folder, select an Virtual Port. The Virtual Port General Information
window appears.

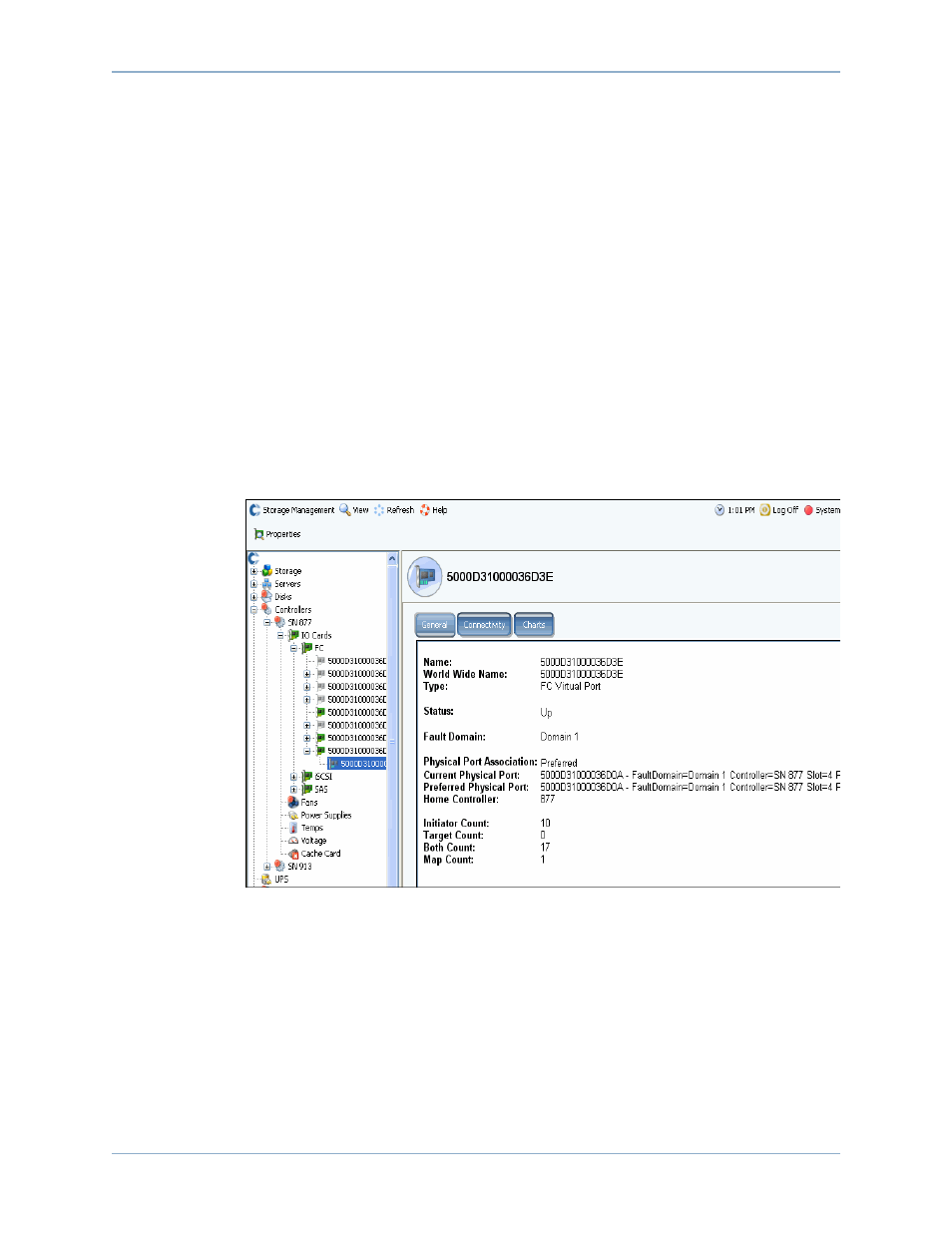

Figure 121. FC IO Card General Information – Virtual Port
The window displays:
• Physical Port Association: Preferred or Not Preferred
• For both the Current and the Preferred Physical Port, the window displays:
• World Wide Name
• Fault Domain
• Name of the Controller
