144 Storage Center 5.5 System Manager User Guide
Controllers
Viewing Controller Properties
Viewing General Controller Properties
1 In the system tree, select a Controller.
2 From the shortcut menu, select Properties. The Controller Properties window
appears with the general tab selected..

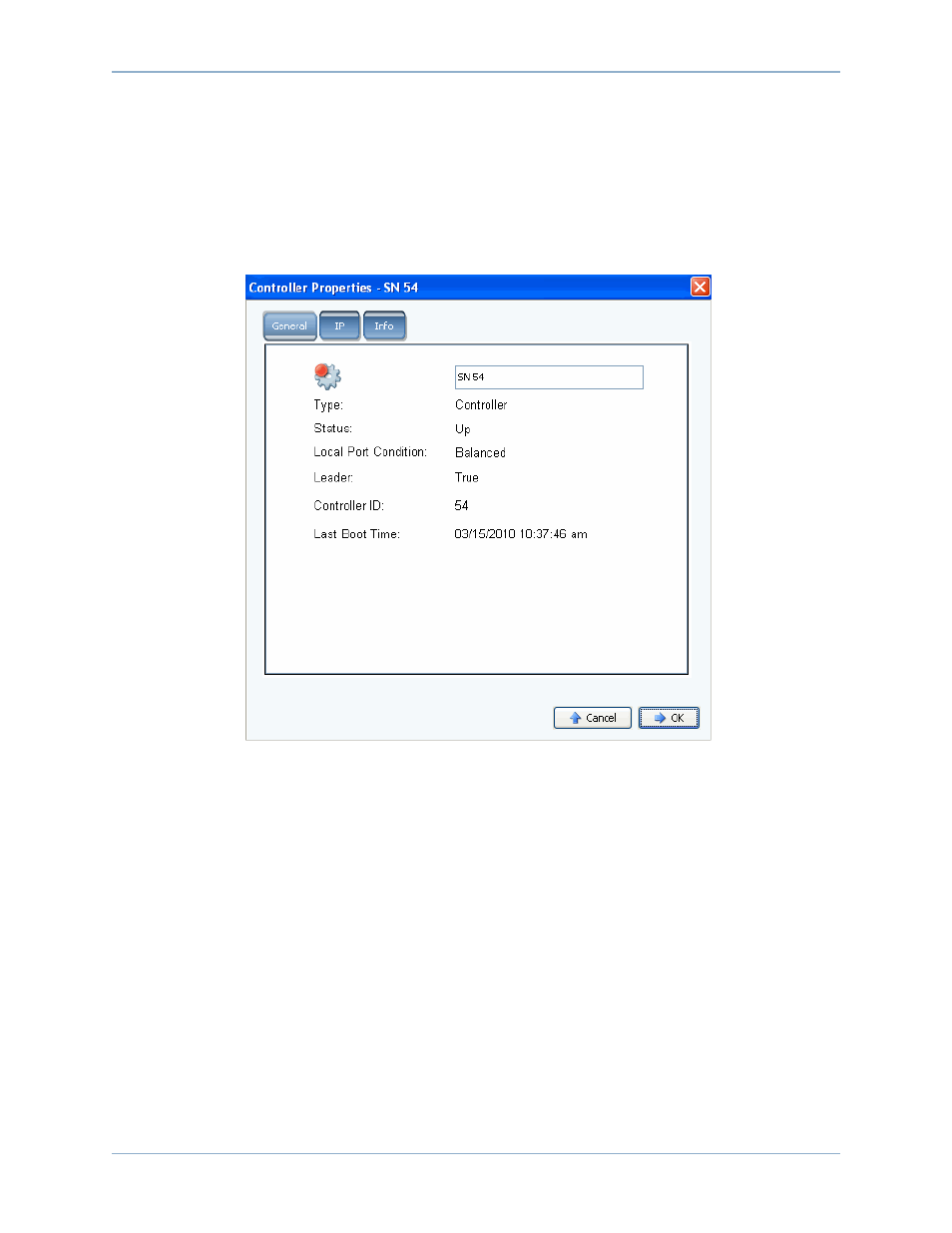

Figure 112. Controller General Properties
3 System Manager displays:
• Controller Name: Enter a new controller name and click OK.
• Type: of component in Controller Properties window is controller.
• Status: can be Up or Down
• Local Port Condition: can be balanced or unbalanced.
• Leader: This controller is either the leader (true) or not the leader (false). If a
controller is not the leader, it is a peer.
• Controller ID: A number that identifies this Storage Center system.
• Last Boot Time: Date and time of last reboot.
4 Click OK.
