Viewing iSCSI Cards
Viewing iSCSI Cards
Viewing iSCSI Folders

To view iSCSI card folders – legacy mode
To view controllers, for each controller in the system tree, select an iSCSI card folder. The
system lists iSCSI cards on the selected controller.

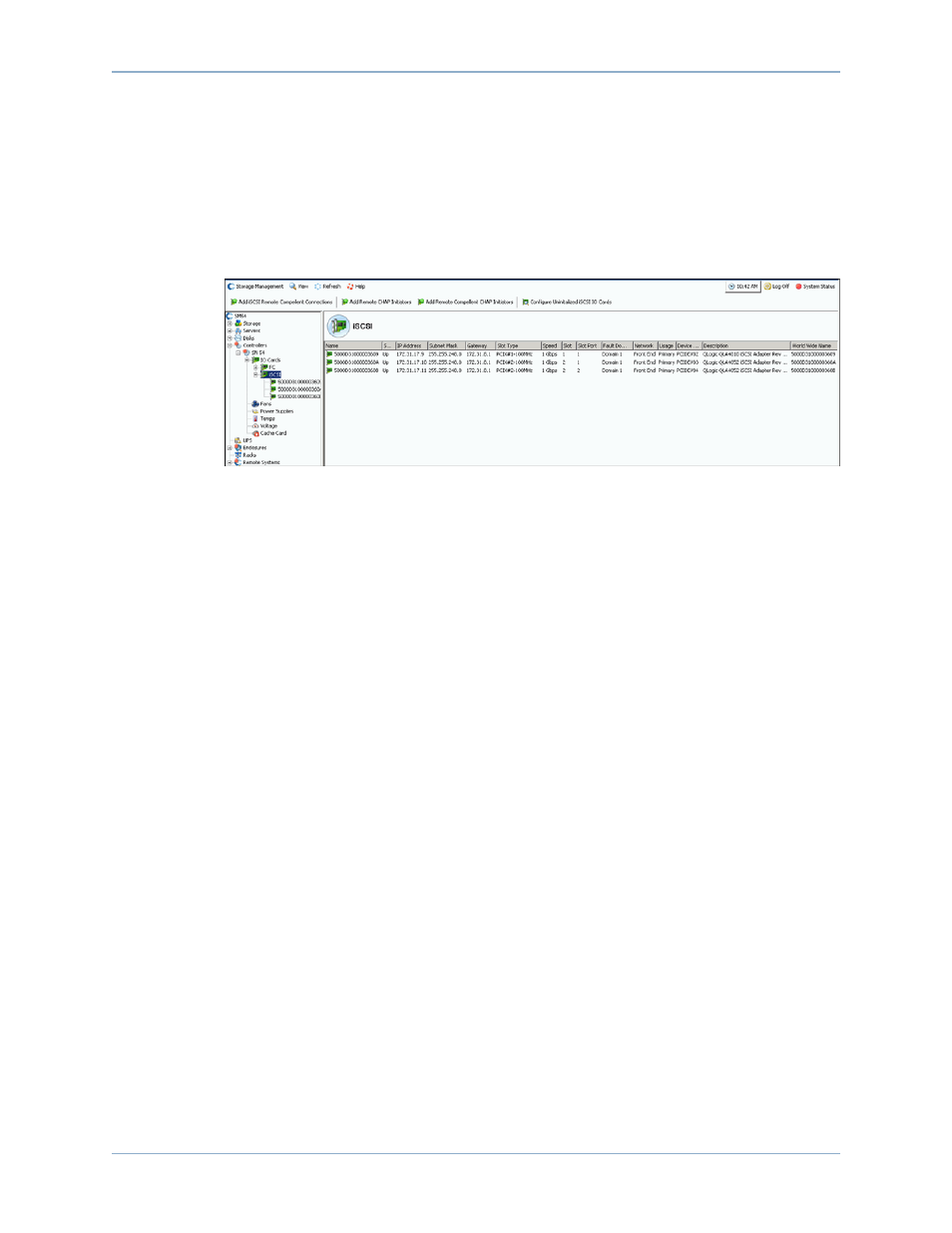

Figure 127. iSCSI Card Folder in Legacy Mode
System Manager displays
• Name
• Status: Up or Down
• IP Address, Subnet Mask, and Gateway
• Slot Type: such as PCIE or PCIX
• Speed
• Slot and Slot Port
• Fault Domain
• Network
• Usage: Primary or Reserved
• Device Name
• Description: of the adapter, such as QLA4010 or QLA 4052
• World Wide Name

To view iSCSI card folders – virtual port mode
A Control Port was created during Virtual Port setup for each iSCSI Fault Domain (and
usually there is only one). The system communicates to the iSCSI ports through the Control
Port address. The Control Port resides in the system tree within the iSCSI folder. In a dual-
controller system, the Control Port can reside within the iSCSI folder of either controller; all
iSCSI ports on both controller in the same Fault Domain use the same Control Port. Traffic
is redirected to the appropriate Virtual Port.
