Additional Hardware

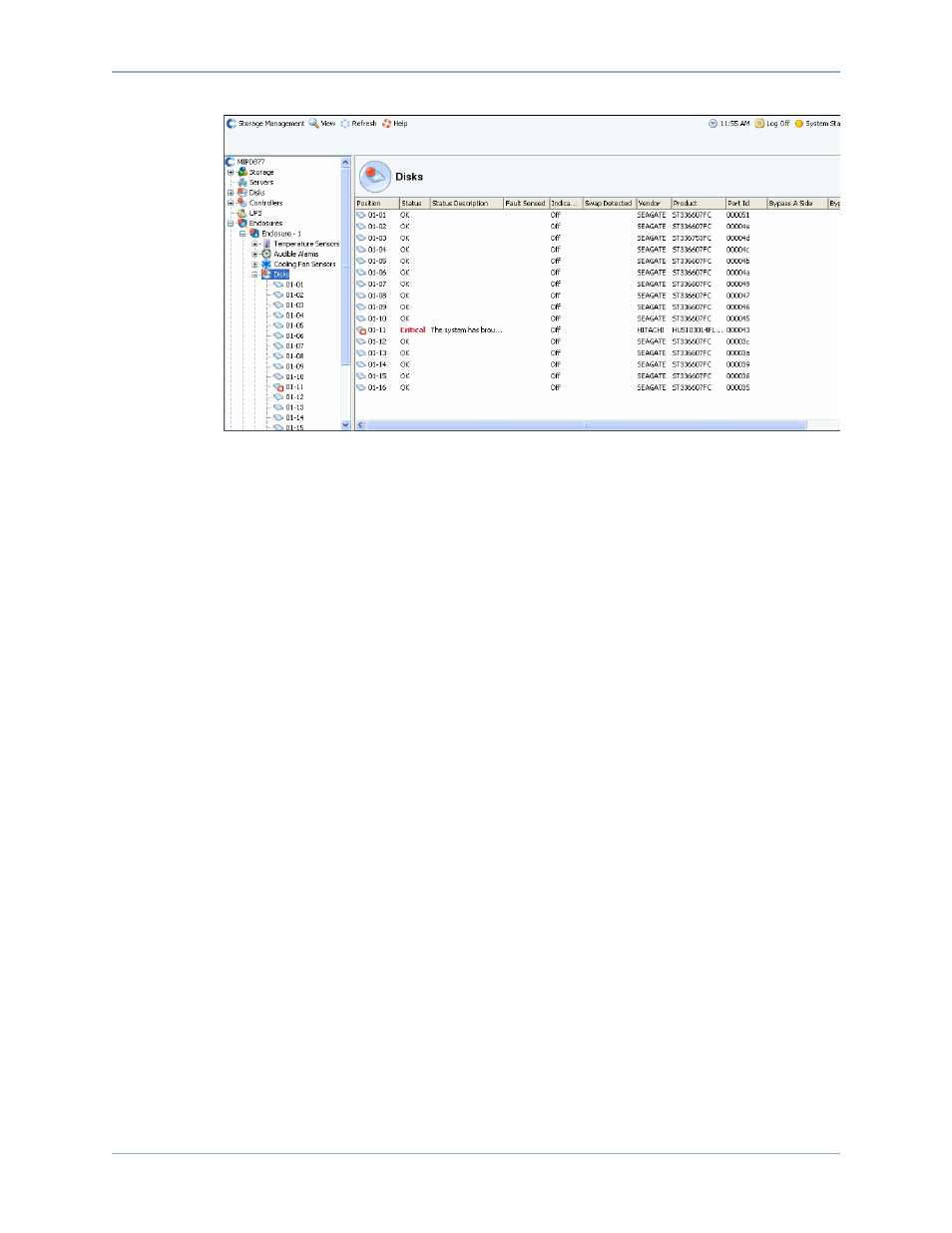

Figure 296. Physical Disk
2 If a slots is empty, the status is Not Installed. For disks that Storage Center recognizes,
the System Manager displays:
• Status
• Status Description
• Fault Sensed
• Indicator
• Swap Detected
• Vendor
• Product
• Port ID
• Bypass A Side
• Bypass B Side

To view status information for a single disk
In the system tree, select a disk. The System Manager displays general status and location.
Status can be green (good), red (failed), or gray (no disk).

To identify the physical location of a disk
1 In the system tree, select a disk.
2 From the shortcut menu, select Indicator On.
The System Manager displays an amber light on the graphical user interface. Also, the front
of the physical drive shows a blinking amber light. To turn the indicator light off:
1 In the system tree, select a disk.
2 From the shortcut menu, select Indicator Off.
