Mapping an Existing Volume to a Remote System
Mapping an Existing Volume to a Remote System
If a volume to be replicated already exists, map it to the Remote System.
1 In the system tree, select an unmapped volume. (Alternatively, you can select a
multiple volumes. From the list of volumes in the main window, select more than one
volume.)
2 From the shortcut menu, select Map Volume to Remote System. A list of Remote
Systems appears.
3 Select a remote system. Click Continue. The system asks you to confirm. If your User
Volume Defaults permit, you can select Advanced options. Refer to Advanced Mapping
Options on page 74 .
4 Click Create Now. The volume is mapped to the Remote System.
Viewing Mapping Properties of Remote System
1 From the system tree select a Remote System.
2 Click the Mapping tab. Volumes mapped to the Remote System are displayed.

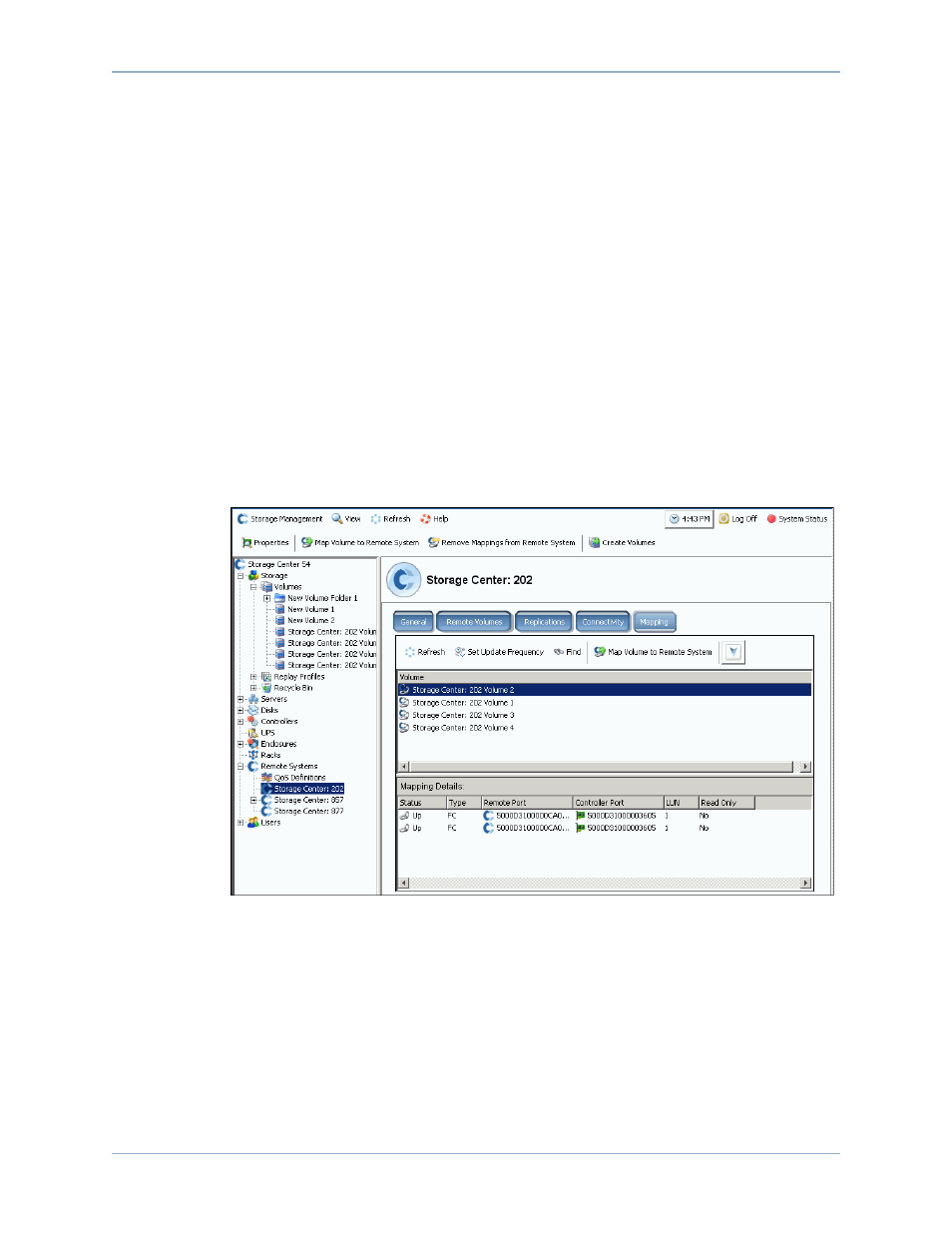

Figure 278. Remote System Mapping Window
