374 Storage Center 5.5 System Manager User Guide
Additional Hardware
Racks
The Rack utility shows the placement of the Storage Center components. The Rack is
displays only, but helps to identify the location of components.
Creating a Rack
1 In the system tree, select Racks.
2 From the shortcut menu, select Create New Rack. The Create Rack wizard appears.
3 Enter a name, foreign device URL, and rack size.
4 Click Continue. A window appears, listing system components.

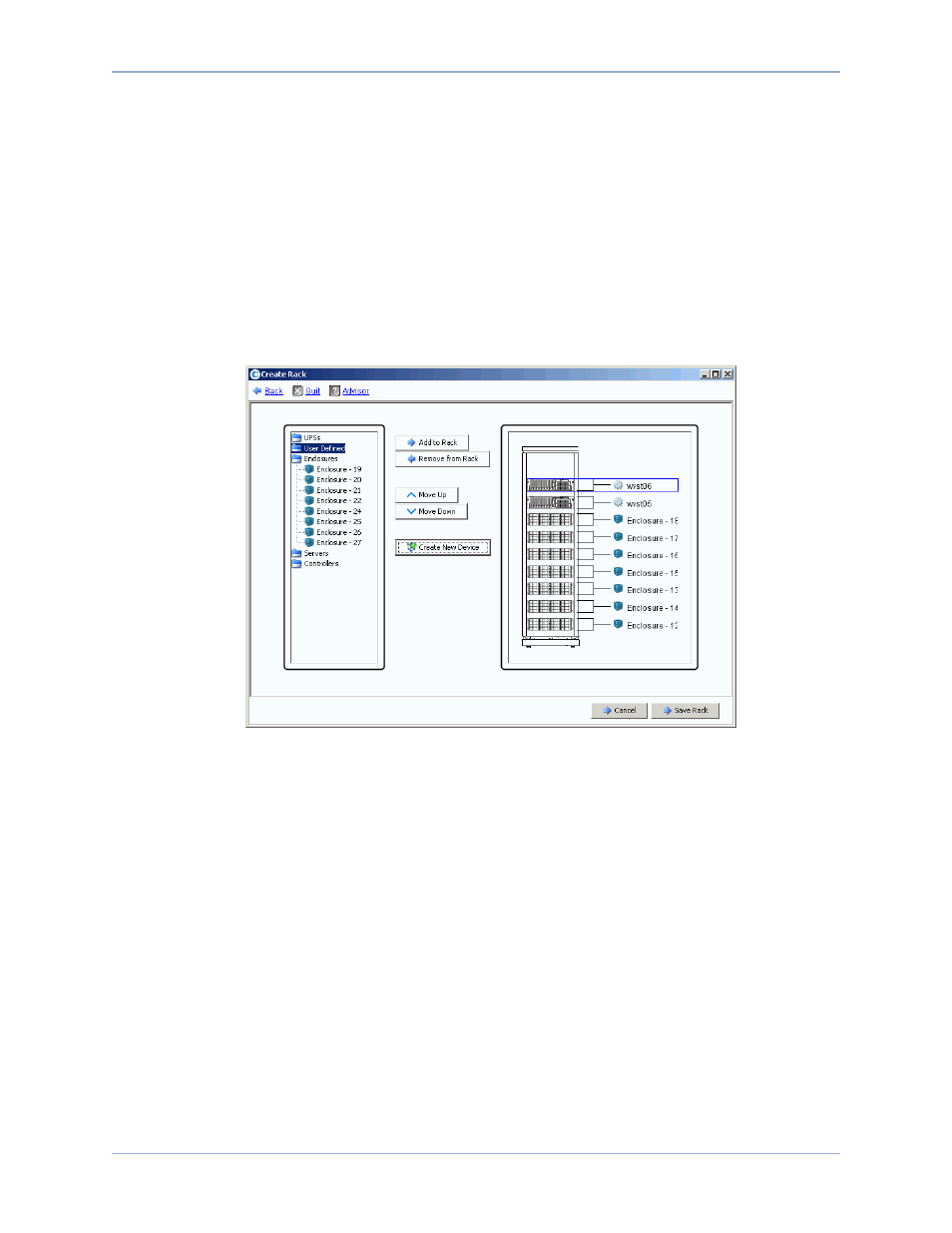

Figure 302. Build Rack
5 Select an item. Click Add to Rack. Move the item up or down as required.
6 Click Save Rack, or if necessary, select Create New Device. The Create Generic
Container window opens.
