Dell Compellent Series 30 - Manual (Page 166)

158 Storage Center 5.5 System Manager User Guide
Controllers
Changing FC Virtual Port Properties
From the Properties window, you can change either the fault domain or the preferred
physical port of the FC Virtual Port.

To change FC virtual port properties
1 Select a FC Virtual Port.
2 From the shortcut menu, select Properties. The FC Virtual Port Properties window
appears:

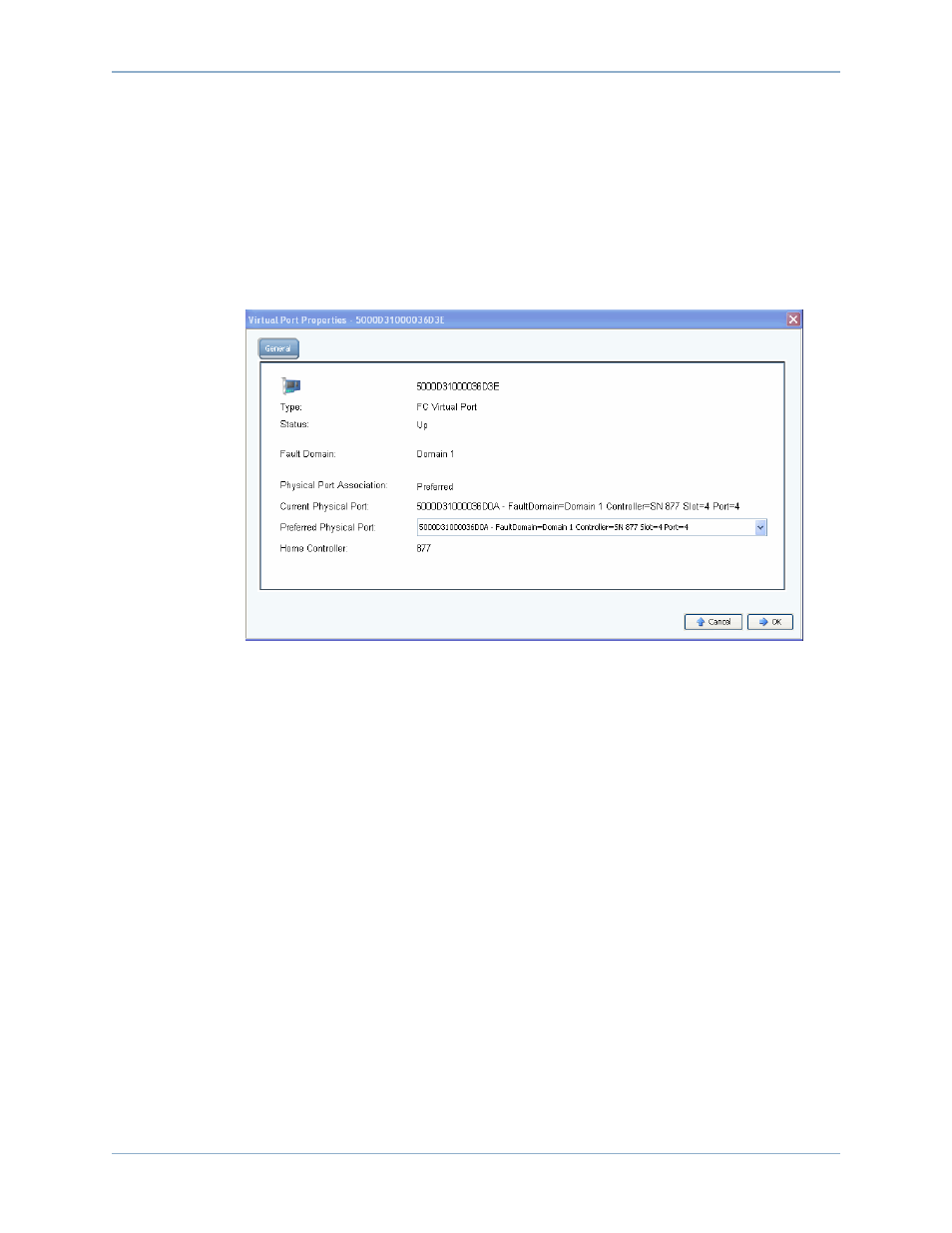

Figure 126. FC Virtual Port Properties Window
3 From the drop-down menu, change the Preferred Physical Port.
4 Click OK.
Changing and Resetting the User Alias
1 In the system tree, select an FC card.
2 From the shortcut menu, select Properties.
3 Enter a user alias (port name).
4 Click OK. The new name appears in the system tree.
1 In the system tree, select an FC card.
2 From the shortcut menu, select Properties.
3 Click Reset User Alias.
4 Click OK.
