Dell Compellent Series 30 - Manual (Page 419)

411
Configuring a Liebert™ UPS
16 When Authenticate Traps is enabled, Storage Center receives authentication traps
(traps generated by invalid attempts to log on to this device). To disable that ability,
unmark the check box.
17 Click Apply.
To modify or delete a trap receiver, first click its IP address or host name to access its
settings. (If you delete a trap receiver, all notification settings configured under Event
Actions for the deleted trap receiver are set to their default values.)
Configuring a Liebert™ UPS

To configure Liebert UPS
1 In a new browser window, enter the IP address, assigned or derived from DHCP. The
Monitor window appears.
2 Click the Configure tab. The Configuration Categories window appears.

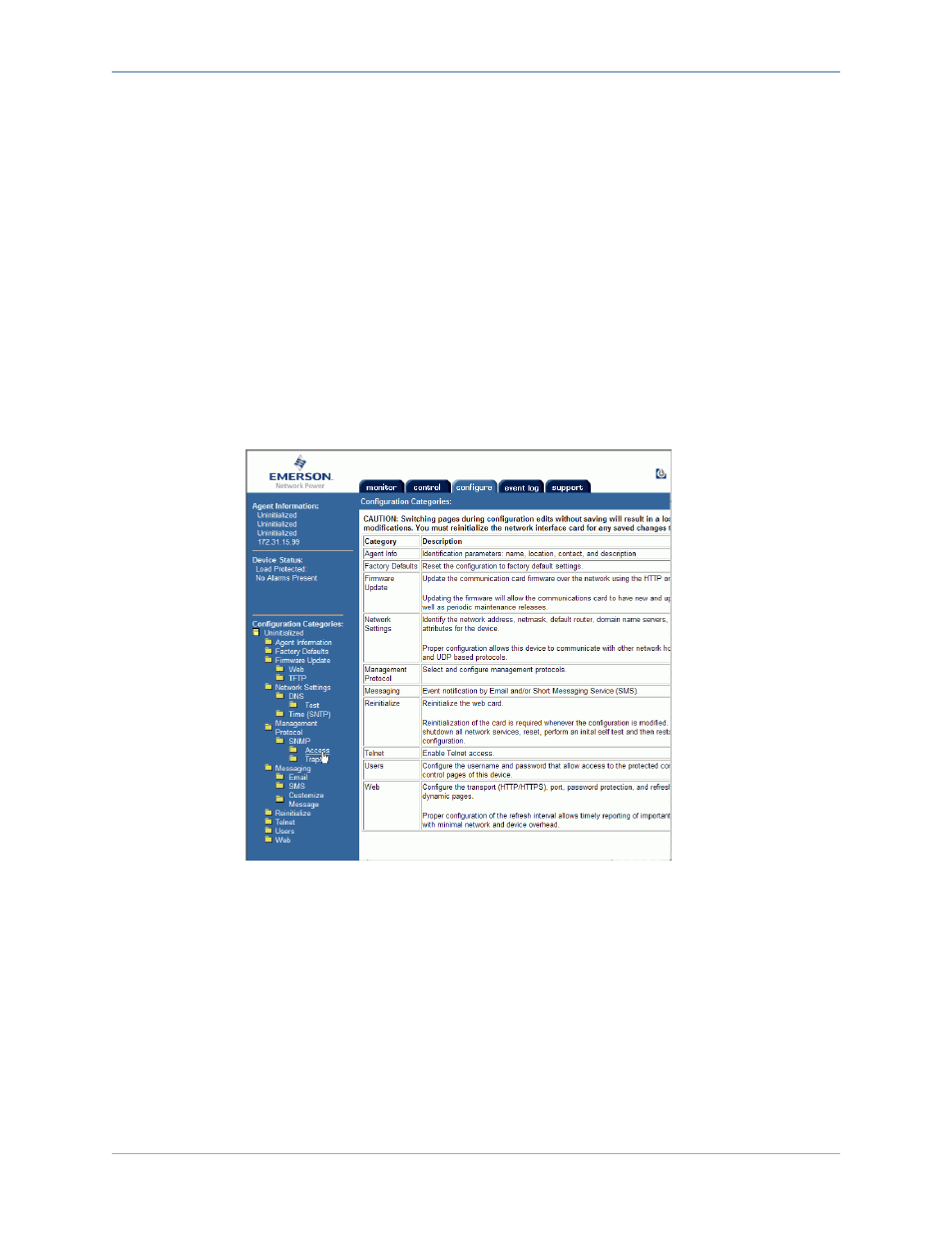

Figure 327. Liebert Configuration Window
3 From the tree on the left side, select Management Protocol > SNMP > Access.
4 The system may ask for a user name and password. Enter your user name and
password.
