Dell Compellent Series 30 - Manual (Page 403)

395
Manual Storage Mode
Changing RAID Stripe Width in Manual Mode
Once Manual Mode is enabled, the Storage tab in the System Properties window, described
in
Selecting RAID Stripe Width on page 230 , changes to System Storage Properties shown
in Figure 316.

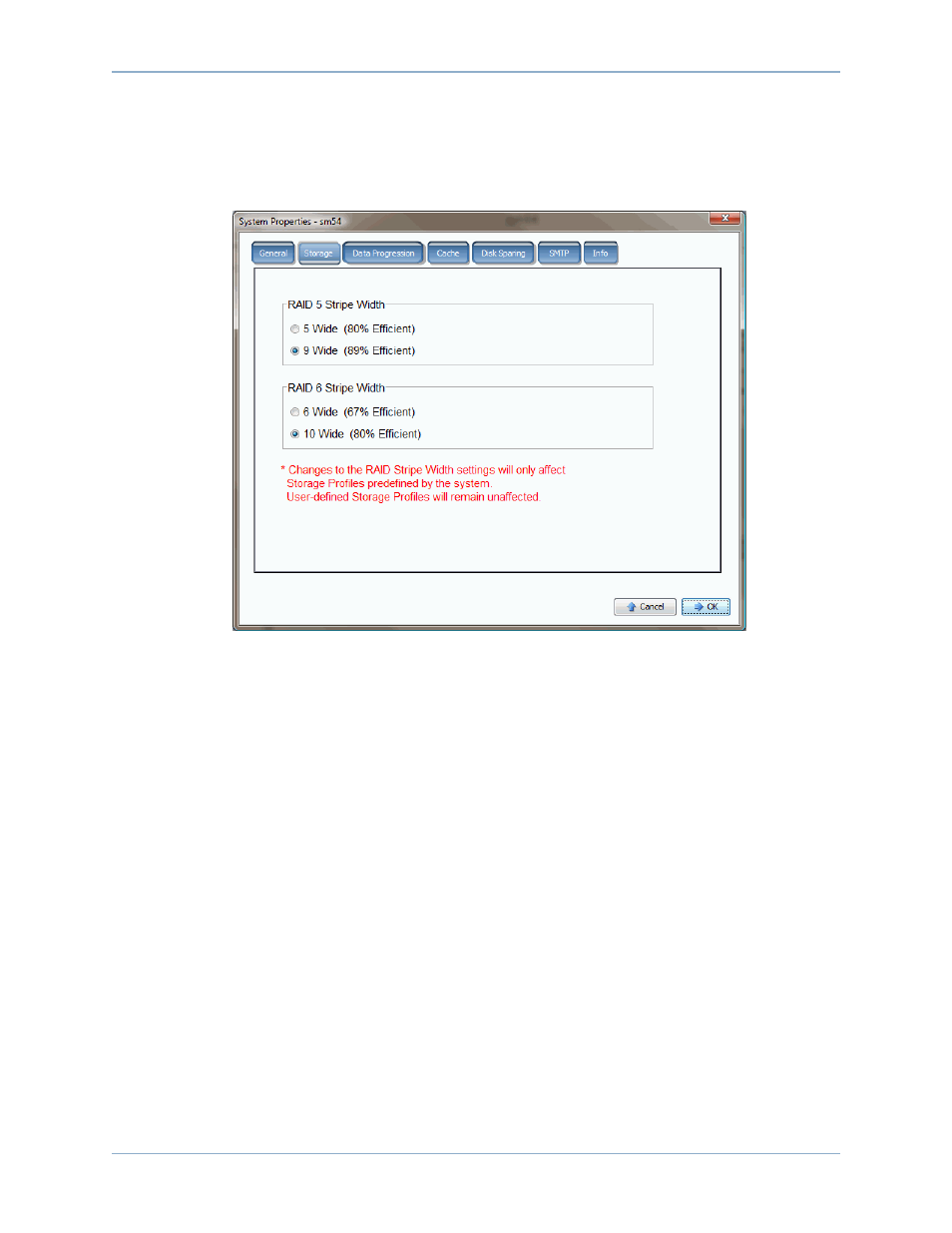

Figure 316. System Storage Properties in Manual Mode
If Manual Storage Mode is enabled and you change RAID stripe width in System Storage
Properties, changes only affect Storage Profiles created by the system, not Storage Profiles
that were created by users.
