Dell Compellent Series 30 - Manual (Page 194)

186 Storage Center 5.5 System Manager User Guide
Controllers

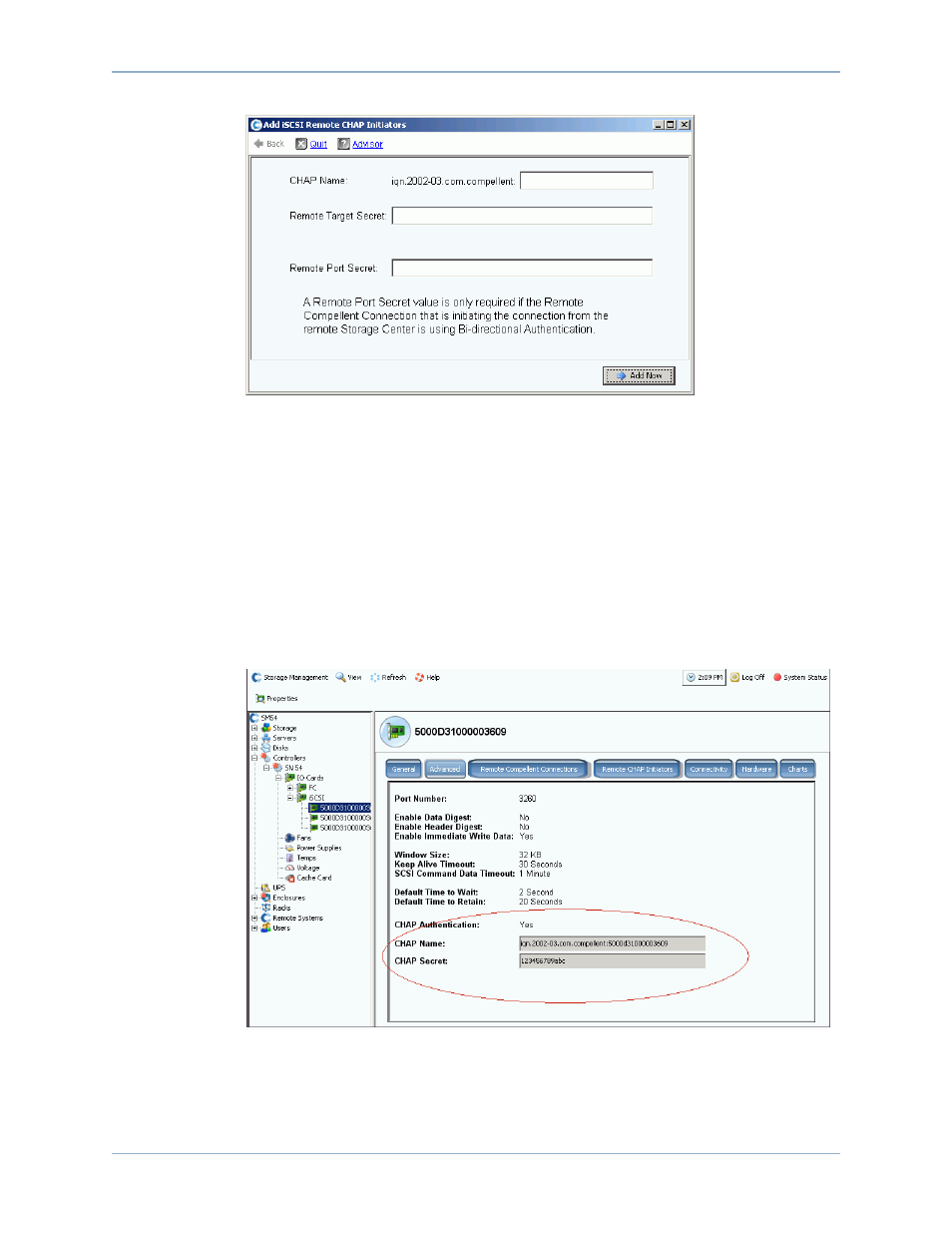

Figure 155. Add iSCSI Remote CHAP Initiator
4 Add the System 1 CHAP Name that appeared in the CHAP properties window. To finish
the CHAP Name, you can easily copy the iSCSI Alias from the IO Card or Control Port.
5 Add the Target Secret in the Remote Target Secret field that was in Step 7 on
page 184.
• If you are not using Bi-Directional CHAP, click Add Now.
• If you are using Bi-Directional CHAP, continue with , below.
6 If you are adding a Remote CHAP Initiator to a card that uses Bi-Directional
authentication, add the CHAP Secret for that card. The CHAP Name and CHAP Secret
appear in the Advanced Information for the initiator card.
Figure 156. Advanced Information for Card with CHAP Secret
