Controllers
Viewing iSCSI IO Card General Information – Virtual Ports
Click on an a Control Card. The following figure shows an iSCSI virtual port in the system
tree.

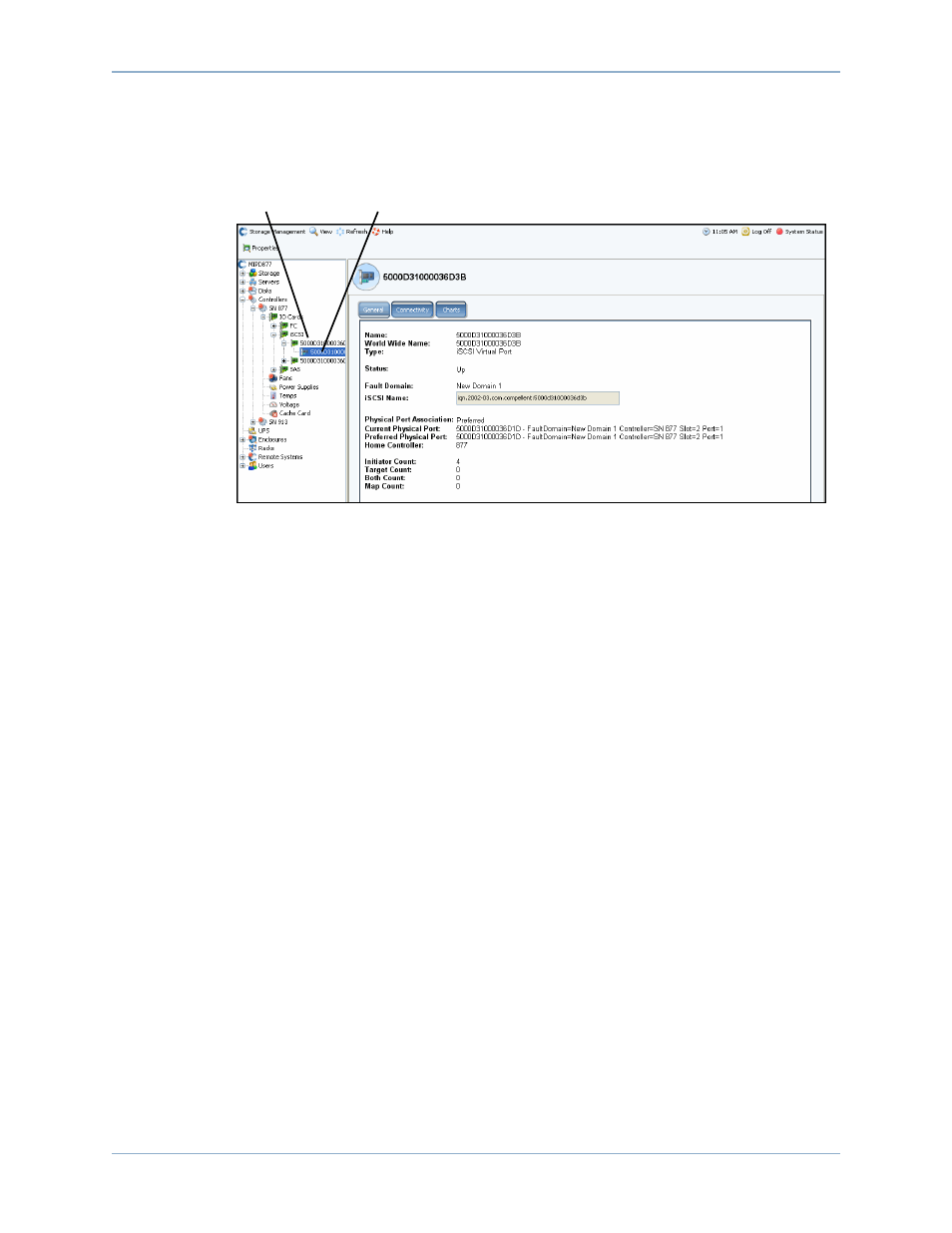

Figure 130. iSCSI Virtual Port Card Information
The system displays iSCSI card information, including:
• Name
• World Wide Name
• Type: of object (iSCSI IO card)
• Description
• Fault Domain
• iSCSI Qualified Name (IQN): for the card
• Physical Port Association that can have the following values:
• Preferred: The Virtual Port is currently connected to the Preferred Physical Port
• Not Preferred: The Virtual Port is not currently connected to the Preferred Physical
Port (words are yellow - causes warning icon)
• Detached: The Virtual Port is not attached to any port (words are red - port is down).
• Current Physical Port
• Preferred Physical Port
• Home Controller
• Initiator Count: Number of front end devices
• Target Count: Number of disk drives
• Both Count: Total of front-end devices and back-end disk drives
• Map Count: Number of volumes mapped to this system
Physical Port Virtual Port
