363
Enclosures

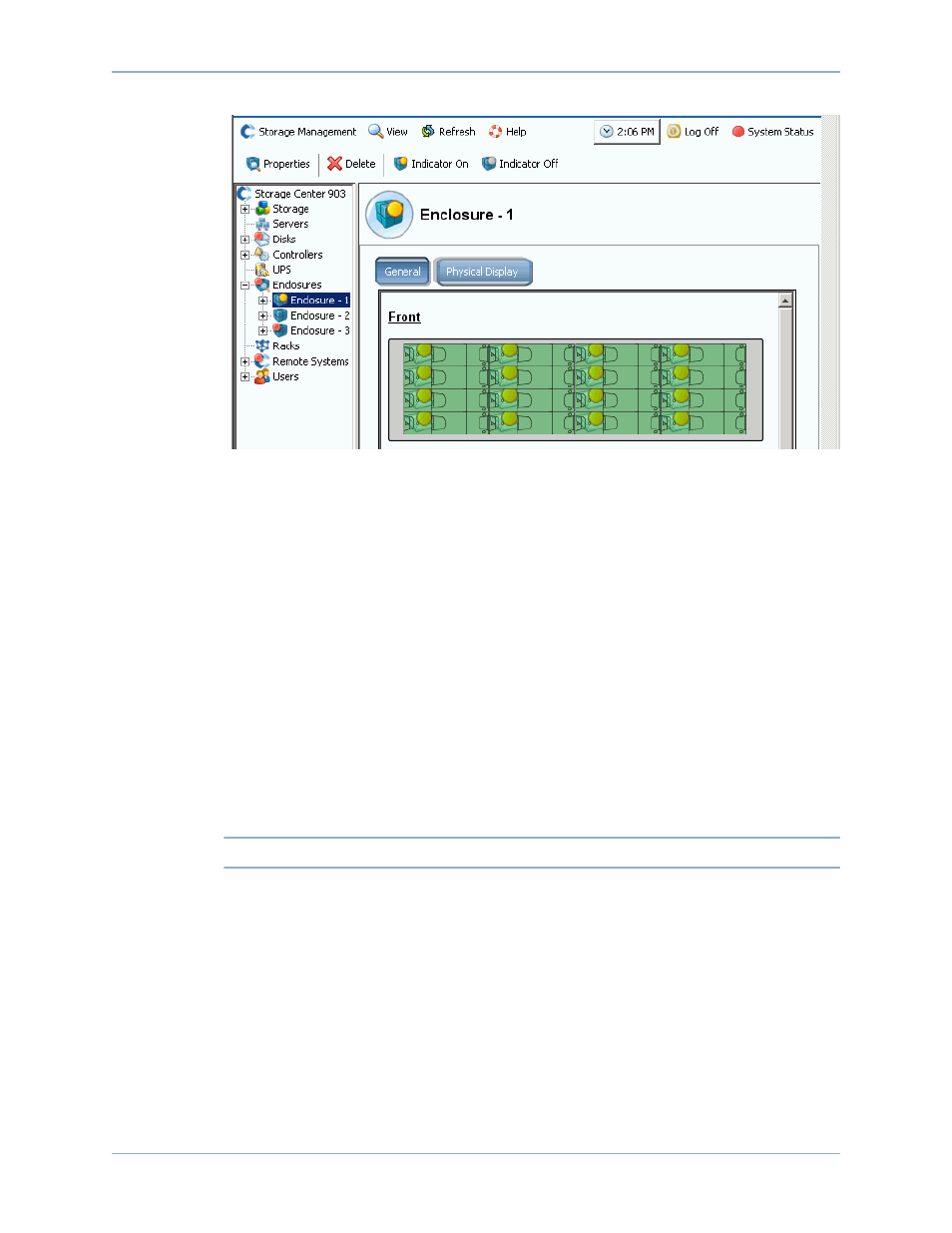

Figure 293. Enclosure Indicator Light On
The enclosure indicator light lights up every disk in the enclosure. To turn the indicator light
on just one disk:
1 In the Enclosures folder, select a disk.
2 Select the Indicator light. The light on that disk appears.
Renaming an Enclosure
1 In the system tree, select an enclosure.
2 From the shortcut menu, select Properties. The Enclosure Properties window
appears.
3 Enter a name in the User Alias field.
4 Click OK. The enclosure name is changed.
Removing an Enclosure
Note You cannot remove an active enclosure unless it is down or offline.
1 In the system tree, select an enclosure.
2 From the shortcut menu, select Delete. The enclosure is deleted from the system.
Viewing Back End Loops
1 From the View menu, select Enclosure Connectivity. The following window
displaying back end loops appears.
