Viewing SAS Cards
Viewing Individual SAS Ports
1 In the System Tree, select a SAS port.
2 In the SAS IO port window, select the Hardware tab. The SAS IO Port Hardware window
appears:

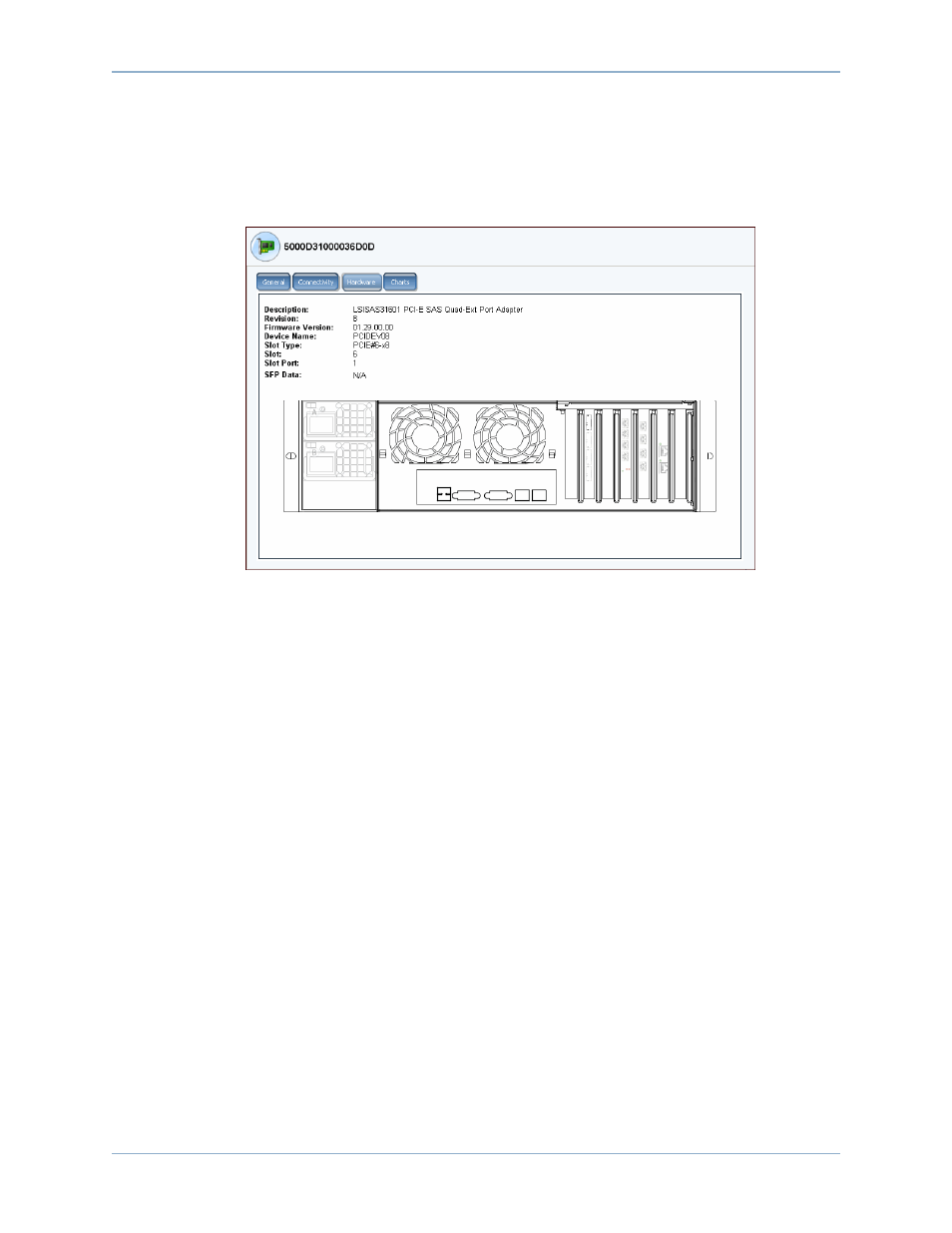

Figure 160. SAS Hardware
The window displays:
• Description: of the port
• Revision: of the port
• Firmware Version
• Device Name
• Slot Type: such as PCI-E
• Slot: numbered from left (6) to right (1)
• Slot Port: numbered from top (1) to bottom (4)
• SFP Data: data sent by Small Form-factor Pluggables (SFPs allow network
operators to connect different interface types to the same network equipment via an
SFP port.)
3 The port location is highlighted. Mousing over the port displays port name and type.
Right-click to open the shortcut menu, from which you can view Properties and status.
