347
Viewing Replications
Viewing Replications from a Source Volume
1 In the system tree, select a replication volume. The Volume Information window
appears.
2 Click the Replication tab. Replication information for that volume appears.

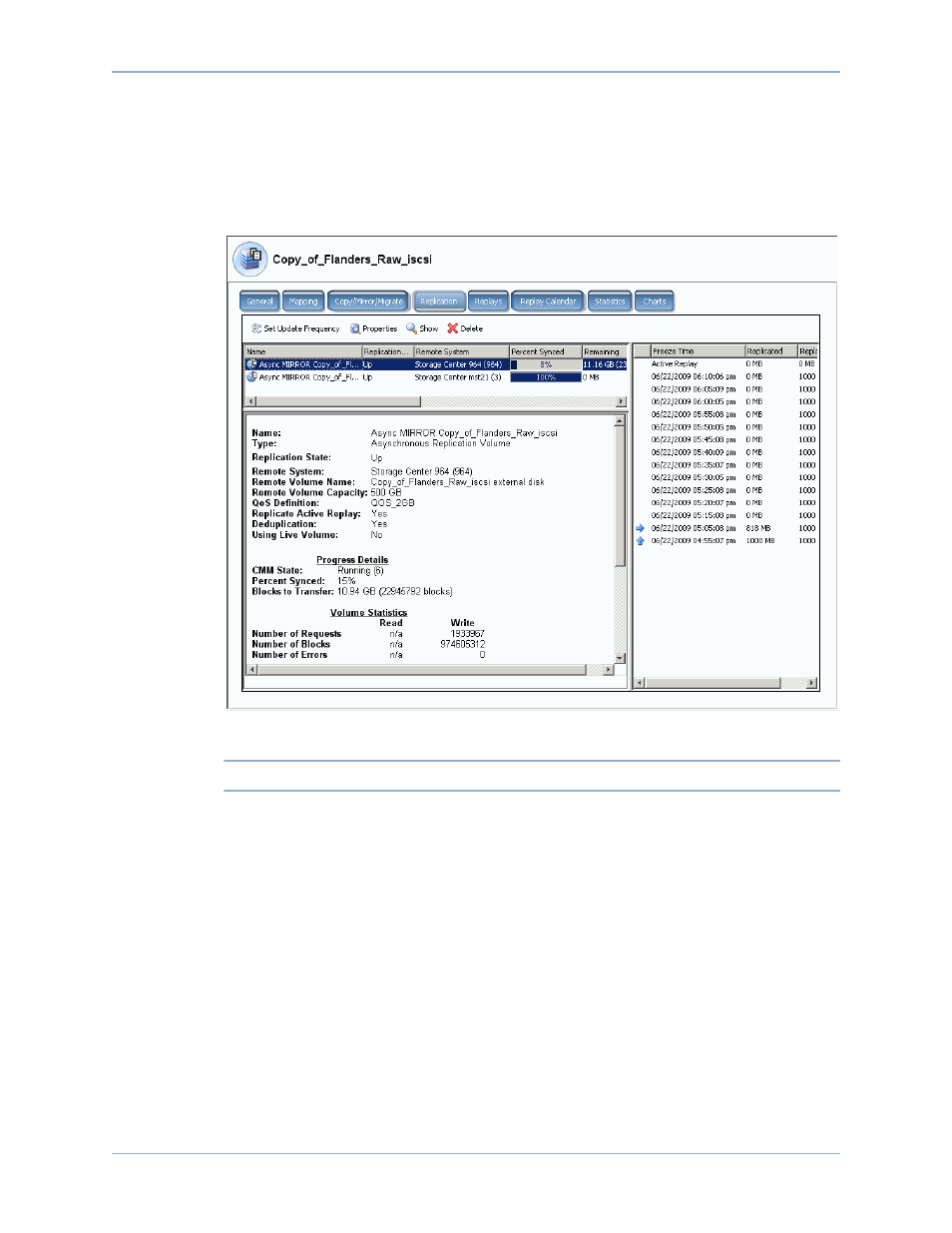

Figure 287. Volume Replication Information
Note The Replication tab appears only if the volume being replicated.
List of Replications
In the top frame, the System Manager displays a list of Replications for this volume. It is
being replicated to two different remote systems.
Replication Information
From the list of replications in the top frame, select a Replication. The main window displays
information about that Replication
Replication History
In the right frame, the System Manager displays the Replications that were taken of that
volume on the Remote system you selected from the List of Replications.
