205
Configuring Local Ports

To edit a fault domain
1 On the Configure Local Ports dialog, click Edit Fault Domains to open the Edit Fault
Domains dialog for the selected transport type.

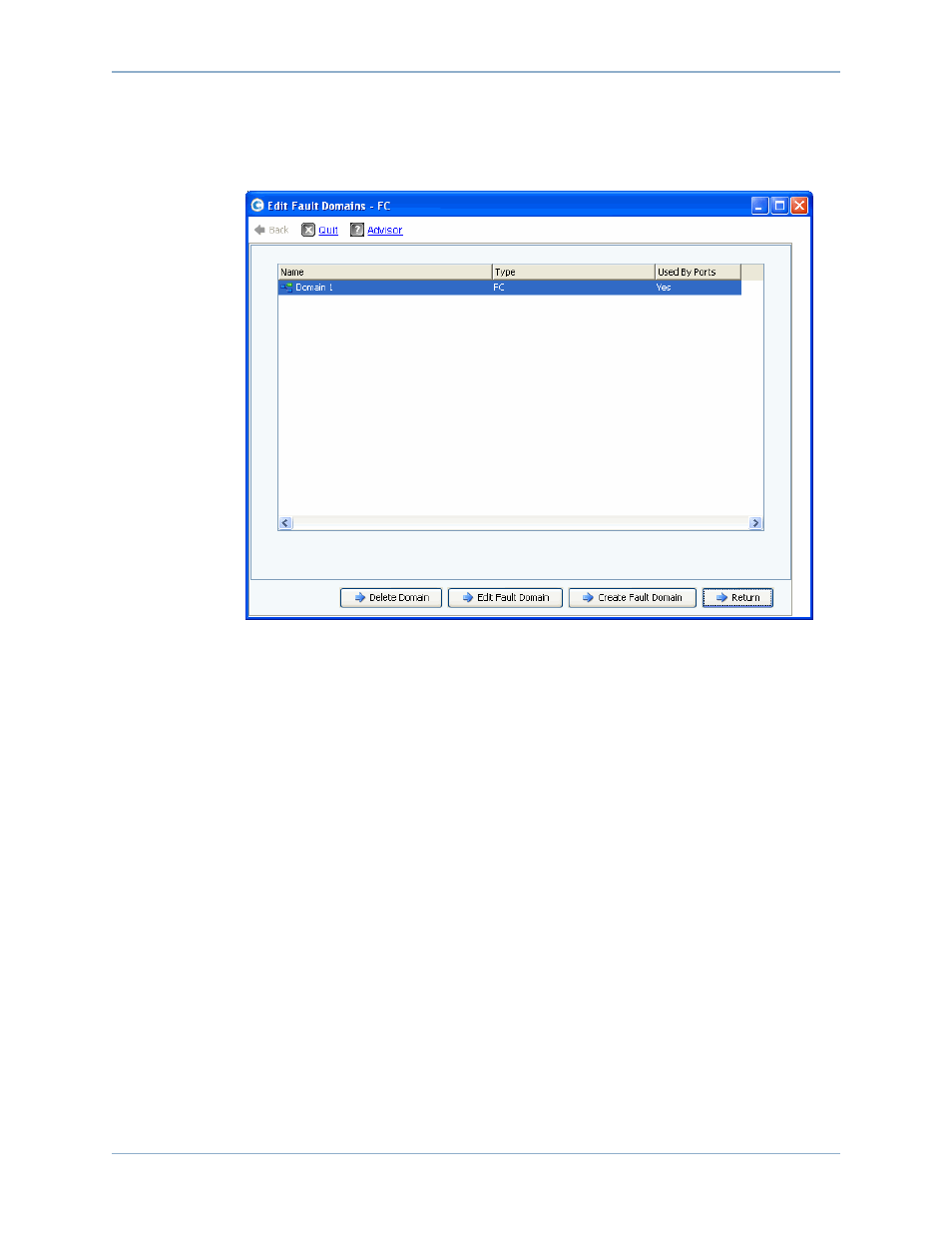

Figure 169. Edit Fault Domains (Fibre Channel example)
From this window, you can:
• Delete Domain deletes an existing Fault Domain after you confirm the deletion. Or,
returns an error message if the Fault Domain is being used by a local port and cannot
be deleted.
• Edit Fault Domain opens the Fault Domain Properties window that allows you to enter
a new domain name and optional notes for the domain. If the transport type is iSCSI,
the Fault Domain Properties window displays an IP Settings tab on which you can
view and reset:
• IP Address (for the Control Port of the new iSCSI Fault Domain)
• Net Mask
• Gateway
• Port Number
• Create Fault Domain opens the Create Fault Domain window shown in Figure 170 on
page 206 .
• Return closes the Edit Fault Domains wizard.
