Dell Compellent Series 30 User Manual
Page 185
177
Creating a Remote Storage Center Connection

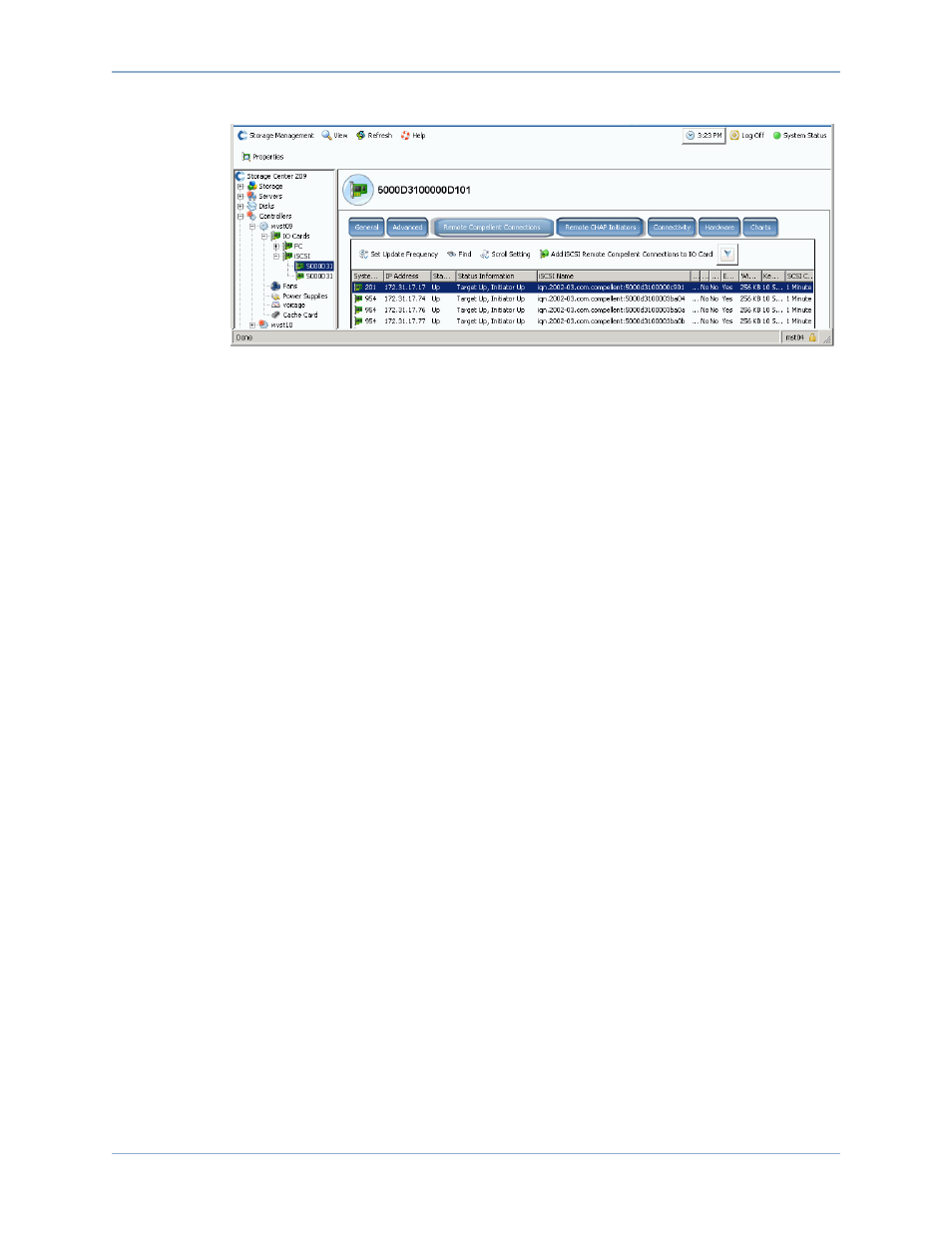

Figure 145. Non-Virtual Remote Compellent iSCSI Connections
3 For iSCSI remote Compellent connections, the system displays:
•
System Name
•
IP Address
•
Status: Up, Down, or Discovery. Discovery is a user-created object used to
configure the fully qualified remote connections that include the iSCSI name. Ignore
the Discovery connection.
•
Status information, including:
•
Total List Is:
•
Target Up, Initiator Up
•
Target Up, Initiator Down
•
Target Up, No Initiator
•
Target Down, Initiator Up
•
Target Down, Initiator Down
•
Target Down, No Initiator
•
No Target, Initiator Up
•
No Target, Initiator Down
•
No Target, No Initiator
•
iSCSI Name
•
Information that is added in the Advanced window (refer to
Remote Connection Properties on page 178
•
Information that is added in the Remote Connection IP address window
•
Information that is added in the Remote iSCSI CHAP Secret window. Refer to
Configuring Remote Connections Using CHAP on page 181
.
Viewing Remote iSCSI Connections – Virtual Ports Enabled
1 In the system tree, select an iSCSI card. The iSCSI information window appears.
2 Click the Remote Compellent Connections tab. The Remote Compellent iSCSI
Connections window that appears varies only slightly from the display for non-virtual
ports.
