157
Viewing FC Folders and Cards
Viewing FC IO Card Properties

To view FC IO card properties – physical ports
1 In the system tree, select an FC card.
2 From the shortcut menu, select Properties. The FC IO Card Properties window
appears:

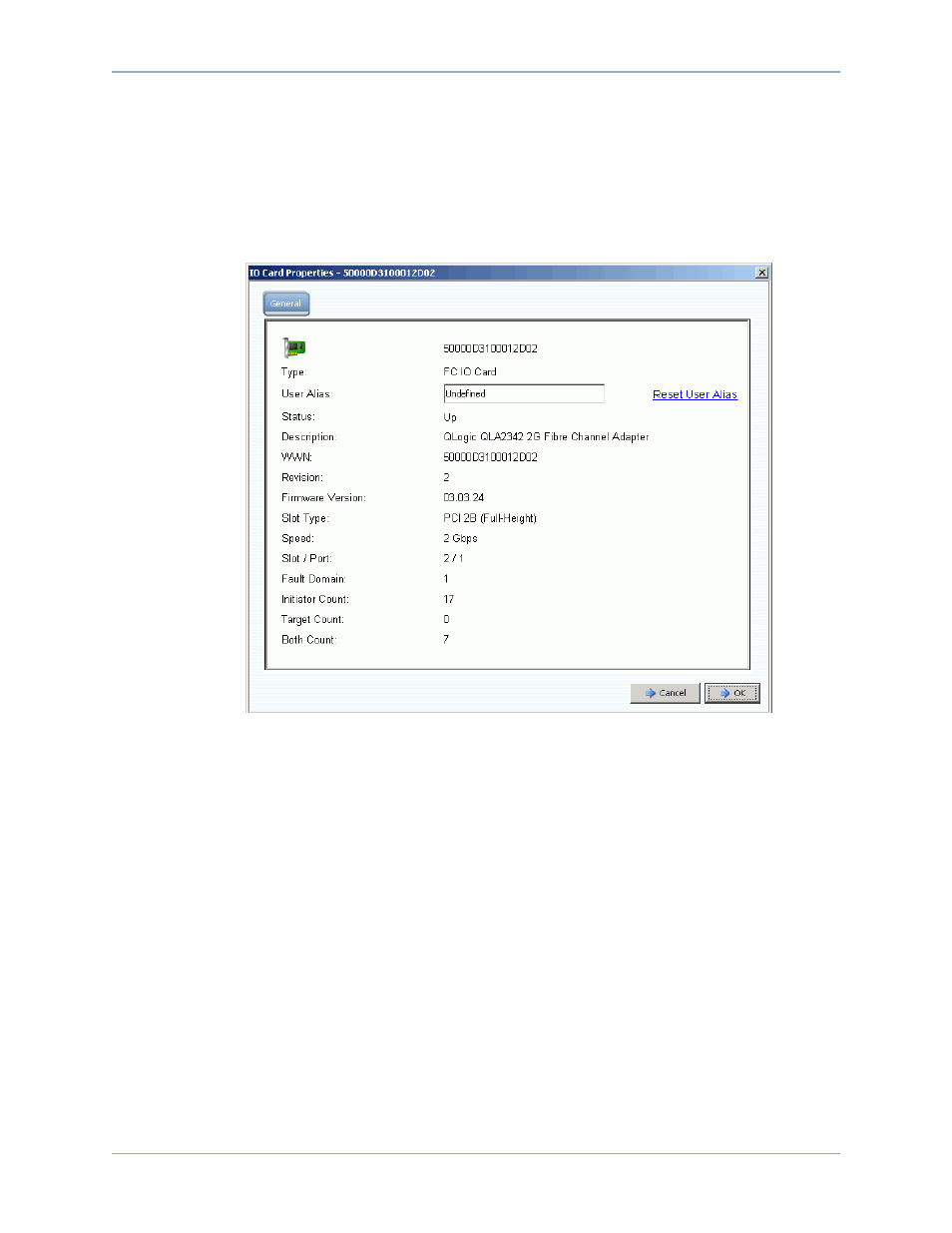

Figure 125. FC IO Card Properties
The window displays:
• World Wide Name (WWN)
• Card type
• User Alias: If any and ability to reset the user alias
• Status: Up or Down
• Description, revision, firmware version
• Slot type, speed, slot, slot port
• Fault Domain
• Counts: Initiator, Target, and Both Count
